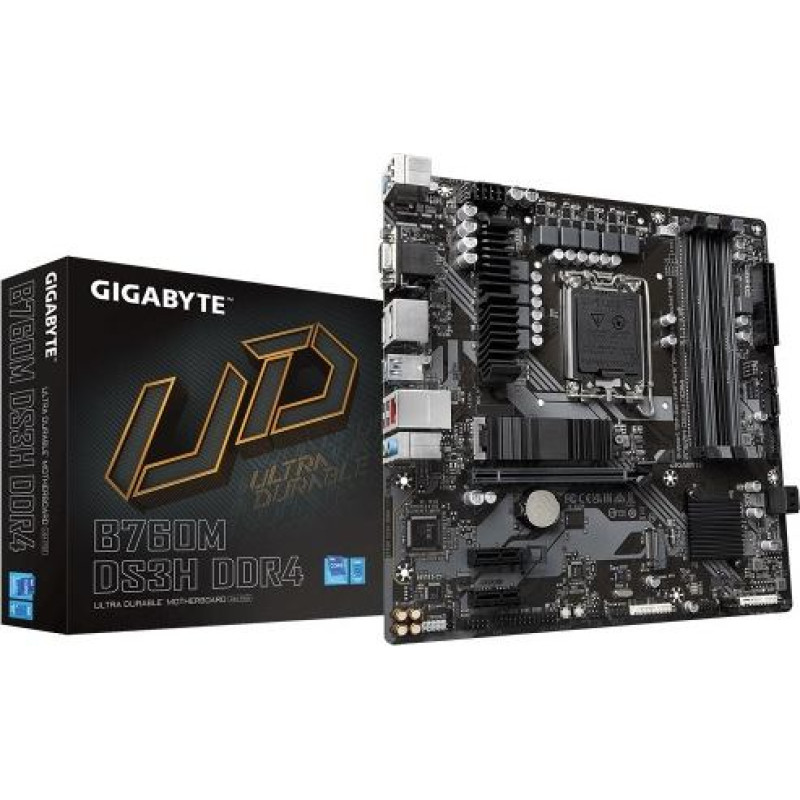

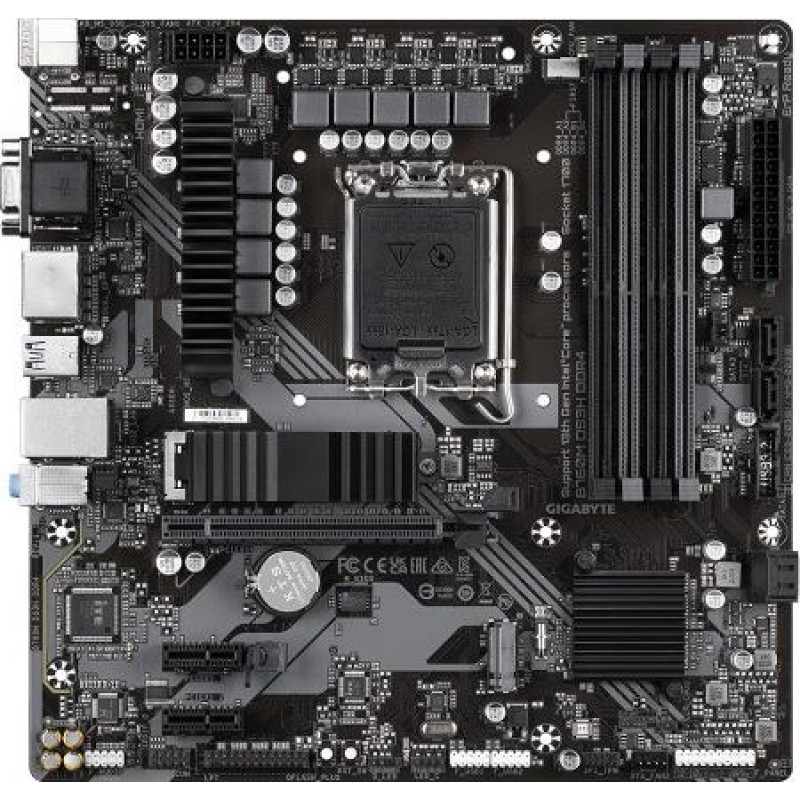

Gigabyte Motherboard B760M DS3H DDR4 s1700 DDR4 2DP/HDMI mATX

GIGABYTE

Gigabyte Motherboard B760M DS3H DDR4 s1700 DDR4 2DP/HDMI mATX

Delivery to the store takes 3 - 7 business days.
ID: 170527
Product Code: B760M DS3H DDR4
Barcode 4719331850876
94.56€
(Ex Tax: 76.25€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAIIEB760U04
svītrkods: 4719331850876
Description
SKUKBGBAIIEB760U04
Barcode4719331850876
ModelB760M DS3H DDR4
CPU socketLGA1700
Processor familyIntel Core i7
Processor familyIntel Core i9
Processor familyIntel Pentium
Processor familyIntel Core i3
Processor familyIntel Core i5
Processor familyIntel Celeron
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel RTP-H (700)/B760
Memory typeDDR4
Number of DDR4 slots4
Memory bus frequency3200 MHz
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces2 x M.2 2280 4 x SATA 6Gb/s
GraphicsIntegrated with the processor Intel DVMT (Dynamic Video Memory Technology) DirectX 12
Sound cardRealtek ALC897 S/PDIF out 7.1 channel
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceLAN: Realtek RTL8125
USB ports at back panel6
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports1
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portYes
External connectors2 x DisplayPort
External connectors3 x USB 3.0
External connectors2 x USB 2.0
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x Line In
External connectors1 x USB 3.1 Type-C
External connectors1 x HDMI
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors4 x USB 2.0/1.1
Onboard connectors2 x USB 3.0 header
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors1 x Q-Flash Plus button
Onboard connectors1 x Serial port header
Onboard connectors1 x Parallel port header
Onboard connectors1 x S/PDIF Out header
Onboard connectors1 x Reset button
Onboard connectors1 x Flex Key pin
Onboard connectors2 x M.2
Onboard connectors1 x Front panel audio header
Onboard connectors1 x 8pin 12V power
Form factormicro ATX
Dimensions244 x 244 mm
Other information2 x PCI Express x1 slot 1 x PCI Express x16/x8 slot
DesignationCE+WEEE
