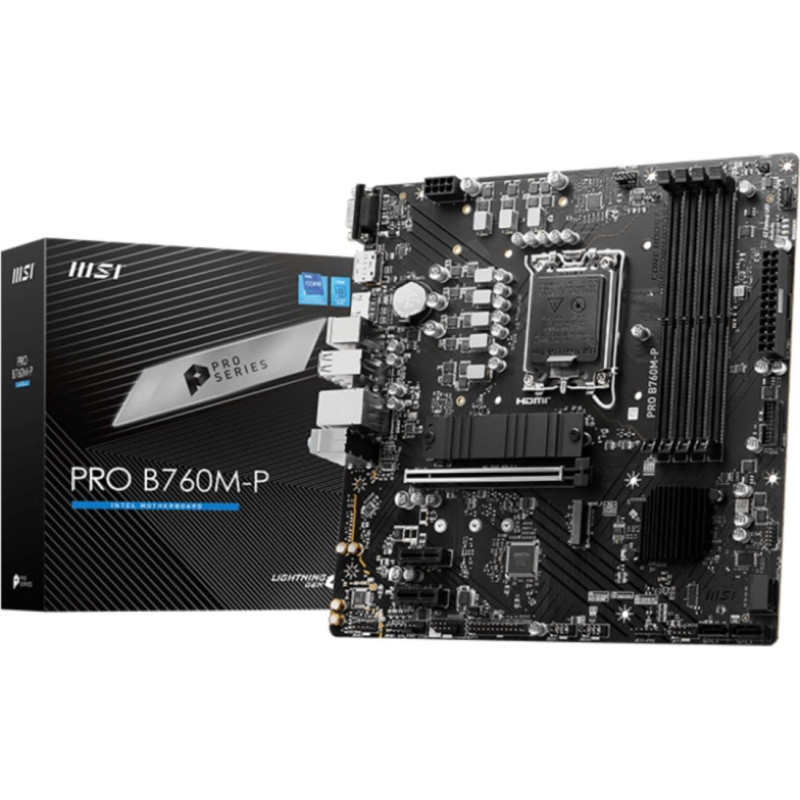

MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX

MSI

MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX

Delivery to the store takes 3 - 7 business days.
ID: 170899
Product Code: 7E02-009R
Barcode 4711377086578
102.47€
(Ex Tax: 82.64€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsLGA 1700
Compatible processor seriesIntel® Pentium® Gold
Processor manufacturerIntel
Processor socketLGA 1700
Audio chipRealtek ALC897
Audio output channels7.1 channels
Motherboard form factormicro ATX
Motherboard chipsetIntel B760
Windows operating systems supportedWindows 11 x64
Motherboard chipset familyIntel
Power source typeATX
ECC сompatibilityNon-ECC
Supported memory clock speeds6600
Maximum internal memory192 GB
Unbuffered memoryYes
Supported memory typesDDR5-SDRAM
Number of memory slots4
Depth243.8 mm
Width243.8 mm
LAN controllerRealtek RTL8111H
Ethernet LANYes
Wi-FiNo
Ethernet interface typeGigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 2.0 connectors4
Number of COM connectors1
Front panel connectorYes
Front panel audio connectorYes
Number of SATA III connectors4
Parallel connectorYes
Chassis intrusion connectorYes
RGB LED pin headerYes
CPU fan connectorYes
ATX Power connector (24-pin)Yes
TPM connectorYes
Clear CMOS jumperYes
BIOS typeUEFI AMI
Cables includedSATA
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSATA III
RAID levels1
Number of HDDs supported4
RAID supportYes
Number of storage drives supported6

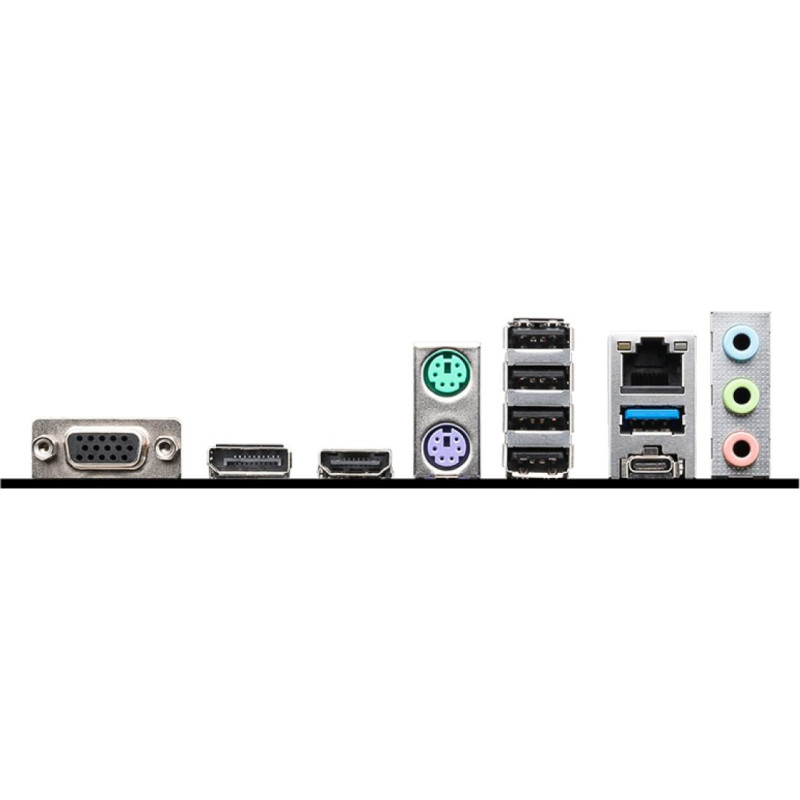

DisplayPorts quantity1
HDMI version1.4
VGA (D-Sub) ports quantity1
Line-inYes
Ethernet LAN (RJ-45) ports1
Headphone outputs1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 2.0 ports quantity4
HDMI ports quantity1
DisplayPort version1.4
PS/2 ports quantity2
Microphone inYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
PCI Express x16 (Gen 4.x) slots1
PCI Express x1 (Gen 4.x) slots2
WarningsAvoid direct contact with electronics to prevent electrostatic damage.
