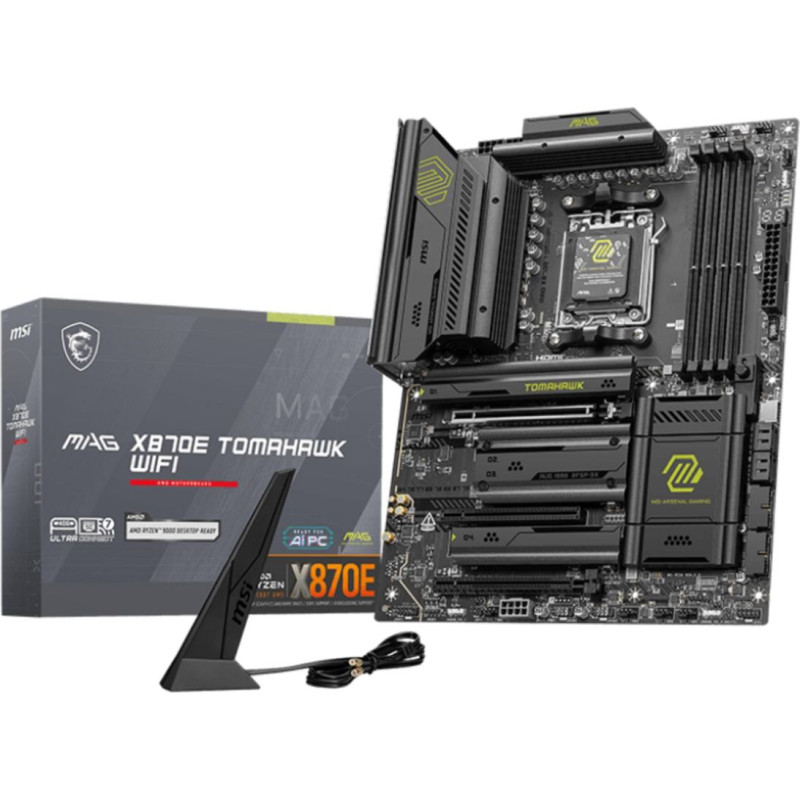

MSI MAG X870E TOMAHAWK WIFI motherboard AMD X870E Socket AM5 ATX

MSI

MSI MAG X870E TOMAHAWK WIFI motherboard AMD X870E Socket AM5 ATX

Delivery to the store takes 3 - 7 business days.
ID: 170903
Product Code: MAG X870E TOMAHAWK WIFI
Barcode 4711377291927
304.95€
(Ex Tax: 245.92€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 7000 Series
Processor socketSocket AM5
Maximum internal memory supported by processor256 GB
Supported processor socketsSocket AM5
On-board graphics cardNo
Motherboard chipsetAMD X870E
Product colourBlack
Audio output channels7.1 channels
Motherboard chipset familyAMD
Motherboard form factorATX
PC health monitoringCPU
Supported memory clock speeds8400 MHz
Maximum internal memory256 GB
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots4
ECC сompatibilityNon-ECC
Supported memory clock speed (max)8400 MHz
Width243.8 mm
Depth304.8 mm
BluetoothYes
LAN controllerRealtek RTL8126
Bluetooth version5.4
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Ethernet interface type5 Gigabit Ethernet
Wi-Fi standards802.11a
Ethernet LANYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
EPS power connector (8-pin)Yes
Number of SATA III connectors4
Total number of SATA connectors4
USB 2.0 connectors4
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
CPU fan connectorYes
ATX Power connector (24-pin)Yes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Number of storage drives supported8
Number of HDDs supported4
S/PDIF out portYes
DisplayPort version1.4
USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
DisplayPorts quantity2
Microphone inYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
HDMI version2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB4 Gen 2x2 ports quantity1
4th M.2 highest PCI Express generation4.0
Number of M.2 (M) slots4
PCI Express x16 (Gen 4.x) slots1
2nd M.2 highest PCI Express generation5.0
2nd M.2 largest key size2280
1st M.2 largest key size22110
3rd M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
PCI Express x16 (Gen 3.x) slots1
4th M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
PCI Express x16 (Gen 5.x) slots1
WarningsAvoid contact with liquids to prevent electronic damage.
