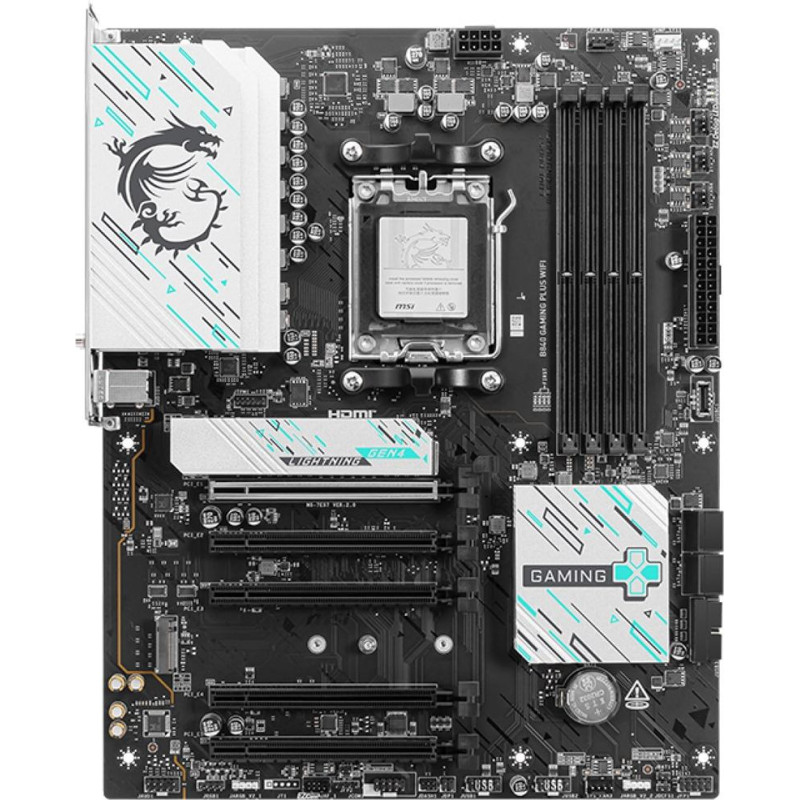

MSI B840 GAMING PLUS WIFI motherboard AMD B840 Socket AM5 ATX

MSI

MSI B840 GAMING PLUS WIFI motherboard AMD B840 Socket AM5 ATX

Delivery to the store takes 3 - 7 business days.
ID: 170906
Product Code: B840 GAMING PLUS WIFI
Barcode 4711377286589
151.32€
(Ex Tax: 122.03€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsSocket AM5
Compatible processor seriesAMD Ryzen 9000 Series
Processor manufacturerAMD
Maximum internal memory supported by processor256 GB
Processor socketSocket AM5
On-board graphics cardNo
Audio output channels7.1 channels
Motherboard form factorATX
Motherboard chipsetAMD B840
Audio chipRealtek ALC897
Product colourBlack
Motherboard chipset familyAMD
Windows operating systems supportedWindows 11 x64
PC health monitoringVoltage
Supported memory clock speeds8000 MHz
Maximum internal memory256 GB
Memory channelsDual-channel
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Supported memory clock speed (max)8000 MHz
Number of memory slots4
ECC сompatibilityNon-ECC
Depth304.8 mm
Width243.8 mm
Wi-Fi standards802.11g
BluetoothYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Ethernet LANYes
Wi-FiYes
Ethernet interface type2.5 Gigabit Ethernet
Bluetooth version5.4
Total number of SATA connectors4
Number of chassis fan connectors5
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 2.0 connectors4
Number of SATA III connectors4
RGB LED pin headerYes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of CPU fan connectors1
Number of RGB LED pin headers3
Number of water pump connectors1
BIOS typeUEFI AMI
RAID levels1
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, Micro SATA III
RAID supportYes
Number of storage drives supported6
Number of HDDs supported4
HDMI version2.1
USB 2.0 ports quantity4
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
PCI Express x16 (Gen 3.x) slots4
Number of M.2 (M) slots2
PCI Express x16 (Gen 4.x) slots1
2nd M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size22110
WarningsDispose of in accordance with local regulations for electronic waste.
