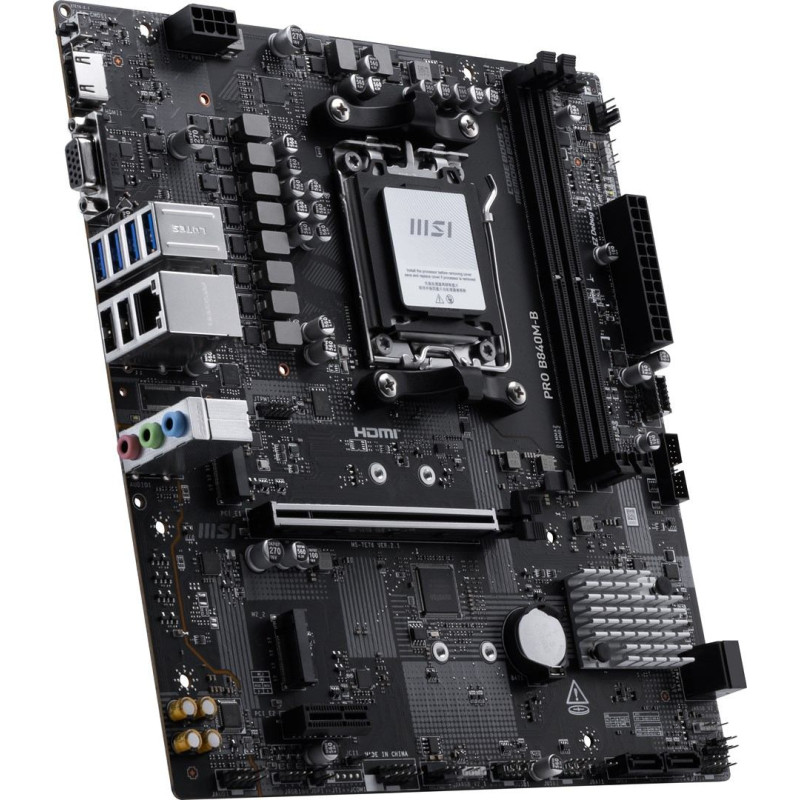

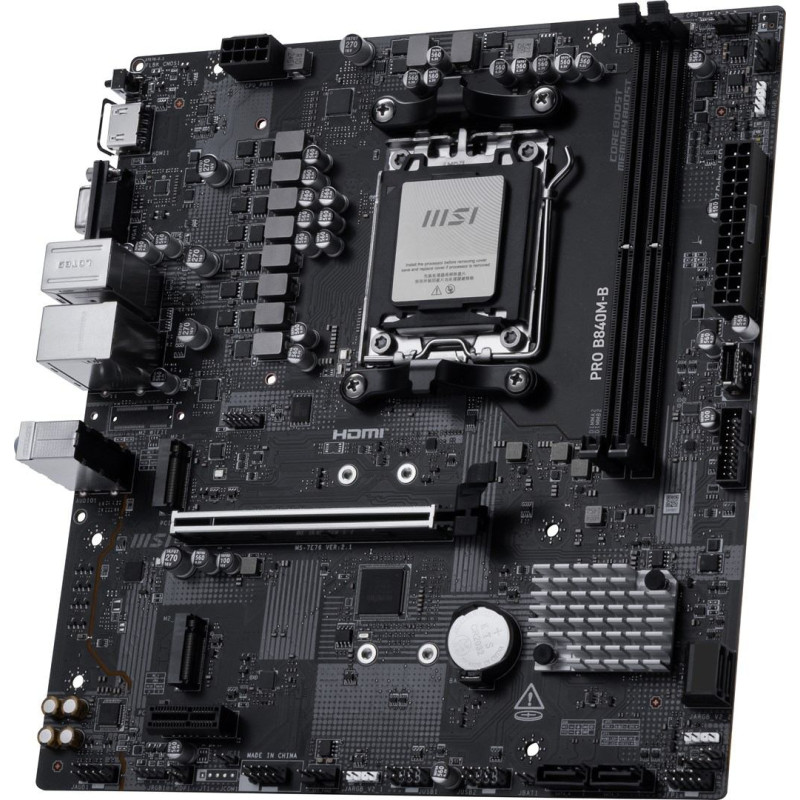

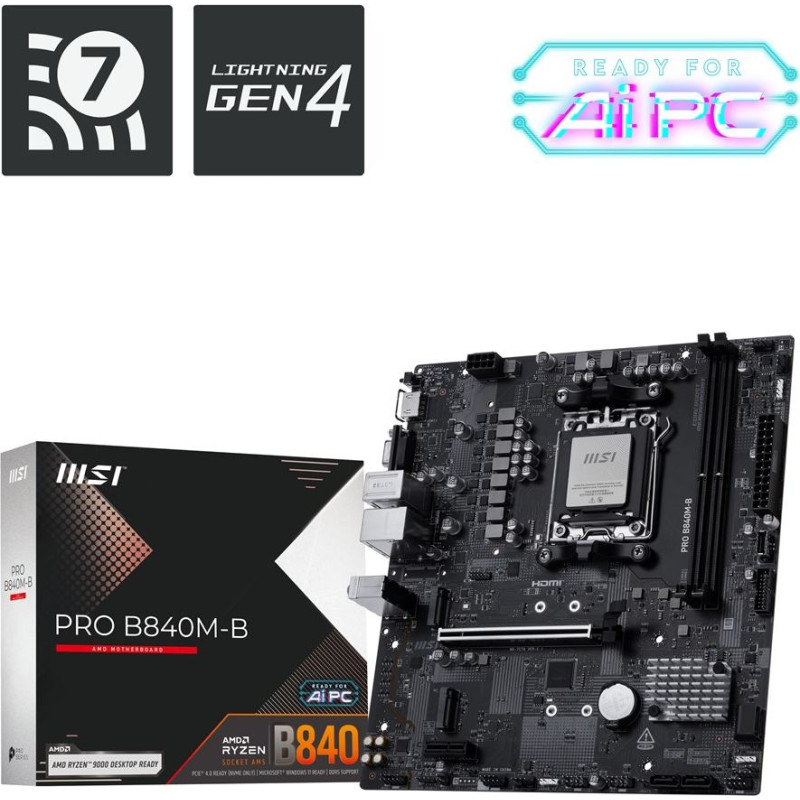

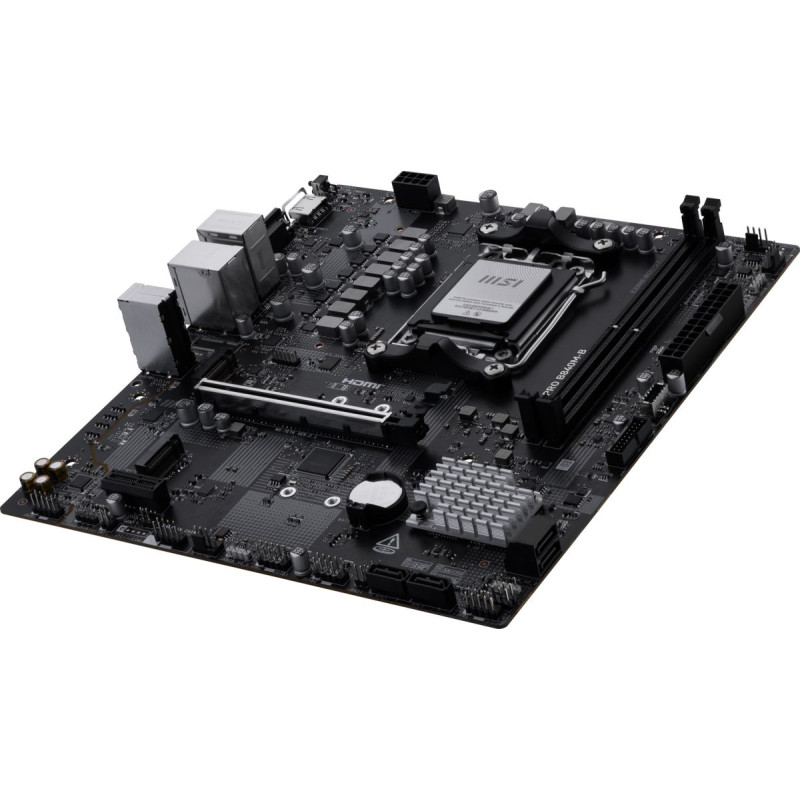

MSI PRO B840M-B motherboard AMD B840 Socket AM5 micro ATX

MSI

MSI PRO B840M-B motherboard AMD B840 Socket AM5 micro ATX

Delivery to the store takes 3 - 7 business days.
ID: 170907
Product Code: PRO B840M-B
Barcode 4711377360166
94.36€
(Ex Tax: 76.10€)
Payment options

Delivery options

omniva  venipak



Description
Description
Compatible processor seriesAMD Ryzen 7000 Series
Processor manufacturerAMD
Supported processor socketsSocket AM5
Processor socketSocket AM5
Motherboard chipset familyAMD
Windows operating systems supportedWindows 11 x64
Product colourBlack
Audio chipRealtek ALC897
Audio output channels7.1 channels
Motherboard chipsetAMD B840
Motherboard form factormicro ATX
Number of memory slots2
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
ECC сompatibilityNon-ECC
Memory slots typeDIMM
Supported memory clock speeds5600
Maximum internal memory128 GB
Supported memory clock speed (max)8000 MHz
Depth243.8 mm
Width226 mm
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125D
Number of SATA III connectors4
RGB LED pin headerYes
Number of CPU fan connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Total number of SATA connectors4
Number of RGB LED pin headers3
USB 2.0 connectors4
RAID supportYes
Number of HDDs supported4
Supported storage drive interfacesM.2, SATA III
Number of storage drives supported6
Supported storage drive typesHDD & SSD
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
HDMI version2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
VGA (D-Sub) ports quantity1
HDMI ports quantity1
Number of M.2 (M) slots2
1st M.2 largest key size2280
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
1st M.2 highest PCI Express generation4.0
