Home Computers and equipment Computer components Motherboard Gigabyte H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

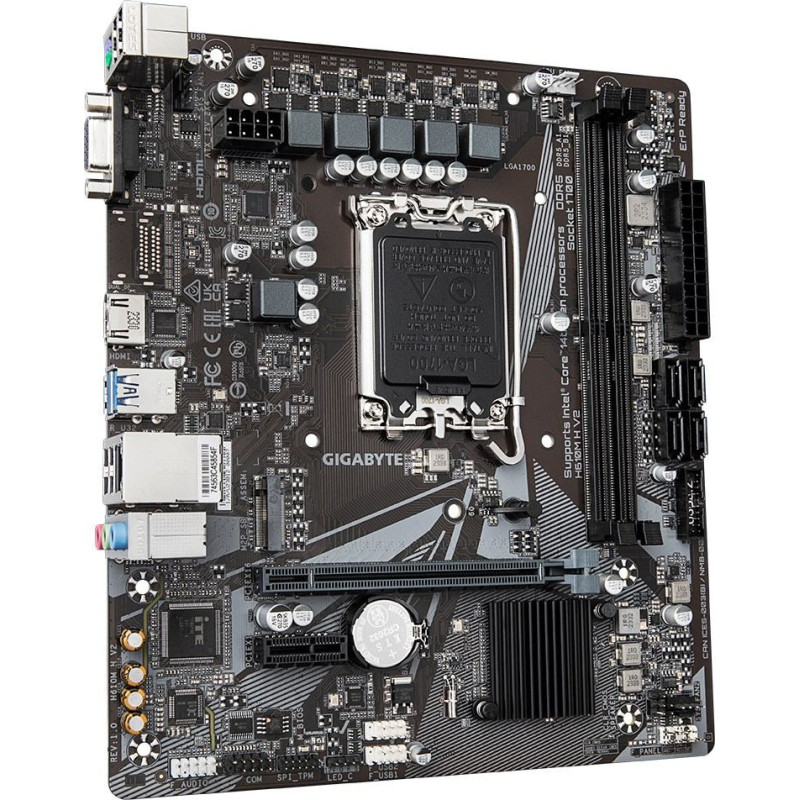

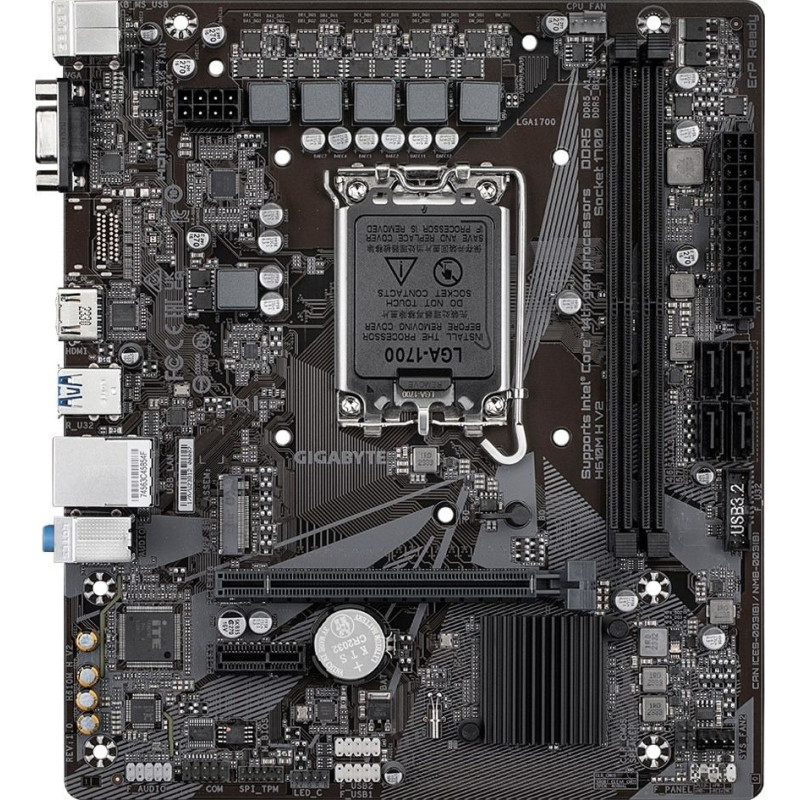

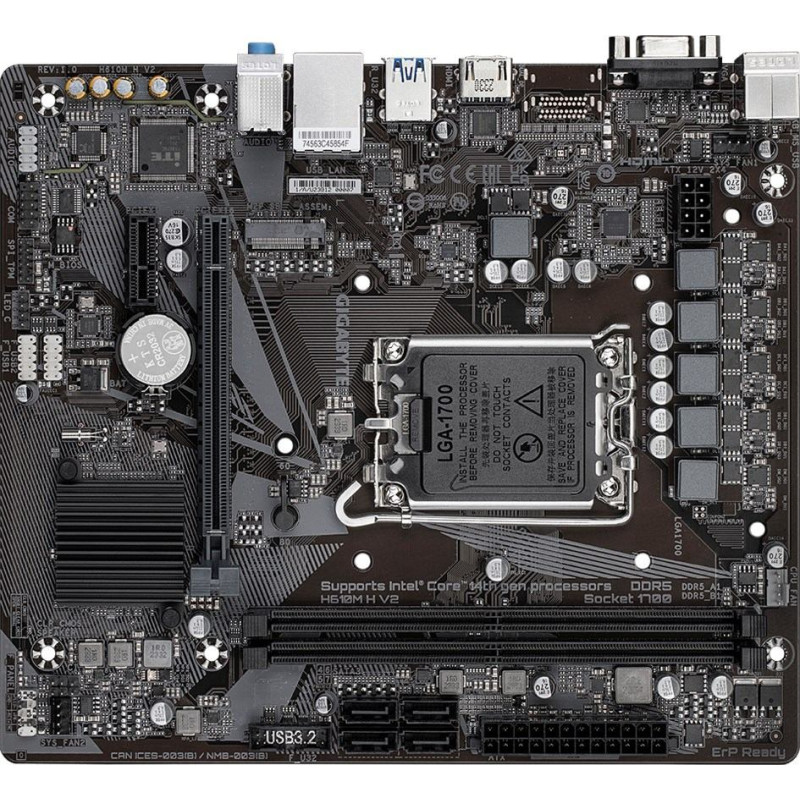

Gigabyte H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

GIGABYTE

Gigabyte H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

Delivery to the store takes 3 - 7 business days.
ID: 170966
Product Code: H610M H V2
Barcode 4719331859985
66.54€
(Ex Tax: 53.66€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Supported processor socketsLGA 1700
Processor socketLGA 1700
Compatible processor seriesIntel® Core™ i5
Maximum internal memory supported by processor96 GB
Processor manufacturerIntel
Maximum resolution4096 x 2304 pixels
HDCPYes
Parallel processing technology supportNot supported
Graphics cardHD Graphics
Graphics card familyIntel
PC health monitoringTemperature
Audio output channels7.1 channels
Windows operating systems supportedWindows 11 x64
Cooling typeActive
Motherboard chipsetIntel H610 Express
Motherboard form factormicro ATX
Power source typeATX
Motherboard chipset familyIntel
Product colourBlack
Audio chipRealtek ALC897
Supported memory clock speeds5200
ECC сompatibilityECC & Non-ECC
Unbuffered memoryYes
Maximum internal memory96 GB
Supported memory module capacities2GB
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Number of memory slots2
Supported memory clock speed (max)5600 MHz
Depth196 mm
Height35 mm
Width230 mm
Ethernet LANYes
Wi-FiNo
Ethernet interface typeGigabit Ethernet
USB 2.0 connectors2
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Serial port headers1
ATX Power connector (24-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
TPM connectorYes
CPU fan connectorYes
Front panel connectorYes
Number of SATA III connectors4
RGB LED pin headerYes
12V power connectorYes
Clear CMOS buttonYes
BIOS typeUEFI AMI
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
Package weight694 g
Package width265 mm
Package height54 mm
Package depth265 mm
Bundled softwareNorton Internet Security (OEM version) LAN bandwidth management software
Cables includedSATA
Batteries includedYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported1
Number of storage drives supported5
USB connector typeUSB Type-A
DisplayPorts quantity2
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 2.0 ports quantity4
DVI-D ports quantity1
Headphone outputs3
Microphone inYes
PS/2 ports quantity1
HDMI ports quantity1
VGA (D-Sub) ports quantity1
PCI Express x16 slots1
Number of M.2 (M) slots1
PCI Express x1 slots1
Lithium weight per battery0.07 g
Battery typeCR2032
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Number of battery cells1
Battery weight3 g
Country of originChina
Products per shipping (inner) case1 pc(s)
