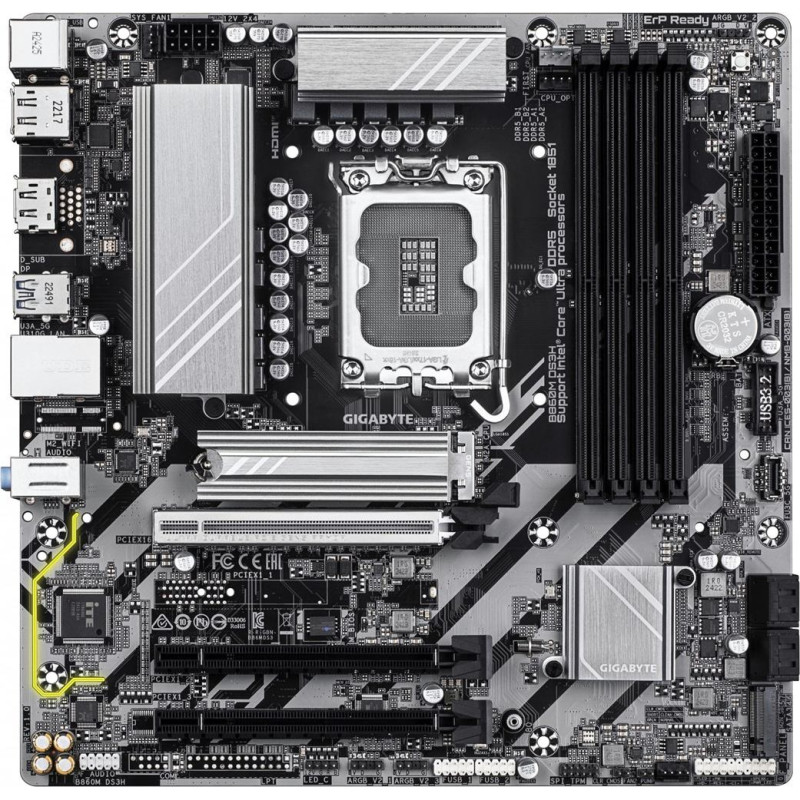

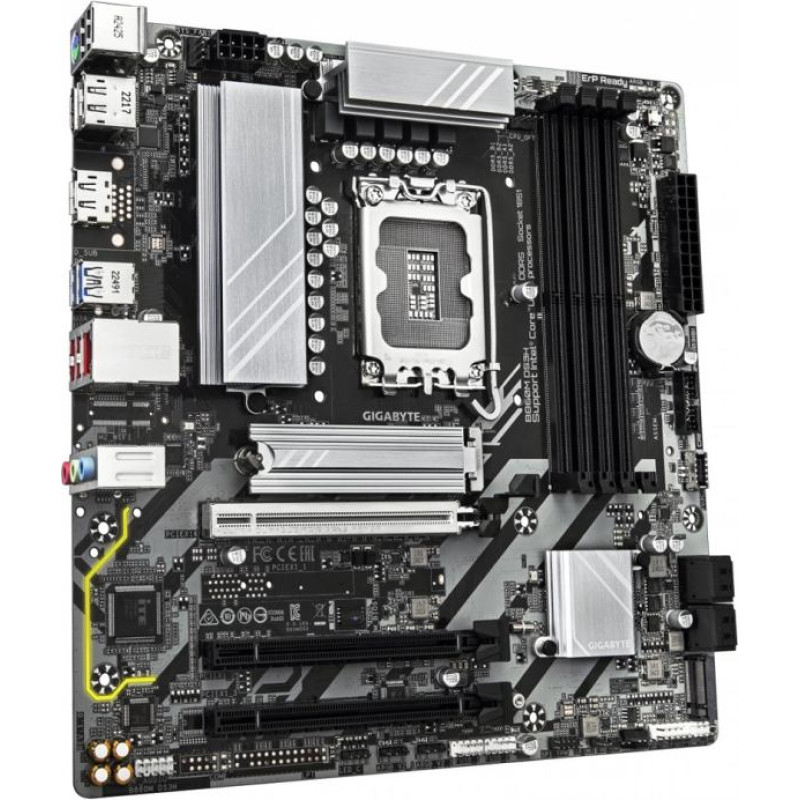

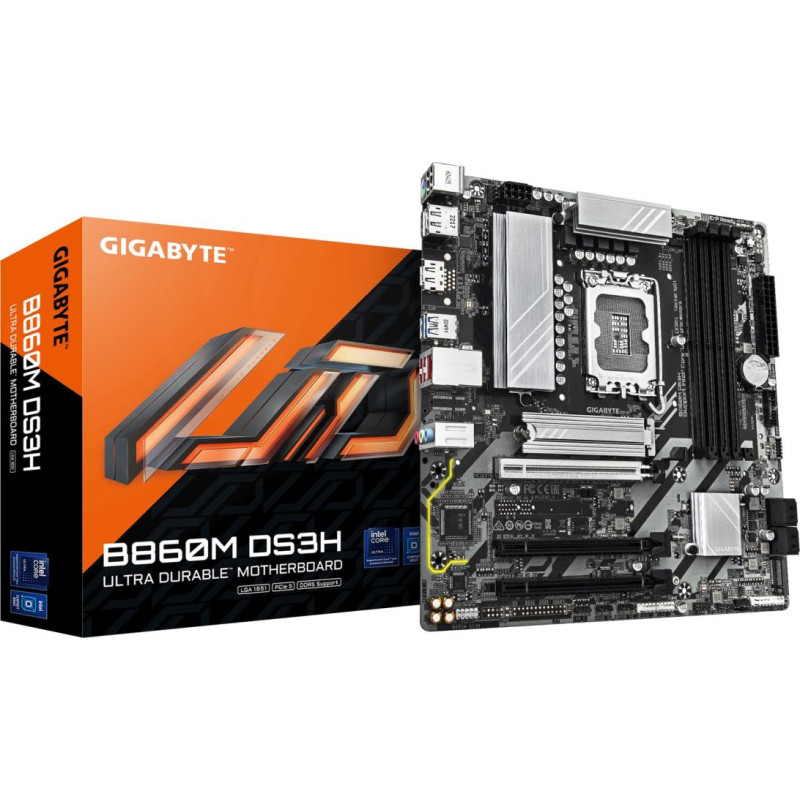

Home Computers and equipment Computer components Motherboard Gigabyte B860M DS3H Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
Gigabyte B860M DS3H Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2

GIGABYTE

Gigabyte B860M DS3H Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2

Delivery to the store takes 3 - 7 business days.
ID: 170967
Product Code: B860M DS3H
Barcode 4719331866709
135.83€
(Ex Tax: 109.54€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Supported processor socketsLGA 1851
Processor socketLGA 1851 (Socket V1)
Compatible processor seriesIntel® Core™ Ultra (Series 1)
Processor manufacturerIntel
Maximum resolution4096 x 2160 pixels
HDCPYes
Parallel processing technology supportNot supported
DirectX version12.0
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 x64
Motherboard form factormicro ATX
PC health monitoringWater cooling
Cooling typePassive
Audio chipRealtek ALC897
Motherboard chipsetIntel B860
Motherboard chipset familyIntel
Product colourDark brown
Power source typeATX
Unbuffered memoryYes
Supported memory clock speeds6400
Maximum internal memory256 GB
ECC сompatibilityECC & Non-ECC
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speed (max)9066 MHz
Maximum internal memory per slot64 GB
Width244 mm
Height35 mm
Depth244 mm
LAN controllerRealtek RTL8125
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiNo
Ethernet LANYes
Front panel audio connectorYes
EPS power connector (8-pin)Yes
Number of SATA III connectors4
CPU fan connectorYes
TPM connectorYes
USB 2.0 connectors2
ATX Power connector (24-pin)Yes
Number of chassis fan connectors2
Front panel connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
RGB LED pin headerYes
Number of EPS power connectors (8-pin)1
Number of water pump connectors2
Number of RGB LED pin headers4
Number of CPU fan connectors2
BIOS typeUEFI AMI
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
Package weight1.09 kg
Package width265 mm
Package depth265 mm
Package height54 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Batteries includedYes
Screws includedYes
RAID levels1
Supported storage drive interfacesM.2, SATA III
RAID supportYes
Supported storage drive typesHDD & SSD
Number of HDDs supported4
Number of storage drives supported6
DisplayPorts quantity2
DisplayPort version2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity3
HDMI version2.1
Microphone inYes
PS/2 ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
Headphone outputs1
HDMI ports quantity1
Line-inYes
Number of M.2 (M) slots2
1st M.2 highest PCI Express generation5.0
PCI Express x16 (Gen 4.x) slots5
2nd M.2 largest key size2280
1st M.2 largest key size2280
PCI Express x16 (Gen 5.x) slots1
2nd M.2 highest PCI Express generation4.0
Lithium weight per battery0.07 g
Battery typeCR2032
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery weight3 g
Weight1 kg
Country of originChina
Products per shipping (inner) case1 pc(s)
WarningsWhen disposing of the product, follow local regulations for the recycling of electronics.
