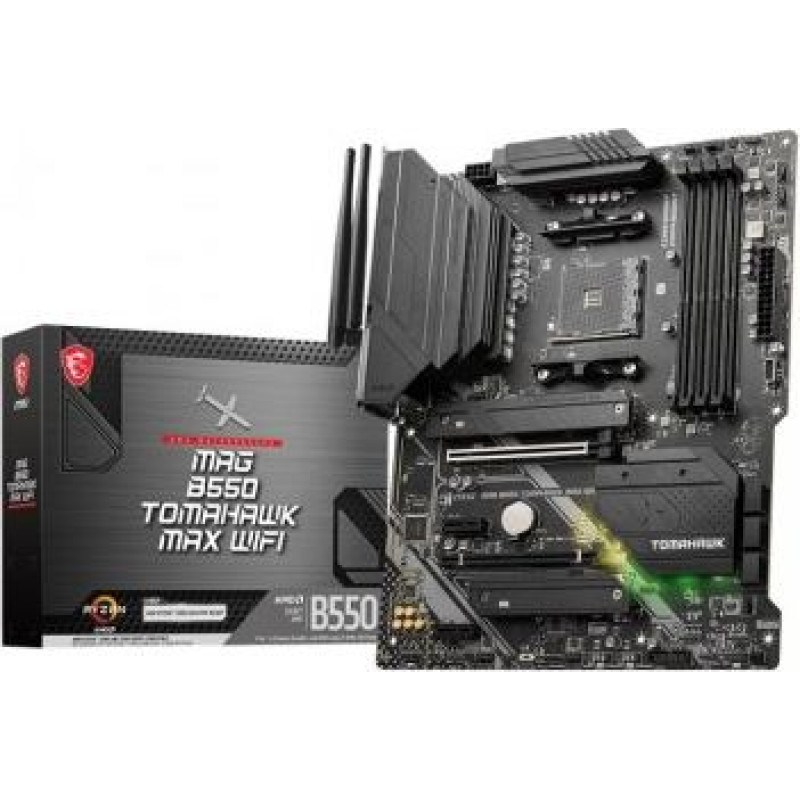

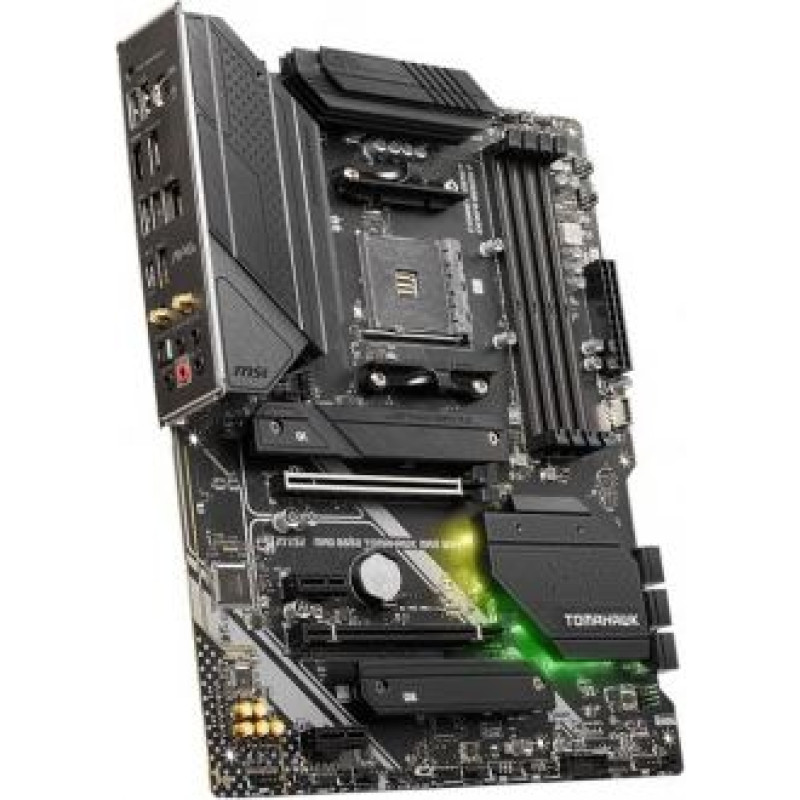

MSI Motherboard MAG B550 TOMAHAWK MAX WIFI AM4 4DDR4 HDMI/DP 2M.2 ATX

MSI

MSI Motherboard MAG B550 TOMAHAWK MAX WIFI AM4 4DDR4 HDMI/DP 2M.2 ATX

Delivery to the store takes 3 - 7 business days.
ID: 171351
Product Code: MAG B550 TOMAHAWK MAX WIFI
Barcode 4719072957957
149.82€
(Ex Tax: 120.83€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIAA7B550A07
svītrkods: 4719072957957
Description
SKUKBMSIAA7B550A07
Barcode4719072957957
ModelMAG B550 TOMAHAWK MAX WIFI
CPU socketSocket AM4
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen 9
Processor familyAMD Ryzen 3
Processor familyAMD Ryzen 5
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B550 Chipset
Memory typeDDR4
Number of DDR4 slots4
Memory bus frequency3200 MHz
Memory bus frequency3000 MHz
Memory bus frequency1866 MHz
Memory bus frequency2133 MHz
Memory bus frequency2400 MHz
Memory bus frequency2667 MHz
Memory bus frequency2800 MHz
Memory bus frequency2933 MHz
Memory bus frequency3066 MHz
Max memory size128
Expansion slots1 x PCIe 4.0 x 16
Expansion slots2 x PCIe 3.0 x 1
Expansion slots1 x PCIe 3.0 x 16
Max. number of SATA devices6
RAIDYes
Detailed data on disk/drive interfacesSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Graphics1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2 Support HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 Maximum shared memory of 16GB
Sound cardRealtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interfaceBluetooth
Network interfaceRealtek RTL8125B 2.5Gbps LAN controller
USB ports at back panel6
USB ports on motherboard10
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x USB 3.1 Type-C
External connectors1 x USB 3.1
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Side Speaker
External connectors1 x Rear Speaker
External connectors1 x RJ-45
External connectors1 x S/PDIF
External connectors2 x USB 2.0
External connectors2 x USB 3.0
External connectors1 x Flash BIOS Button
Onboard connectors1 x Clear CMOS button
Onboard connectors2 x System panel header
Onboard connectors1 x TPM header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x USB 2.0/1.1 header
Onboard connectors2 x M.2
Onboard connectors6 x SATA III 6Gb/s
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors1 x 4pin CPU fan
Onboard connectors6 x 4pin wentylator obudowy
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Form factorATX
Dimensions30.5 x 24.4 cm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
DesignationCE+WEEE
