Home Computers and equipment Computer components Motherboard Asus Motherboard ROG STRIX B850-A GAMING WIFI

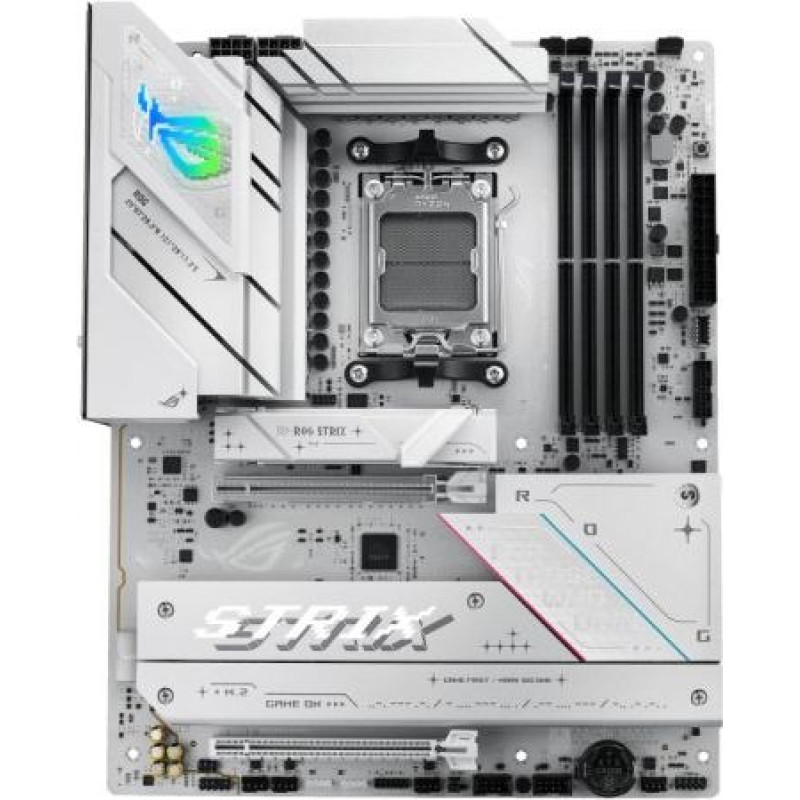

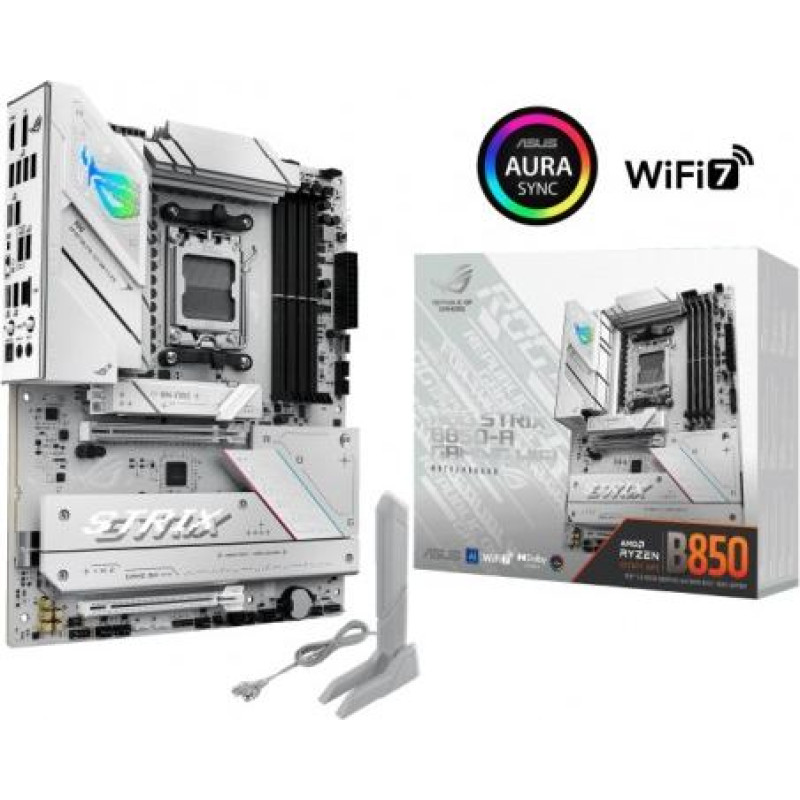

Asus Motherboard ROG STRIX B850-A GAMING WIFI

Asus Motherboard ROG STRIX B850-A GAMING WIFI

Delivery to the store takes 3 - 7 business days.
ID: 172111
Product Code: ROG STRIX B850-A GAMING WIFI
Barcode 4711387772676
291.76€
(Ex Tax: 235.29€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUAA8B850A00
svītrkods: 4711387772676
Description
SKUKBASUAA8B850A00
Barcode4711387772676
ModelROG STRIX B850-A GAMING WIFI
CPU socketSocket AM5
Processor familyAMD Ryzen 5
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen 9
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B850 Chipset
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8000 MHz
Max memory size192
Expansion slots4 x M.2
Expansion slots2 x PCIe 5.0 x16
Expansion slots1 x PCIe 4.0 x 16
Max. number of SATA devices2
RAIDYes
Detailed data on disk/drive interfacesAMD Ryzen 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)** M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4) 2 x SATA 6Gb/s ports * Specifications vary by CPU types. ** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled. AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
Graphics1 x DisplayPort* 1 x HDMI port** * Supports up to 8K@30Hz according to the DisplayPort 1.4 specification ** Supports 4K@60Hz according to the HDMI 2.1 specification *** VGA resolution support depends on the resolution of the processor or graphics card.
Sound cardROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* Impedance sensing for front and rear headphone outputs Supports: jack detection, streaming, and front-panel microphone jack remapping High-quality stereo playback output with a 120 dB SNR and recording input with a 110 dB SNR Supports playback up to 32-bit/384 kHz on the front panel Audio Features SupremeFX Shielding Technology Savitech SV3H712 Amplifier Rear Optical S/PDIF Output Premium Audio Capacitors Audio Shield *A chassis with a front-panel HD audio module is required for 7.1 Surround Sound audio output. **The rear-panel LINE OUT port does not support surround sound. To enjoy surround sound, connect your audio output device to the front-panel audio jack or use a USB audio device.
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interfaceBluetooth
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceEthernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
USB ports at back panel10
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports5
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x Flash BIOS Button
External connectors4 x USB 3.2 Gen 1 Type-A
External connectors2 x USB 3.2 Gen 2 Type-A
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x S/PDIF
External connectors2 x USB 2.0
External connectors1 x USB 3.2 Gen 2x2 Type-C
External connectors1 x USB 3.2 Gen 2 Type-C
External connectors1 x Przycisk Clear CMOS
External connectors1 x Wi-Fi Module
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1x CPU/DRAM overvoltage jumper
Onboard connectors3 x Addressable LED
Onboard connectors1 x Thermal sensor connector
Onboard connectors1 x Thunderbolt header
Onboard connectors1 x USB 3.2 Gen 2 Type-C
Onboard connectors2 x 8pin 12V
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors4 x M.2
Onboard connectors2 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.2 Gen 1 Type-A
Onboard connectors4 x 4pin Chassis fan
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Power button
Onboard connectors1 x System panel header
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Form factorATX
Dimensions30.5 cm x 24.4 cm
Accessories included2 x SATA 6Gb/s Cable ASUS WiFi Q-Antenna Cable Tie Pack M.2 Q-Latch Pack M.2 Q-Slide Pack ROG Keychain ROG Strix Stickers 4 x M.2 Rubber Bands Quick Start Guide
Supported operating systemsWindows 11
SoftwareROG-exclusive software ROG CPU-Z Dolby Atmos ASUS-exclusive software Armoury Crate - AIDA64 Extreme (60-day free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - HWiNFO - Power Saving ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (free trial) Norton 360 for Gamers (60-day free trial) WinRAR (40-day free trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Other informationWOL management via PME, PXE
DesignationCE+WEEE
