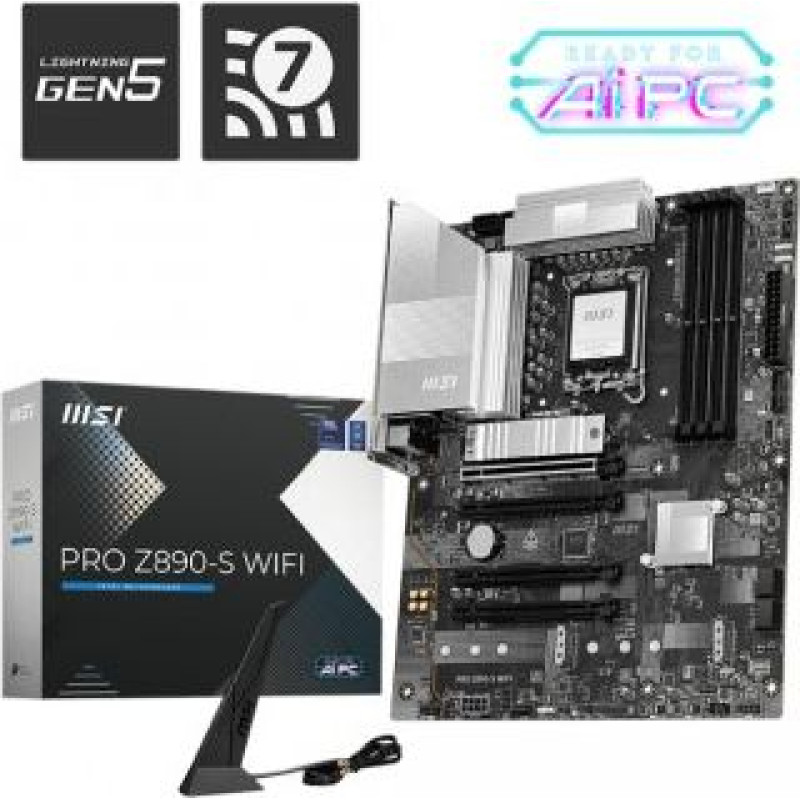

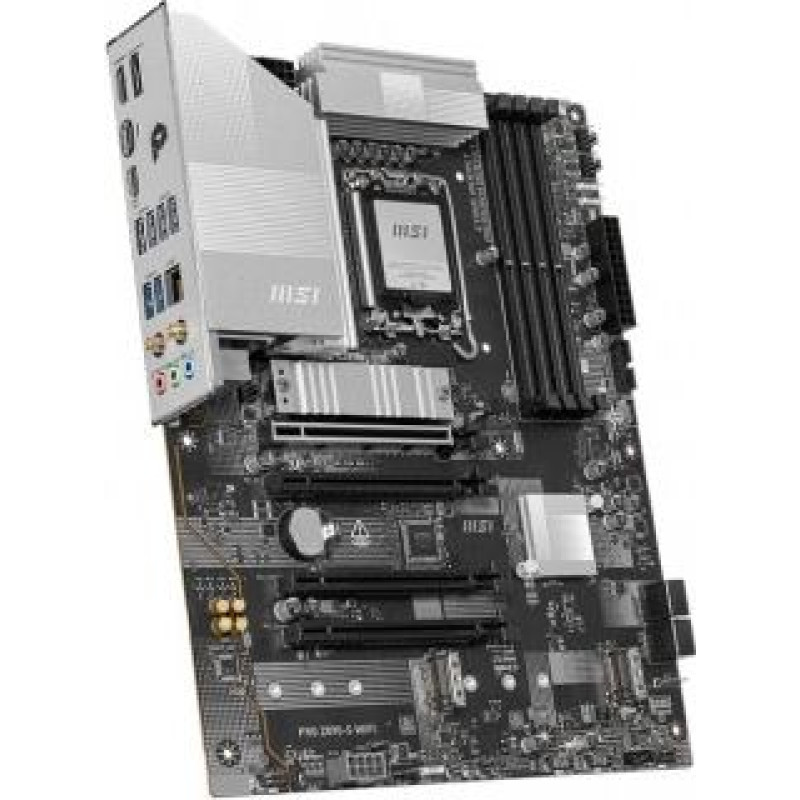

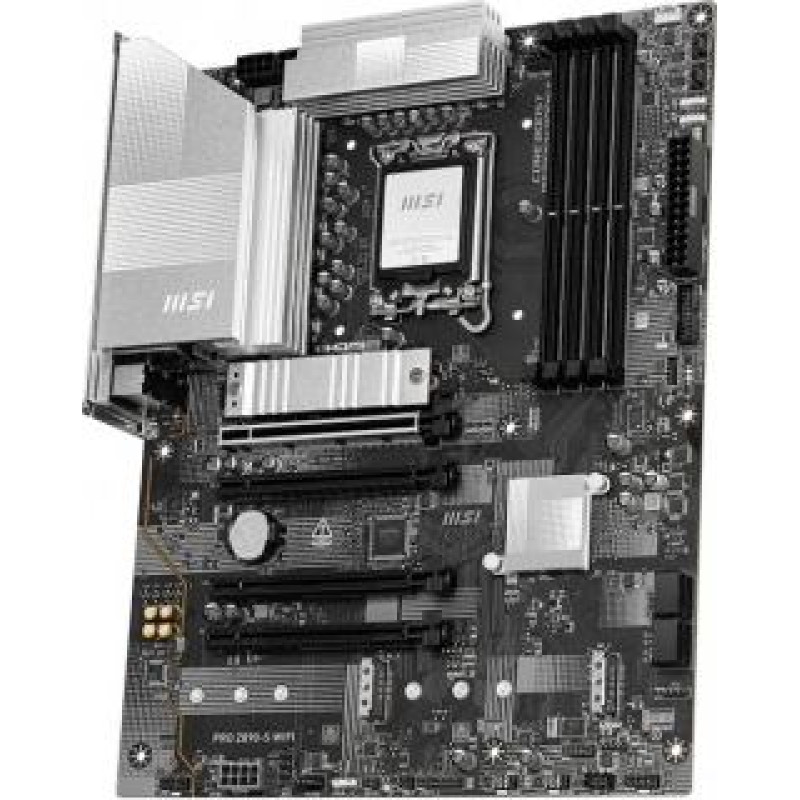

MSI Motherboard PRO Z890-S WIFI s1851 4DDR5 ATX

MSI

MSI Motherboard PRO Z890-S WIFI s1851 4DDR5 ATX

Delivery to the store takes 3 - 7 business days.
ID: 172118
Product Code: PRO Z890-S WIFI
Barcode 4711377269995
201.71€
(Ex Tax: 162.67€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIIIFZ890A04
svītrkods: 4711377269995
Description
SKUKBMSIIIFZ890A04
Barcode4711377269995
ModelPRO Z890-S WIFI
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset type INTEL Z890
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8600 MHz
Memory bus frequency7200 MHz
Memory bus frequency6400 MHz
Memory bus frequency4800 MHz
Max memory size256
Expansion slots4 x PCIe x 16
Expansion slots1 x PCIe 3.0 x 1
Expansion slots2 x PCIe 4.0 x 4
Expansion slots1 x PCIe 5.0 x 16
Expansion slots3 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions. Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices
Graphics1x HDMI HDMI 2.1 support, max resolution 4K 60Hz* 1x DisplayPort DisplayPort 1.4 support, max resolution 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, DisplayPort 2.1 support with UHBR20 over USB Type-C, max resolution 4K@120Hz / 8K@60Hz* *Only available with processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Sound cardRealtek ALC897 Codec 7.1-Channel High Definition Audio
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceBluetooth
Network interfaceLAN Realtek 8125D 2.5Gbps LAN Wireless LAN and Bluetooth Intel Wi-Fi 7 Wireless module is pre-installed in M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz*(320MHz) up to 5.8Gbps Supports 802.11 a/b/g/n/ac/ax/be Supports Bluetooth 5.4**, MLO, 4KQAM
USB ports at back panel8
USB ports on motherboard8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports4
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

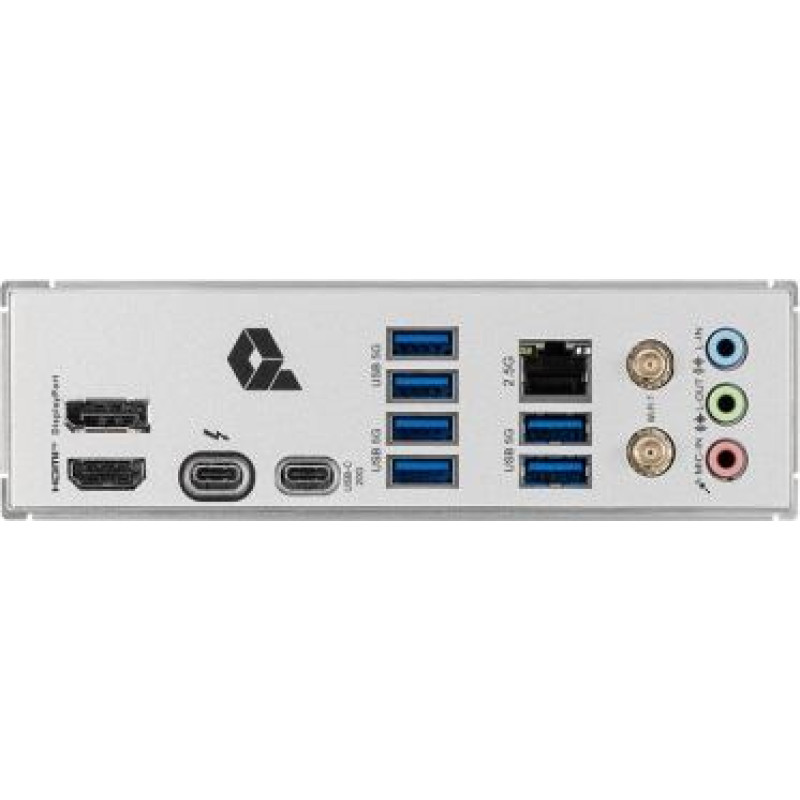

External connectors1 x DisplayPort
External connectors1 x USB 3.1 Type-C
External connectors6 x USB 3.0
External connectors1 x RJ-45
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x Thunderbolt 4
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x Thunderbolt header
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors4 x USB 2.0/1.1
Onboard connectors2 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors4 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 8pin 12V power
Onboard connectors4 x EZ Debug LED
Onboard connectors1 x Tuning Controller connector
Onboard connectors1 x RGB LED strip header
Onboard connectors3 x Addressable LED
Form factorATX
Dimensions243.84 mm x 304.8 mm
Supported operating systemsWindows 11
DesignationCE+WEEE
