Home Computers and equipment Computer components Motherboard Asus Motherboard PROART X870E-CREATOR WI FI AM5 4DDR5 HDMI/USB-C

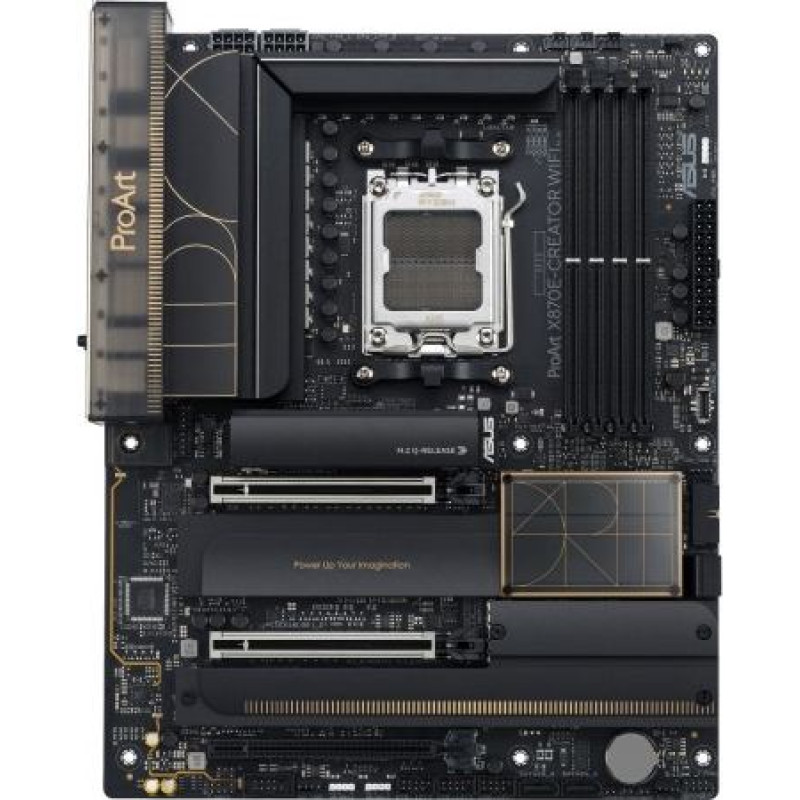

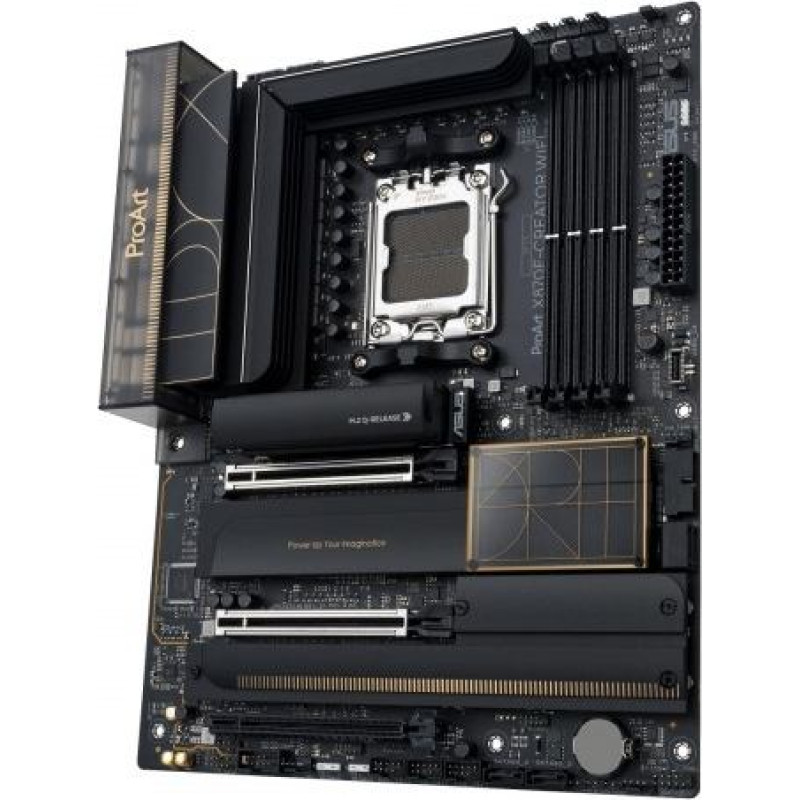

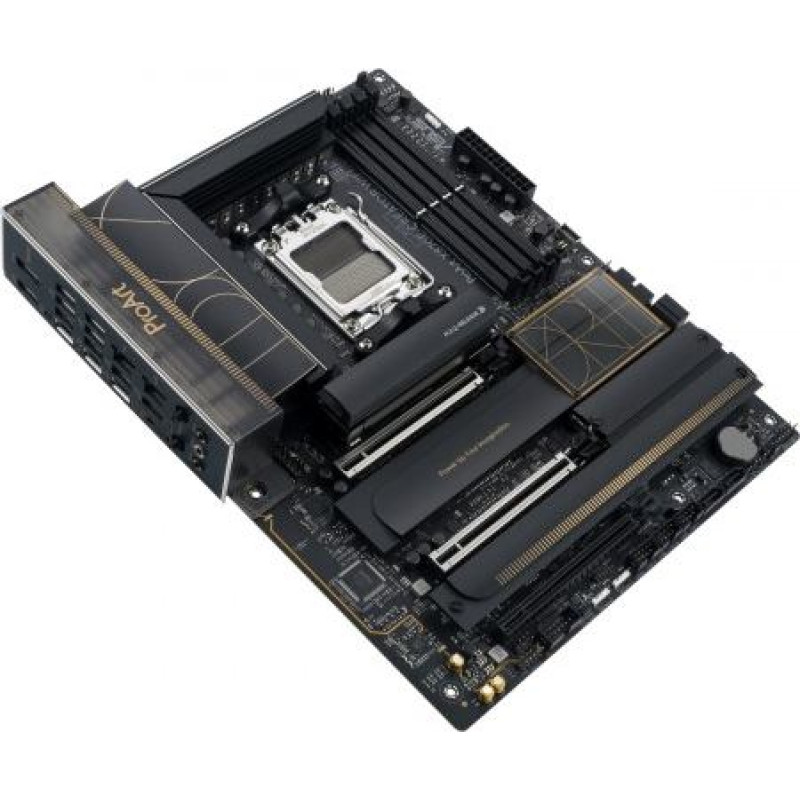

Asus Motherboard PROART X870E-CREATOR WI FI AM5 4DDR5 HDMI/USB-C

Asus Motherboard PROART X870E-CREATOR WI FI AM5 4DDR5 HDMI/USB-C

Delivery to the store takes 3 - 7 business days.
ID: 172119
Product Code: PROART X870E-CREATOR WIFI
Barcode 4711387730775
541.35€
(Ex Tax: 436.57€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUAA8X870A05
svītrkods: 4711387730775
Description
SKUKBASUAA8X870A05
Barcode4711387730775
ModelPROART X870E-CREATOR WIFI
CPU socketSocket AM5
Processor familyAMD Ryzen 3
Processor familyAMD Ryzen 5
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen 9
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD X870E
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8000 MHz
Max memory size192
Expansion slots2 x PCIe 5.0 x16
Expansion slots1 x PCIe 4.0 x 16
Expansion slots4 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesTotal supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**AMD X870E ChipsetM.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen 9000series CPU.** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
Graphics1 x HDMITM port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.** Supports 4K@60Hz as specified in HDMI 2.1.  *** Supports max. 8K@60Hz as specified in DisplayPort 1.4.**** Output at USB4_EC1 and USB4_EC2, each requires a USB-C to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution.
Sound cardRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC* Impedance detection for front and rear headphone outputs Internal audio amplifier to enhance the highest sound quality for headphones and speakers Supports: jack detection, streaming, front panel jack repurposing High quality stereo playback output SNR 120 dB and recording input SNR 113 dB (line in) Supports up to 32-bit/192 kHz playback* Audio features Audio shielding Premium audio capacitors Dedicated PCB audio layers Unique de-pop circuit * Due to HDA bandwidth limitations,32-bit/192 kHz is not supported for 7.1 surround sound.** A chassis with an HD audio module on the front panel is required to support 7.1 surround audio output.
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interface1 x 10/100/1000/2500 Mbit/s
Network interface1 x 10/100/1000 Mbit/s
Network interfaceBluetooth
Network interfaceEthernet 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency band** Supports Wi-Fi 7 320 MHz band, up to 6.5 Gbps transfer speed. Bluetooth v5.4*** *Wi-Fi features may vary by OSFor Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, please note that there is no driver available, please refer to the Wi-Fi chipset vendor's website for details.**6GHz Wi-Fi frequency band and bandwidth regulations may vary by country.***Bluetooth version may vary. Please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB ports at back panel11
USB ports on motherboard9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports2
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports11
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors2 x USB4 Type-C
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Side Speaker
External connectors1 x Rear Speaker
External connectors1 x Line Out (front)
External connectors1 x MIC (front)
External connectors2 x RJ-45
External connectors1 x USB 2.0
External connectors1 x USB 3.1 Type-C
External connectors7 x USB 3.1
External connectors1 x Przycisk Clear CMOS
External connectors1 x Flash BIOS Button
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors3 x USB 2.0/1.1 header
Onboard connectors1 x Serial port header
Onboard connectors1 x System panel header
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors4 x M.2
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors5 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x Thermal sensor connector
Onboard connectors1x CPU/DRAM overvoltage jumper
Onboard connectors3 x Addressable LED
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Form factorATX
Dimensions30.5 cm x 24.4 cm
Accessories includedDisplayPort Cable 4 x SATA 6Gb/s Cables Extra Cooling Kit Thermal Pad for M.2 22110 Q-ASUS WiFi Antenna Q-Connector Q-Latch M.2 Pack Q-Latch Q-Slide M.2 Pack for M.2 Backplate 2 x Rubber Packs for M.2 ProArt Ruler Quick Guide ACC Express Activation Key Card
Supported operating systemsWindows 11
SoftwareASUS Exclusive SoftwareArmory Crate- Aura Creator- Aura Sync- Fan Xpert 4 with AI Cooling II- Power SavingASUS DriverHubASUS GlideXUSB Wattage WatcherTurboV CoreASUS CPU-ZProArt Creator HubCreationFirstAdobe Creative Cloud (Free Trial)Norton 360 Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeFlexKey
DesignationCE+WEEE
