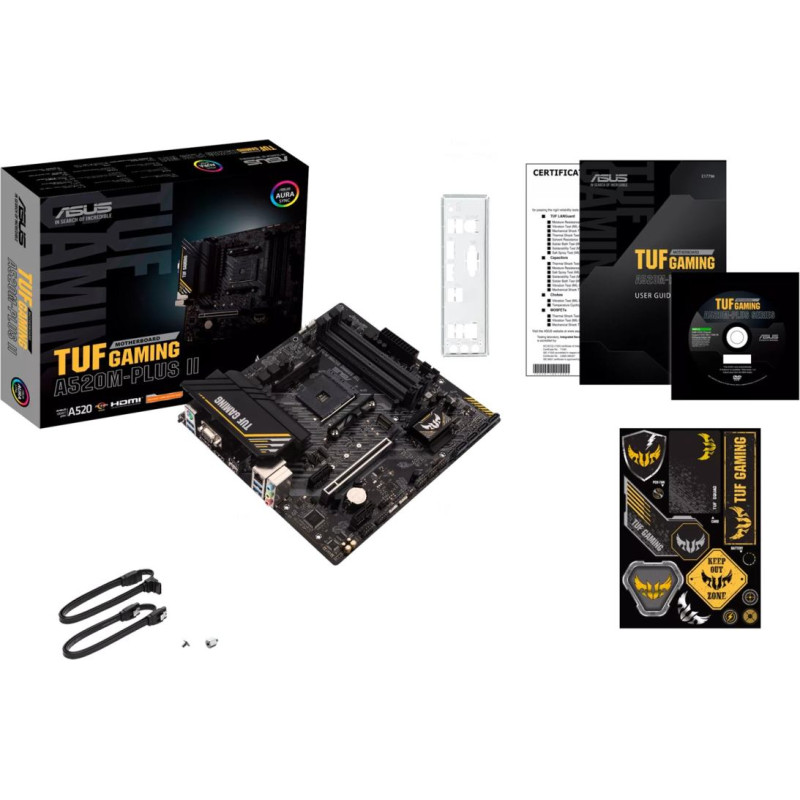

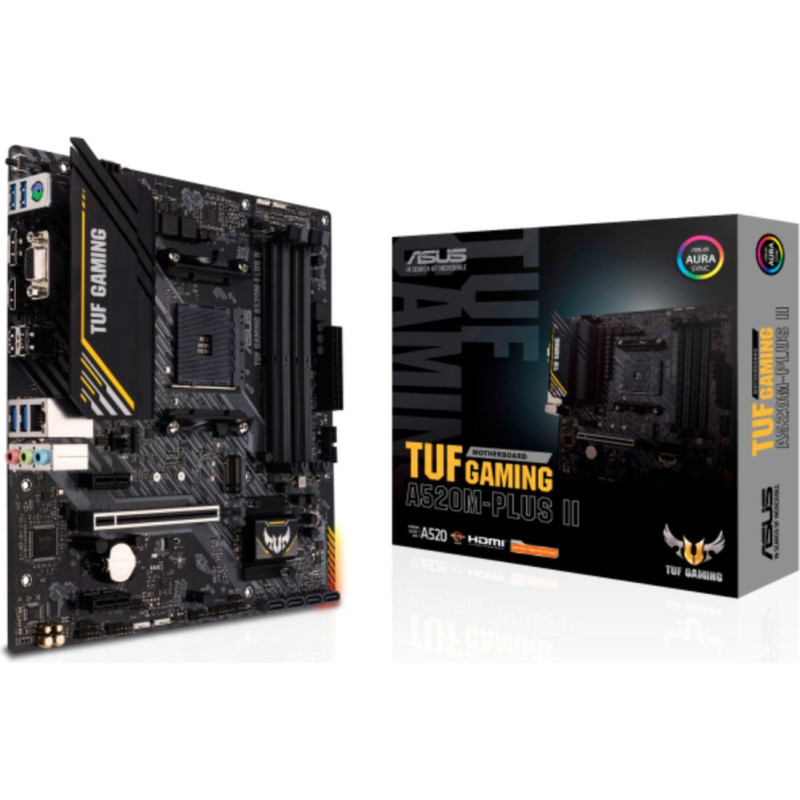

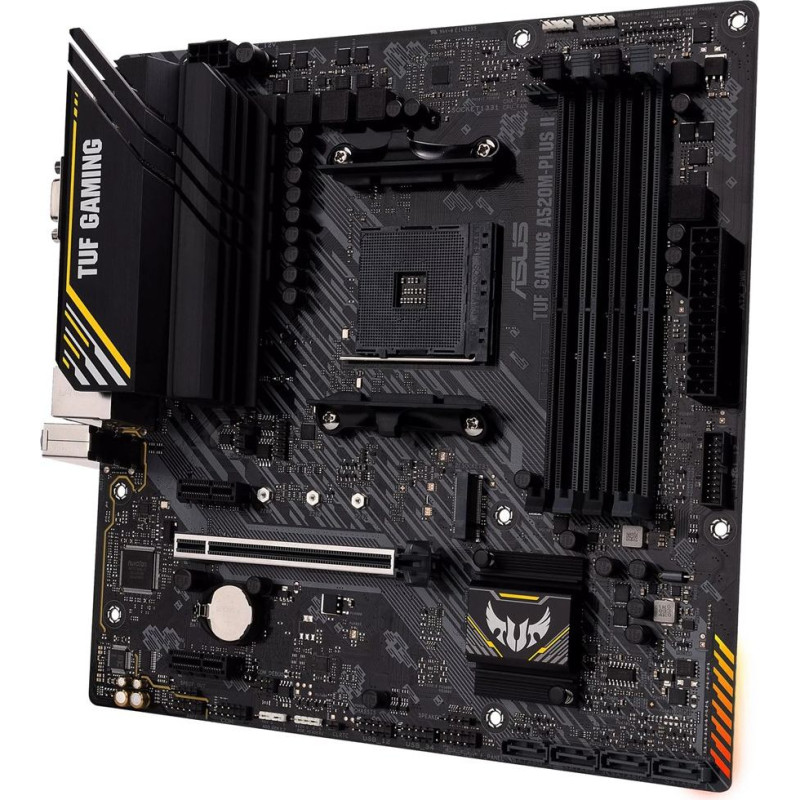

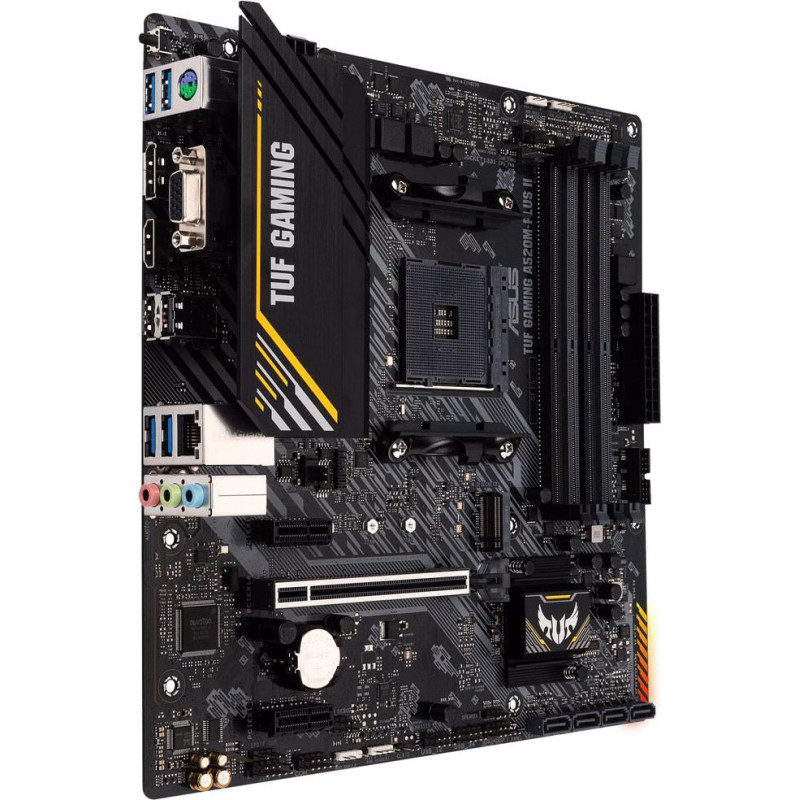

Asus TUF GAMING A520M-PLUS II AMD A520 Socket AM4 micro ATX

Asus TUF GAMING A520M-PLUS II AMD A520 Socket AM4 micro ATX

Delivery to the store takes 3 - 7 business days.
ID: 173071
Product Code: 90MB17G0-M0EAY0
Barcode 4711081154457
84.64€
(Ex Tax: 68.26€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsSocket AM4
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 3000 Series
Processor socketSocket AM4
Parallel processing technology supportNot supported
Maximum resolution3840 x 2160 pixels
Motherboard chipsetAMD A520
Windows operating systems supportedWindows 10 x64
Audio output channels7.1 channels
Audio chipRealtek ALC887 / Realtek ALC897
Motherboard chipset familyAMD
ECC сompatibilityECC
Supported memory clock speeds3200
Unbuffered memoryYes
Maximum internal memory128 GB
Memory channelsDual-channel
Number of memory slots4
Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
Wake-on-LAN readyYes
Ethernet LANYes
Wi-FiNo
Ethernet interface typeGigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
S/PDIF out connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Number of COM connectors1
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
Number of M.2 (M) slots1
CPU fan connectorYes
USB 2.0 connectors2
Number of chassis fan connectors2
TPM connectorYes
RGB LED pin headerYes
12V power connectorYes
BIOS typeUEFI AMI
Clear CMOS jumperYes
Cables includedSATA
Drivers includedYes
RAID levels10
Supported storage drive interfacesM.2, PCI Express 3.0, SATA III
Supported storage drive typesHDD & SSD
Number of storage drives supported5

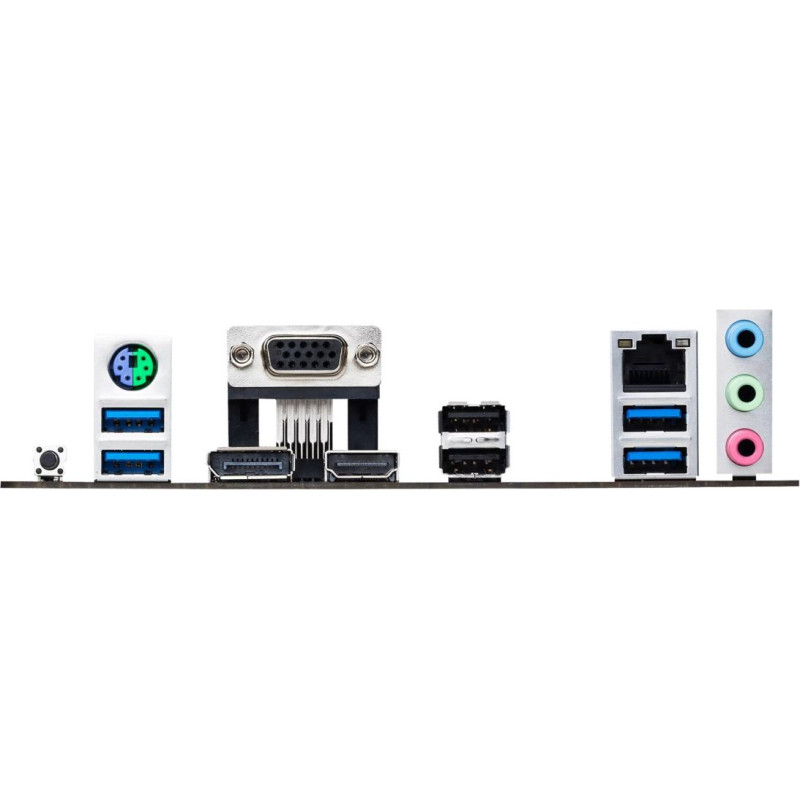

Number of audio jack connectors3
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
DisplayPorts quantity1
DisplayPort version1.2
USB connector typeUSB Type-A
PS/2 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI version2.1
HDMI ports quantity1
VGA (D-Sub) ports quantity1
PCI Express x16 (Gen 3.x) slots1
PCI Express x1 (Gen 3.x) slots2
Number of M.2 (M) slots1
WarningsAvoid direct contact with sensitive electronic components.
