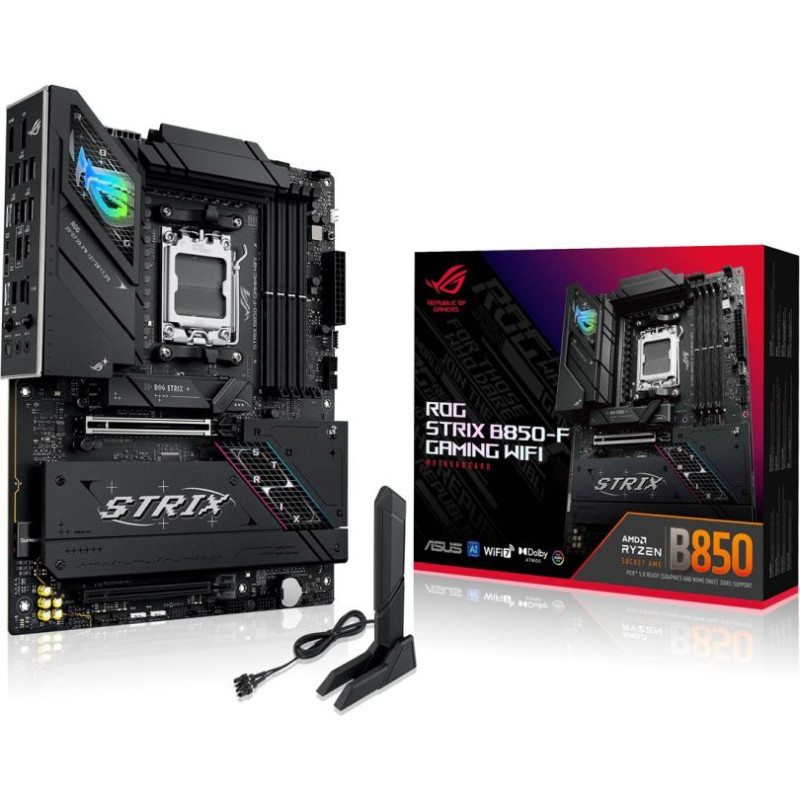

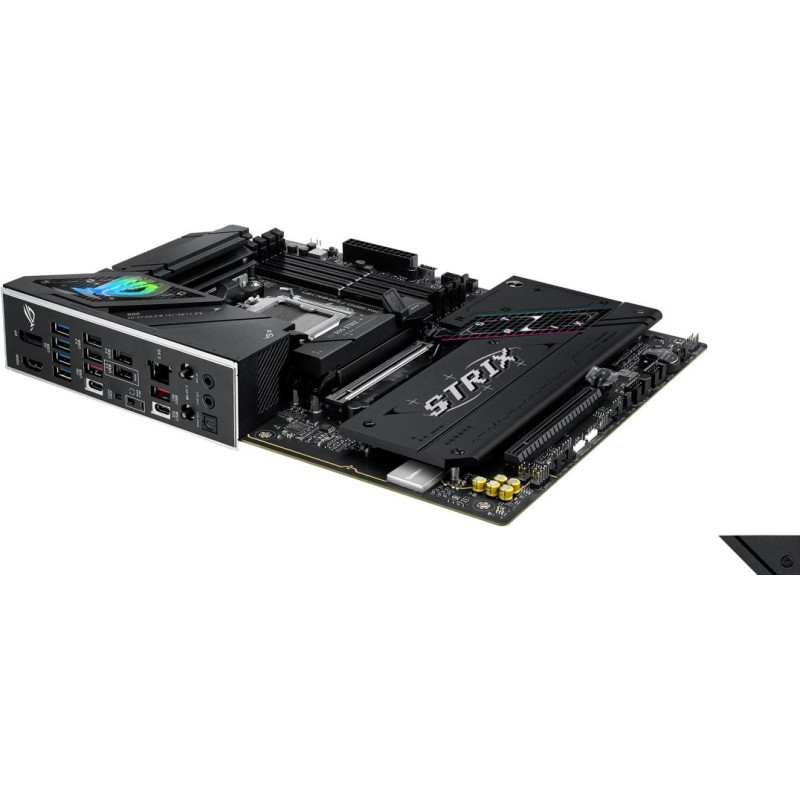

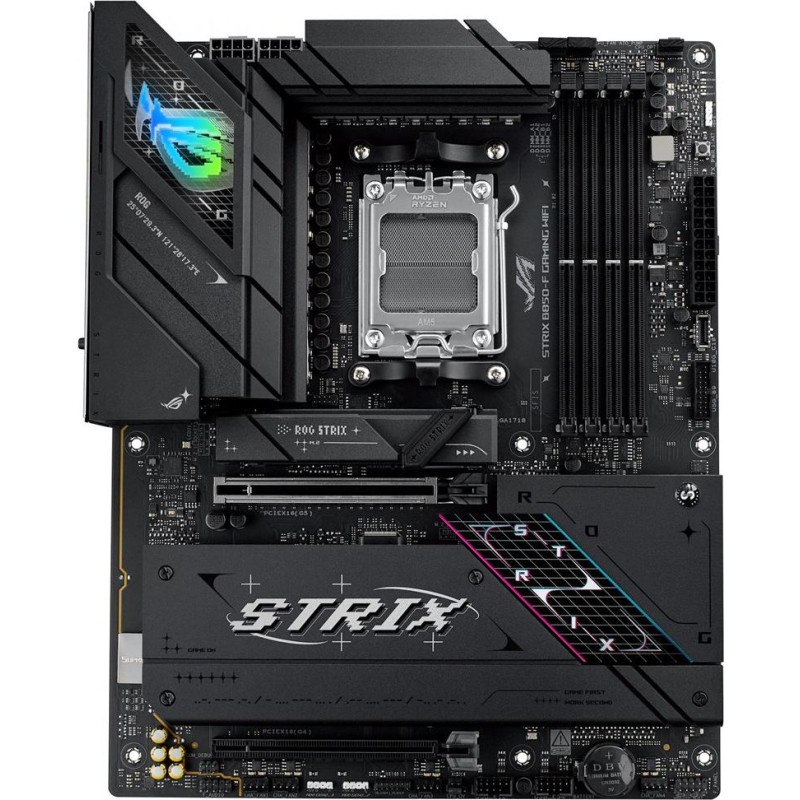

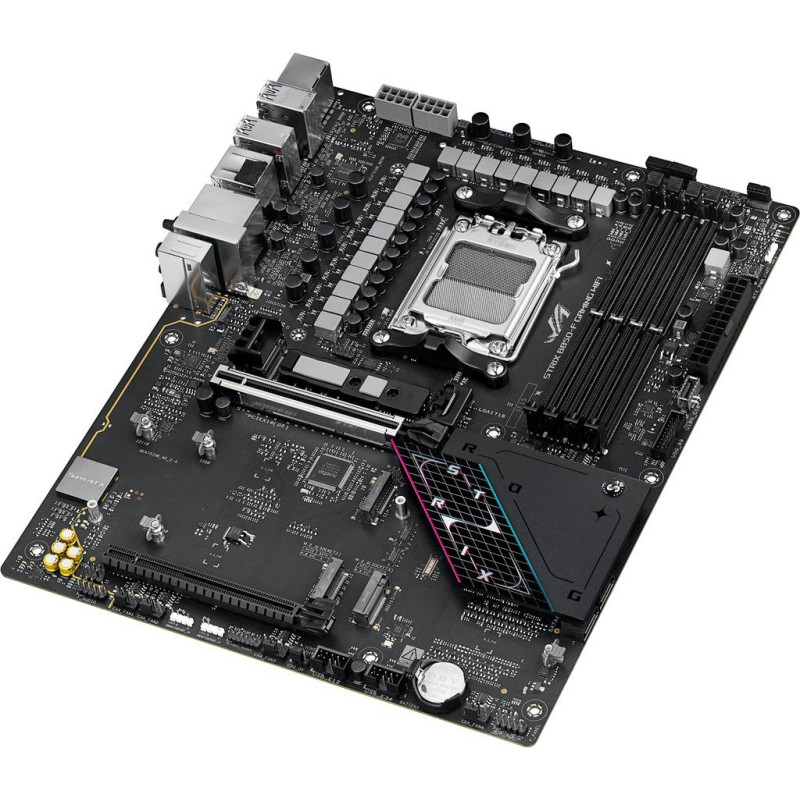

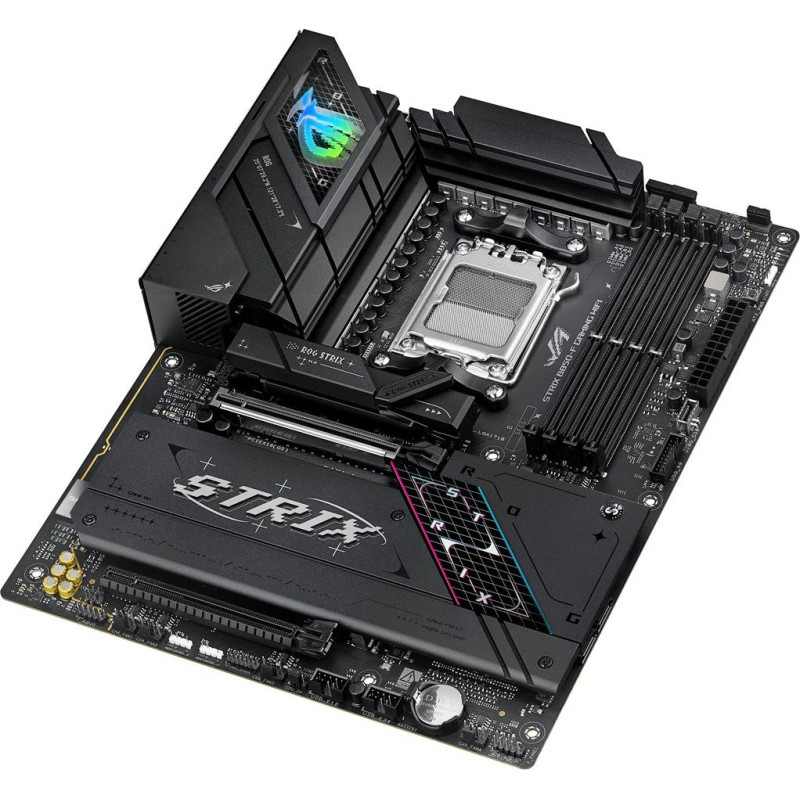

Asus ROG STRIX B850-F GAMING WIFI AMD B850 socket AM5 ATX motherboard

Asus ROG STRIX B850-F GAMING WIFI AMD B850 socket AM5 ATX motherboard

Delivery to the store takes 3 - 7 business days.
ID: 173073
Product Code: 90MB1J70-M0EAY0
Barcode 4711387771013
326.25€
(Ex Tax: 263.11€)
Payment options

Delivery options

omniva  venipak



Description
Description
Compatible processor seriesAMD Ryzen 7000 Series
Processor manufacturerAMD
Supported processor socketsSocket AM5
Processor socketSocket AM5
Maximum resolution7680 x 4320 pixels
On-board graphics cardNo
Parallel processing technology supportNot supported
Motherboard chipsetAMD B850
Motherboard chipset familyAMD
Product colourBlack
Audio chipRealtek ALC4080
Windows operating systems supportedWindows 11
Audio output channels7.1 channels
Motherboard form factorATX
Power source typeATX
ECC сompatibilityECC & Non-ECC
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Number of memory slots4
Maximum internal memory192 GB
Unbuffered memoryYes
Memory slots typeDIMM
Supported memory clock speed (max)8000 MHz
Width305 mm
Depth244 mm
Wi-FiYes
BluetoothYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Bluetooth version5.4
Wi-Fi standardsWi-Fi 7 (802.11be)
RGB LED pin headerYes
Number of SATA III connectors2
CPU fan connectorYes
Front panel connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
ATX Power connector (24-pin)Yes
EPS power connector (8-pin)Yes
Number of water pump connectors1
Front panel audio connectorYes
Number of chassis fan connectors4
Number of CPU fan connectors2
Number of RGB LED pin headers3
Thunderbolt headers1
Number of EPS power connectors (8-pin)2
USB 2.0 connectors2
Number of temperature sensor headers1
Clear CMOS buttonYes
BIOS typeUEFI AMI
Package width353 mm
Package depth273 mm
Package weight2.06 kg
Package height68 mm
Cables includedSATA
Antenna includedYes
RAID supportYes
Supported storage drive typesHDD & SSD
Number of HDDs supported2
Number of storage drives supported6
Supported storage drive interfacesM.2, SATA III
Digital audio optical out1
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Headphone outputs1
Ethernet LAN (RJ-45) ports1
Line-inYes
DisplayPort version1.4
DisplayPorts quantity1
USB 2.0 ports quantity4
HDMI version2.1
USB 3.2 Gen 2x2 Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
WiFi-AP antenna jack2
S/PDIF out portYes
PCI Express x16 (Gen 4.x) slots1
1st M.2 largest key size2280
2nd M.2 highest PCI Express generation5.0
2nd M.2 largest key size22110
Number of M.2 (M) slots4
4th M.2 largest key size2280
PCI Express x16 (Gen 5.x) slots1
3rd M.2 largest key size2280
4th M.2 highest PCI Express generation4.0
1st M.2 highest PCI Express generation5.0
3rd M.2 highest PCI Express generation4.0
Quick installation guideYes
Weight1.63 kg
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
