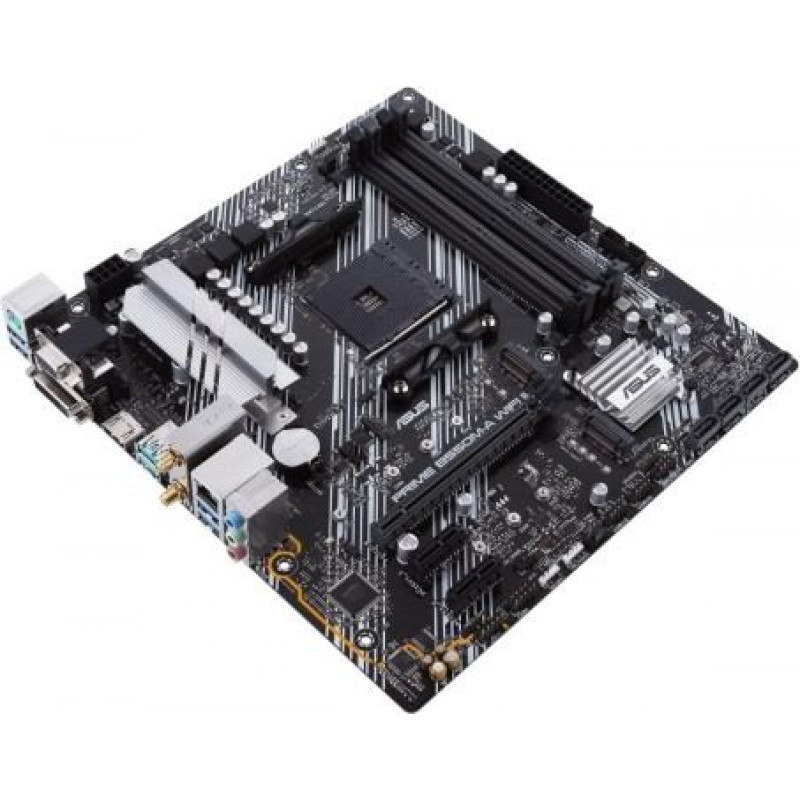

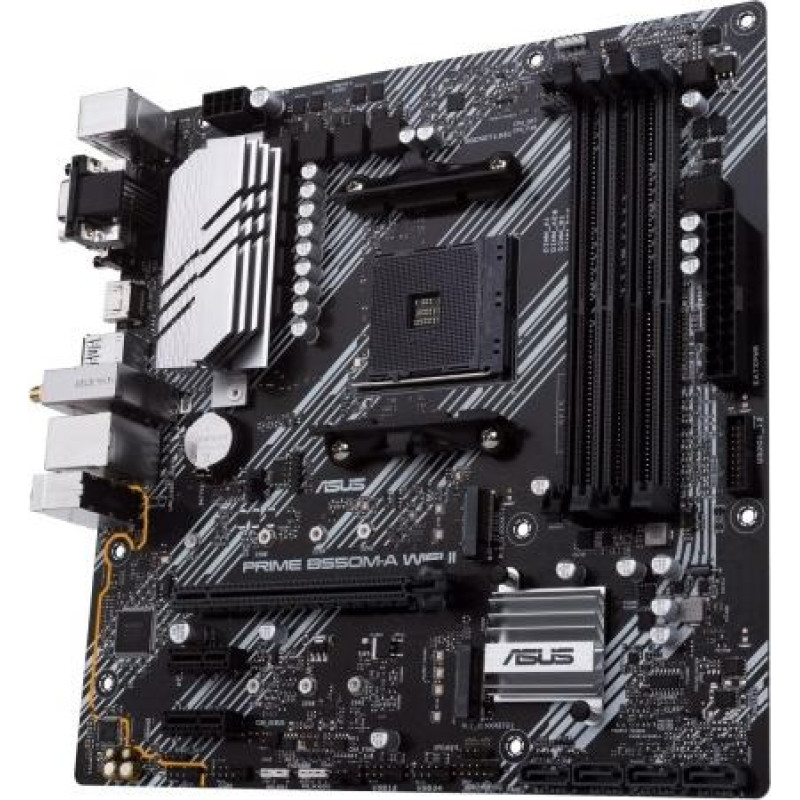

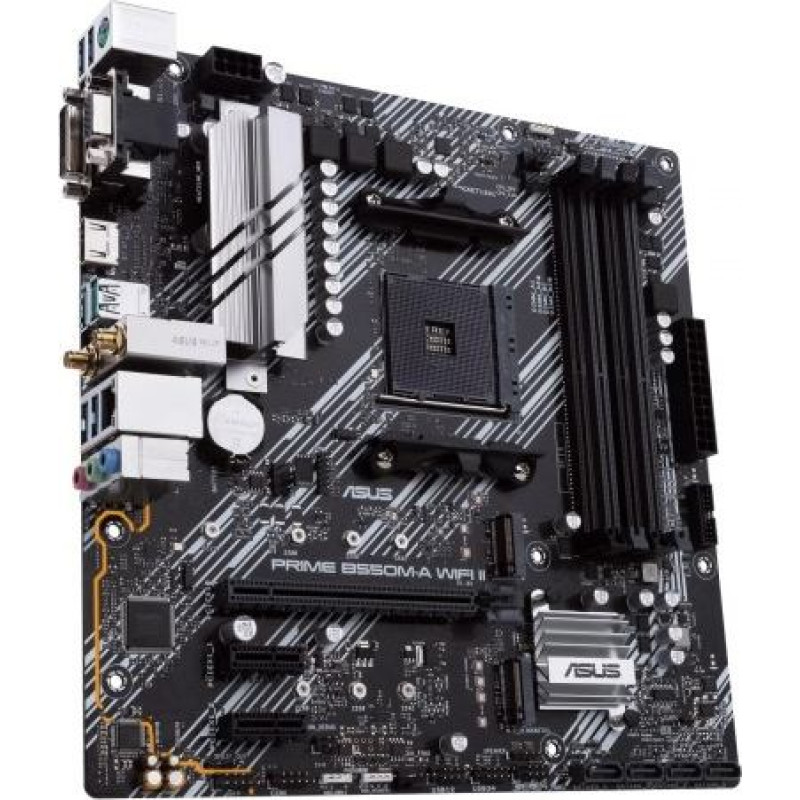

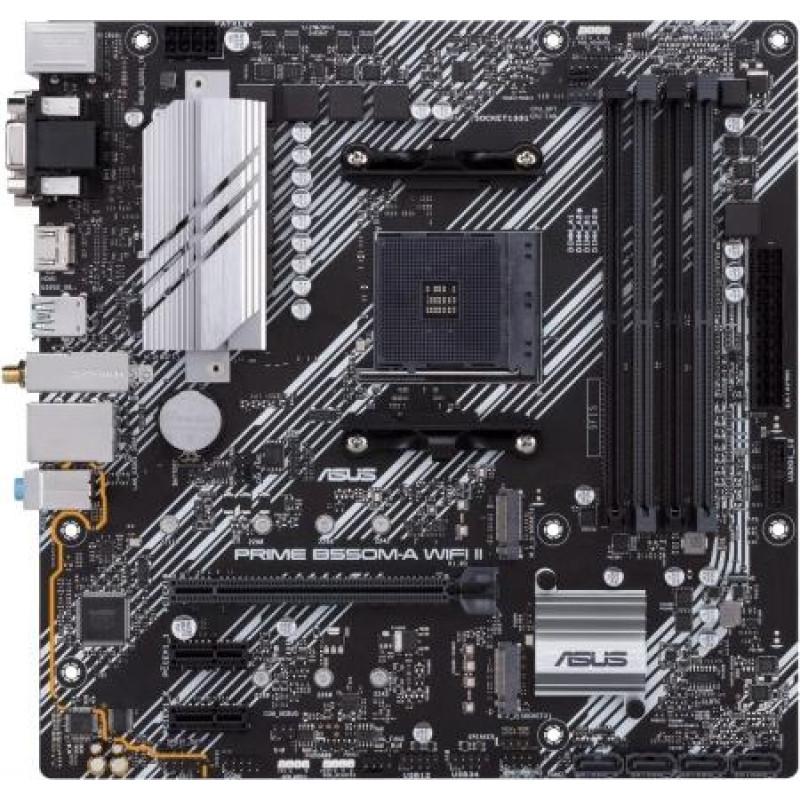

Asus PRIME B550M-A WIFI II AM4 4DDR4 HDMI M.2 mATX

Asus PRIME B550M-A WIFI II AM4 4DDR4 HDMI M.2 mATX

Delivery to the store takes 3 - 7 business days.
ID: 177986
Product Code: PRIME B550M-A WIFI II
Barcode 4711081309741
127.75€
(Ex Tax: 103.02€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUAA7B550U04
svītrkods: 4711081309741
Description
SKUKBASUAA7B550U04
Barcode4711081309741
ModelPrime B550M-A
CPU socketSocket AM4
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B550 Chipset
Memory typeDDR4
Number of DDR4 slots4
Memory bus frequency4266 MHz
Memory bus frequency4333 MHz
Memory bus frequency4400 MHz
Memory bus frequency4600 MHz
Memory bus frequency4466 MHz
Memory bus frequency2666 MHz
Memory bus frequency2400 MHz
Memory bus frequency4200 MHz
Memory bus frequency4133 MHz
Memory bus frequency4000 MHz
Memory bus frequency3733 MHz
Memory bus frequency3866 MHz
Memory bus frequency3600 MHz
Memory bus frequency3466 MHz
Memory bus frequency3400 MHz
Memory bus frequency3333 MHz
Memory bus frequency3000 MHz
Memory bus frequency2933 MHz
Memory bus frequency2800 MHz
Memory bus frequency2133 MHz
Memory bus frequency4800 MHz
Memory bus frequency4866 MHz
Max memory size128
Expansion slots1 x PCIe 3.0 x 16
Expansion slots1 x PCIe 4.0 x 16
Expansion slots2 x PCIe 3.0 x 1
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesSupports 2 M.2 slots and 4 SATA 6 Gb/s ports AMD Ryzen 5000/3000 series processors for desktop computers M.2_1 slot (M Key), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes) AMD Ryzen 4000 G-series processors for desktop computers M.2_1 slot (M Key), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 and SATA modes) AMD B550 chipset M.2_2 slot (M Key), type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes) 4x SATA 6Gb/s ports RAID 0, 1, 10 support
Graphics1 x D-Sub port 1 x DVI-D port 1 x HDMI port
Sound cardRealtek 7.1 surround high resolution audio codec Supports: jack detection, multi-streaming, front panel jack reassignment Supports playback up to 24-bit/192 kHz Audio Features: Audio Shielding Audio track design with LED backlight High-class audio capacitors Dedicated audio PCB layers
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interfaceBluetooth
Network interfaceWiFi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5 GHz frequency band Bluetooth v5.2
USB ports at back panel6
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors2 x USB 3.1
External connectors4 x USB 3.0
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x D-Sub
External connectors1 x DVI-D
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x Przycisk Clear CMOS
External connectors2 x SMA
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x Front panel audio header
Onboard connectors2 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x Serial port header
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x TPM header
Onboard connectors1 x S/PDIF Out header
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Form factormicro ATX
Dimensions24.4 x 24.4 cm
Accessories includedWires: 2 SATA 6Gb/s cables Other: 1 x ASUS Wi-Fi movable antennas 1 x I/O Shield 1 M.2 SSD screw pack Installation media: 1 x Support DVD Documentation: 1 x User Manual
Supported operating systemsWindows 10
Supported operating systemsWindows 11
DesignationCE+WEEE
