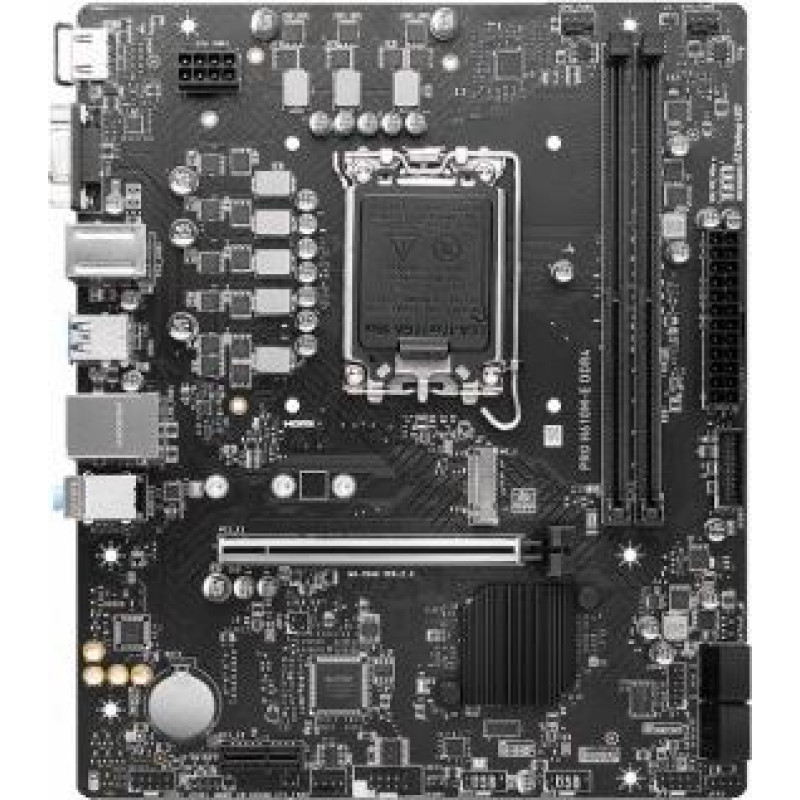

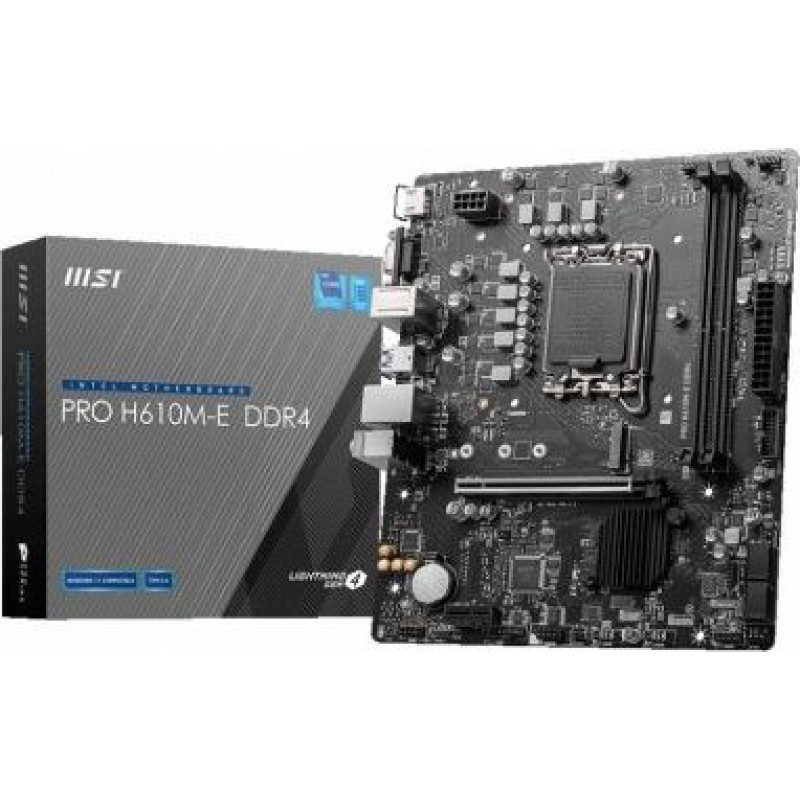

MSI PRO H610M-E s1700 DDR4 HDMI M.2 mATX

MSI

MSI PRO H610M-E s1700 DDR4 HDMI M.2 mATX

Delivery to the store takes 3 - 7 business days.
ID: 178119
Product Code: PRO H610M-E DDR4
Barcode 4711377002660
65.37€
(Ex Tax: 52.72€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIIIEH610U01
svītrkods: 4711377002660
Description
SKUKBMSIIIEH610U01
Barcode4711377002660
ModelPro H610M-E DDR4
CPU socketLGA1700
Processor familyIntel Celeron
Processor familyIntel Pentium
Processor familyIntel Core
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel H610 Chipset
Memory typeDDR4
Number of DDR4 slots2
Memory bus frequency3200 MHz
Memory bus frequency2666 MHz
Memory bus frequency2133 MHz
Max memory size64
Expansion slots1 x PCIe 4.0 x 16
Expansion slots1 x PCIe 3.0 x 1
Max. number of SATA devices4
RAIDNo
Graphics1x HDMI 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1x VGA port supporting maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Sound cardRealtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface1x Realtek RTL8111H 1Gbps LAN controller
USB ports at back panel6
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

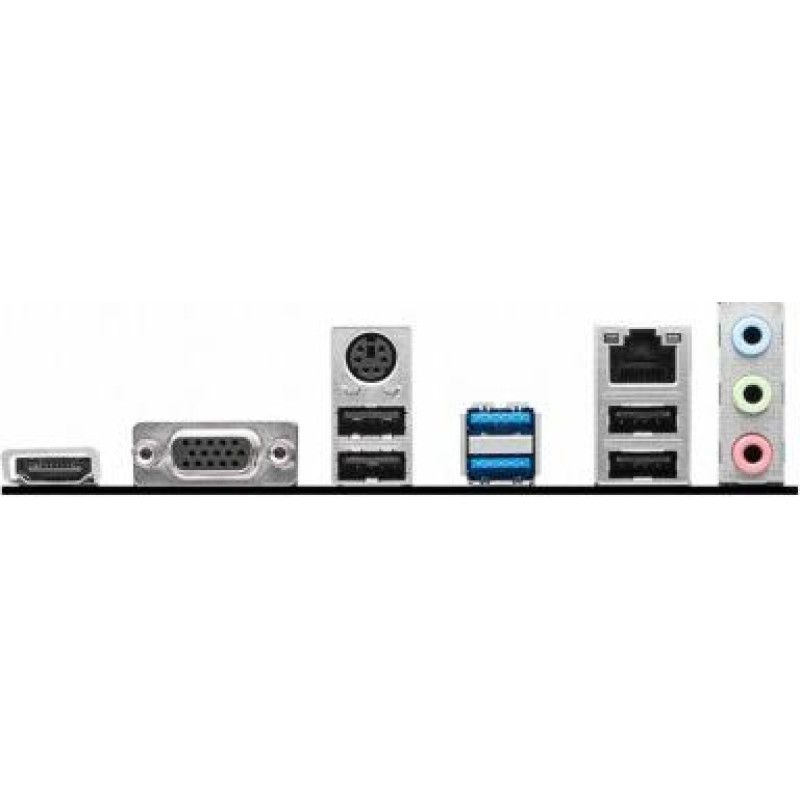

External connectors1 x PS/2 Keyboard/MouseCombo
External connectors4 x USB 2.0
External connectors1 x D-Sub
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors2 x USB 3.0
Onboard connectors1 x Serial port header
Onboard connectors1 x TPM header
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x 4pin CPU fan
Onboard connectors2 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Form factormicro ATX
Dimensions23.6 x 20 cm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
DesignationCE+WEEE
