Home Computers and equipment Computer components Motherboard Gigabyte Motherboard - Gigabyte MH53-G40 1x sTR5 AMD Ryzen Threadripper PRO 7000 WRX90

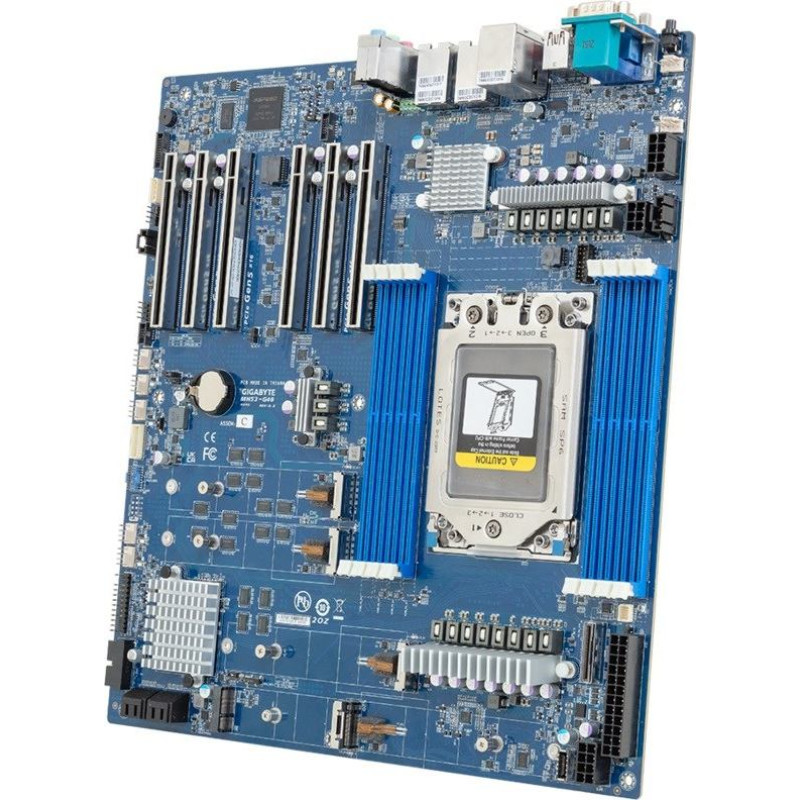

Gigabyte Motherboard - Gigabyte MH53-G40 1x sTR5 AMD Ryzen Threadripper PRO 7000 WRX90

Gigabyte Motherboard - Gigabyte MH53-G40 1x sTR5 AMD Ryzen Threadripper PRO 7000 WRX90

Availability: Delivery to the store takes 3 - 7 business days.
ID: 23021
Product Code: 9MH53G40MR-000
Barcode 4719331862114
1,054.50€
(Ex Tax: 850.41€)
Payment options

Delivery options



Description
Description
Supported processor socketsSocket sTR5
Compatible processor seriesAMD Ryzen Threadripper PRO 7000 WX-Series
Processor manufacturerAMD
Maximum number of SMP processors1
Processor socketSocket sTR5
Parallel processing technology supportNot supported
Component forServer/workstation
Product colourBlue
Motherboard chipsetAMD WRX90
Motherboard form factorEATX
Motherboard chipset familyAMD
Windows operating systems supportedWindows 11 x64
Memory channelsOcta-channel
Supported memory clock speeds5200
Number of memory slots8
Memory slots typeDIMM
ECC сompatibilityECC
Supported memory typesDDR5 ECC RDIMM
Depth330.2 mm
Width304.8 mm
Ethernet LANYes
Wi-FiNo
Ethernet interface type10 Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Number of chassis fan connectors6
12V power connectorYes
CPU fan connectorYes
Number of MCIO connectors1
USB 3.2 Gen 2 (3.1 Gen 2) ports quantity1
ATX Power connector (24-pin)Yes
Package height78 mm
Package depth355 mm
Package width409 mm
DFU / User manualY
Supported storage drive typesHDD & SSD
RAID levels5
Supported storage drive interfacesM.2, SATA III
RAID supportYes
USB 3.2 Gen 2x2 Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
Port Management LANYes, 1
COM ports quantity1
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1
Number of audio jack connectors3
PCI Express x16 (Gen 5.x) slots6
WarningsDo not open or disassemble the motherboard.
