Home Computers and equipment Computer components Motherboard Asus PRIME B660M-K D4 Intel B660 LGA 1700 micro ATX

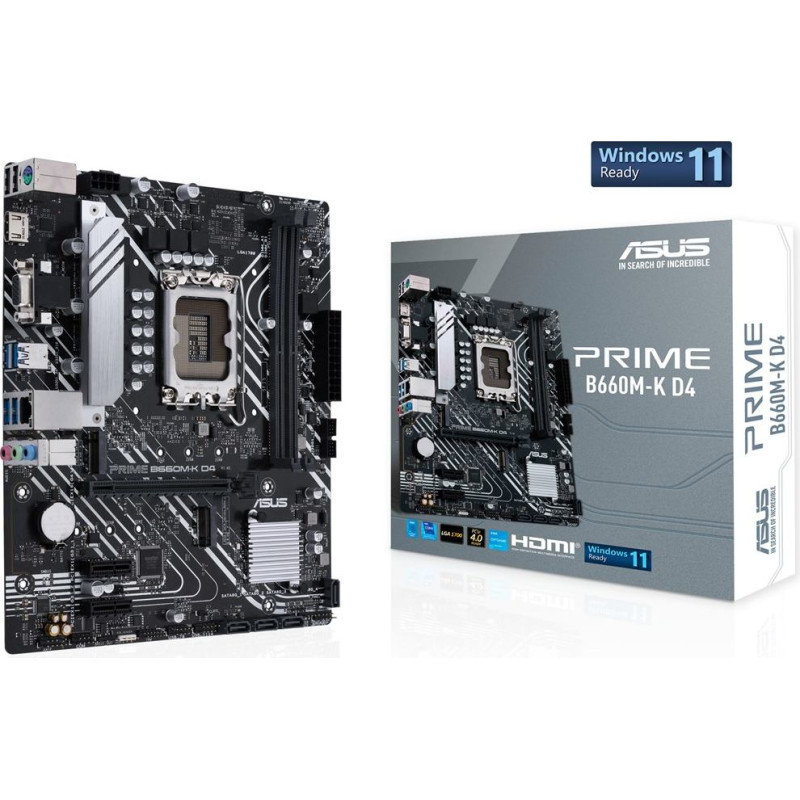

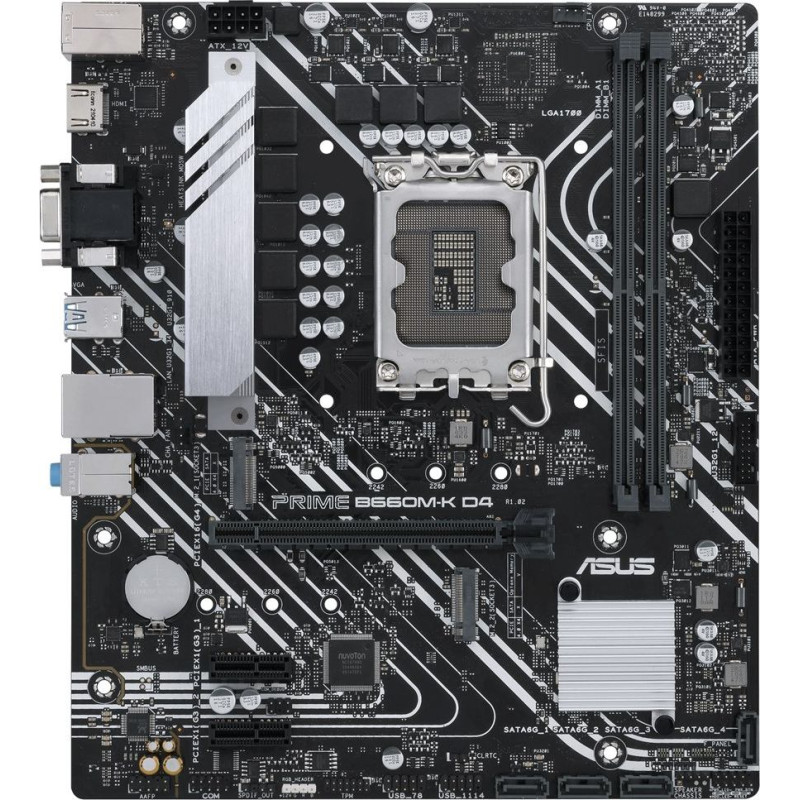

Asus PRIME B660M-K D4 Intel B660 LGA 1700 micro ATX

Asus PRIME B660M-K D4 Intel B660 LGA 1700 micro ATX

Availability: Out Of Stock
ID: 23069
Product Code: 90MB1950-M1EAY0
Barcode 4711081511830
88.43€
(Ex Tax: 71.31€)
Payment options

Delivery options



Description
Description
Compatible processor seriesIntel® Core™ i5
Processor manufacturerIntel
Supported processor socketsLGA 1700
Processor socketLGA 1700
Windows operating systems supportedWindows 10 x64
Audio output channels7.1 channels
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Motherboard chipsetIntel B660
ECC сompatibilityNon-ECC
Memory channelsDual-channel
Unbuffered memoryYes
Memory slots typeDIMM
Supported memory clock speeds2400
Maximum internal memory64 GB
Number of memory slots2
Supported memory typesDDR4-SDRAM
Width244 mm
Height60 mm
Depth211 mm
Wi-FiNo
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
TPM connectorYes
EPS power connector (8-pin)Yes
Number of COM connectors1
Audio connectorYes
Front panel connectorYes
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
S/PDIF out connectorYes
ATX Power connector (24-pin)Yes
USB 2.0 connectors2
Number of chassis fan connectors1
CPU fan connectorYes
RGB LED pin headerYes
Clear CMOS jumperYes
BIOS typeUEFI AMI
Cables includedSATA
Number of HDDs supported4
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
RAID supportYes
Supported storage drive typesHDD & SSD
Number of storage drives supported6

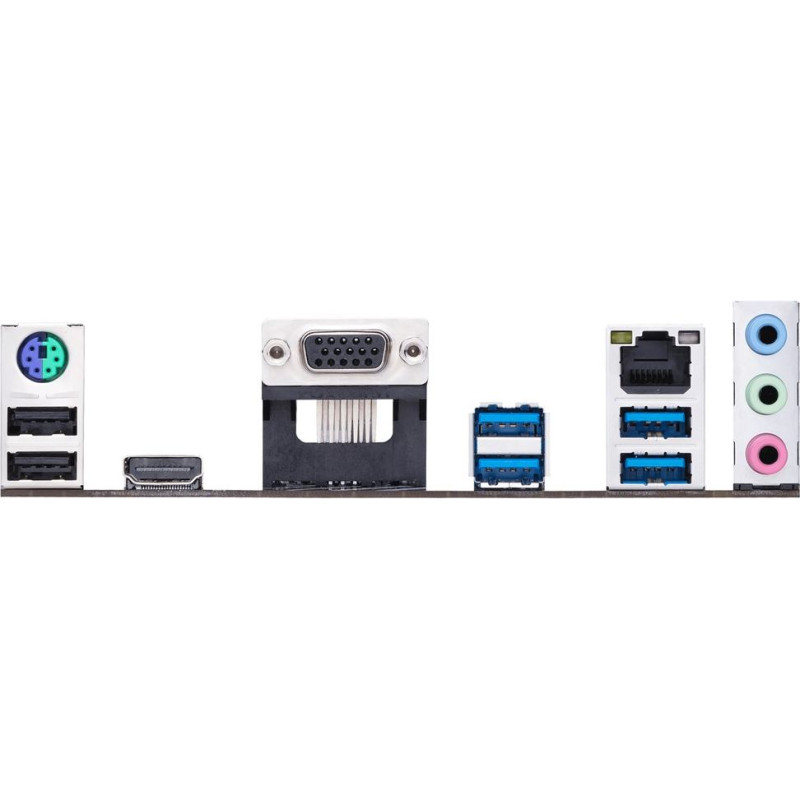

Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
Headphone outputs3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 2.0 ports quantity2
HDMI version2.1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 4.x) slots1
Weight819 g
Harmonized System (HS) code84733020
