Asus PRIME H610M-A WIFI D4 Intel H610 LGA 1700 micro ATX

Asus PRIME H610M-A WIFI D4 Intel H610 LGA 1700 micro ATX

Availability: Delivery to the store takes 3 - 7 business days.
ID: 23070
Product Code: 90MB1C80-M0EAY0
Barcode 4711081758211
90.41€
(Ex Tax: 72.91€)
Payment options

Delivery options



Description
Description
Compatible processor seriesIntel® Core™ i7
Maximum number of SMP processors1
Processor socketLGA 1700
Processor manufacturerIntel
Number of displays supported3
Windows operating systems supportedWindows 10 x64
Audio output channels7.1 channels
Motherboard chipsetIntel H610
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Supported memory clock speeds2933
Memory slots typeDIMM
Maximum internal memory64 GB
Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
Unbuffered memoryYes
Number of memory slots2
ECC сompatibilityNon-ECC
Depth211 mm
Height58 mm
Width244 mm
Wi-Fi standards802.11a
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-FiYes
Ethernet interface typeGigabit Ethernet
BluetoothYes
Ethernet LANYes
Bluetooth version5.0
12V power connectorYes
CPU fan connectorYes
Number of SATA III connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of COM connectors1
RGB LED pin headerYes
ATX Power connector (24-pin)Yes
Number of chassis fan connectors2
Front panel audio connectorYes
TPM connectorYes
EPS power connector (8-pin)Yes
S/PDIF out connectorYes
USB 2.0 connectors2
BIOS typeUEFI AMI
Cables includedSATA
Drivers includedYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA

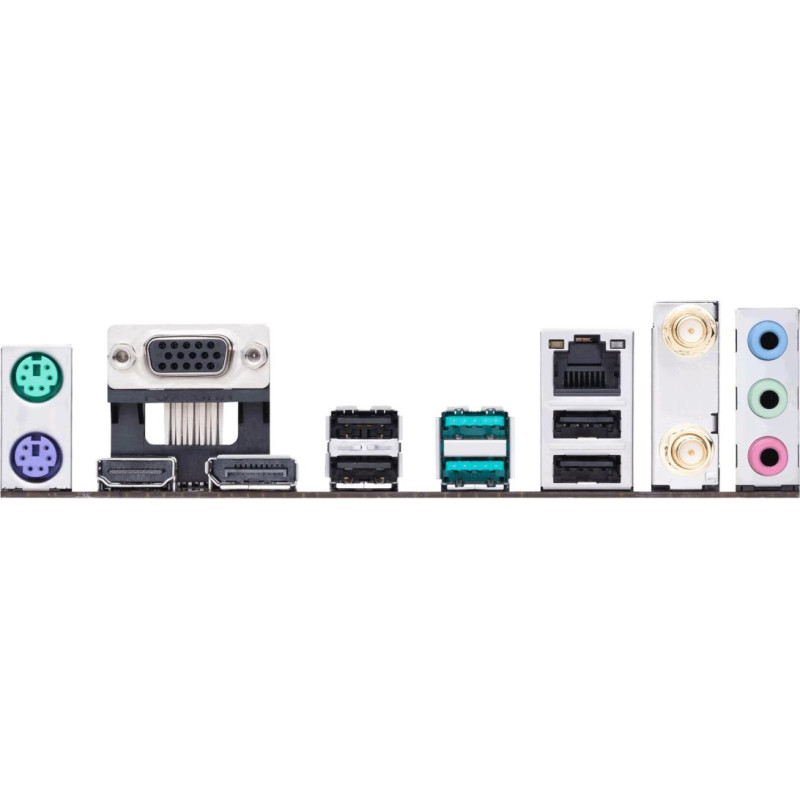

PS/2 ports quantity2
Microphone inYes
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
USB 2.0 ports quantity4
Headphone outputs1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
DisplayPort version1.4
VGA (D-Sub) ports quantity1
HDMI version2.1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
PCI Express x1 (Gen 3.x) slots1
Weight815 g
Harmonized System (HS) code84733020
WarningsBefore starting any maintenance or installation, disconnect the product from the power supply.
