Home Computers and equipment Computer components Motherboard Asus PRIME B760M-A D4-CSM Intel B760 LGA 1700 micro ATX

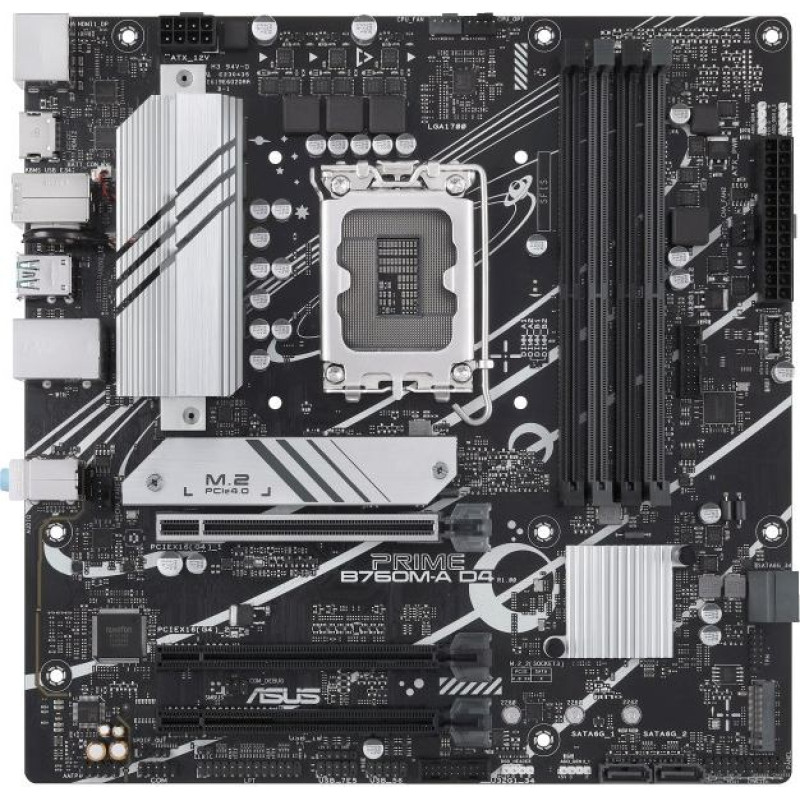

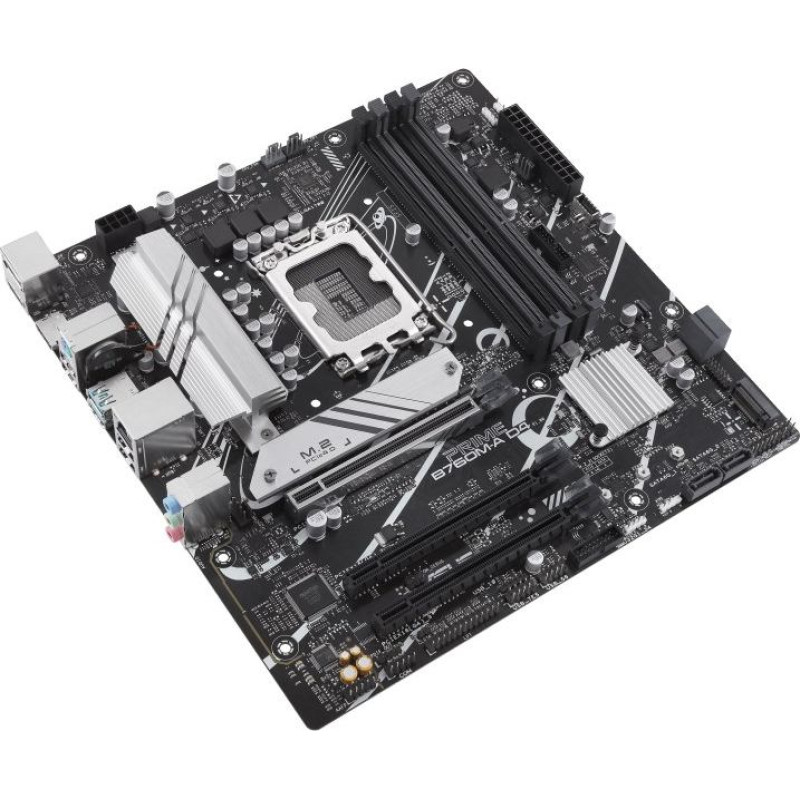

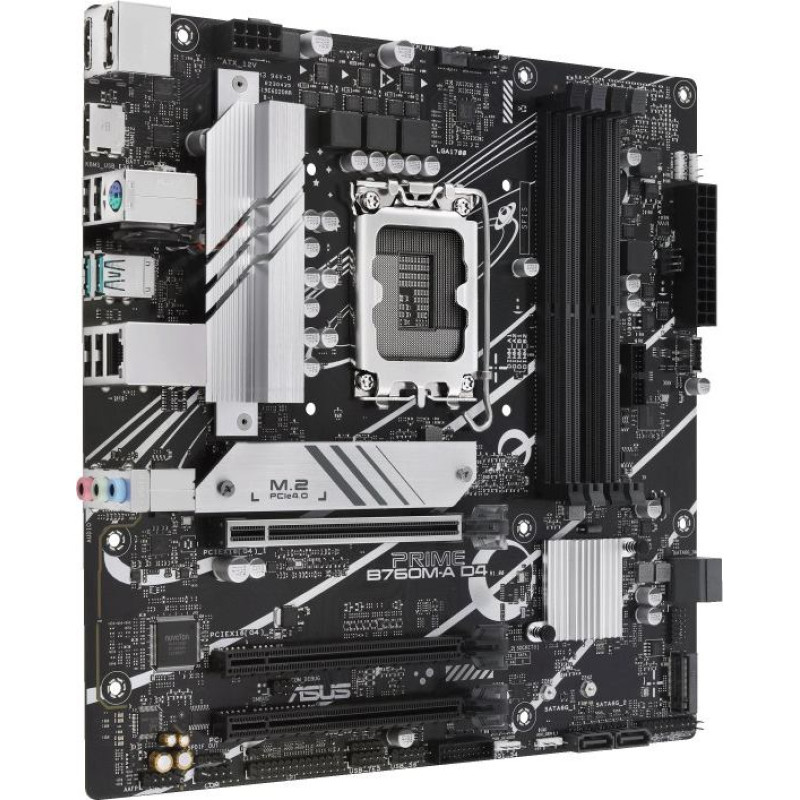

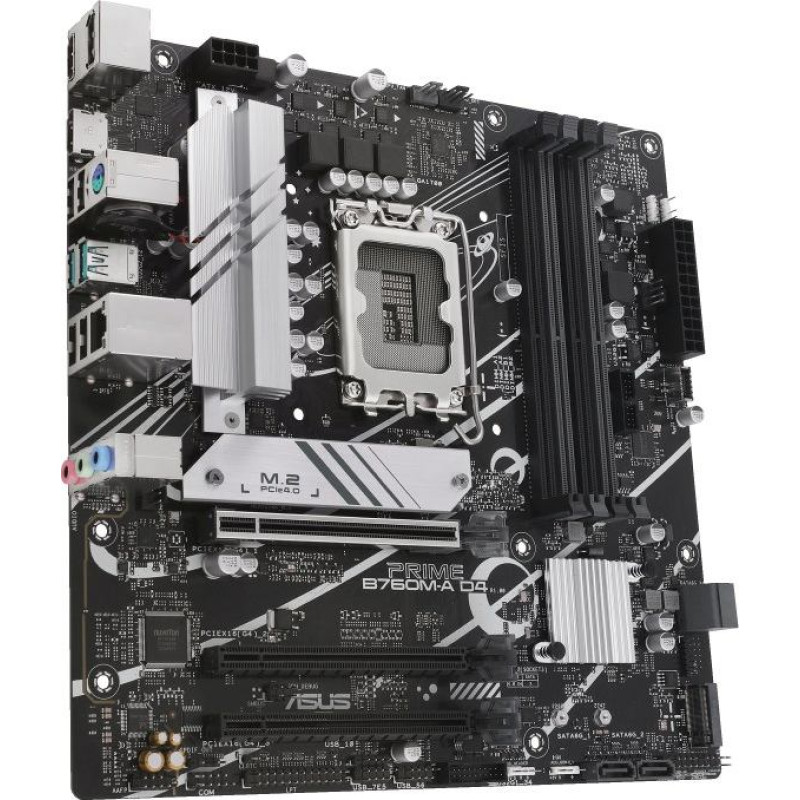

Asus PRIME B760M-A D4-CSM Intel B760 LGA 1700 micro ATX

Asus PRIME B760M-A D4-CSM Intel B760 LGA 1700 micro ATX

Availability: Delivery to the store takes 3 - 7 business days.
ID: 23073
Product Code: 90MB1D00-M1EAYC
Barcode 4711081984061
115.69€
(Ex Tax: 93.30€)
Payment options

Delivery options



Description
Description
Compatible processor seriesIntel® Core™ i5
Supported processor socketsLGA 1700
Processor manufacturerIntel
Processor socketLGA 1700
Parallel processing technology supportNot supported
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Audio output channels7.1 channels
Motherboard chipsetIntel B760
Windows operating systems supportedWindows 10 x64
Supported memory clock speed (max)5333 MHz
Unbuffered memoryYes
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds3200 MHz
Supported memory typesDDR4-SDRAM
Maximum internal memory128 GB
Number of memory slots4
ECC сompatibilityNon-ECC
Depth244 mm
Width244 mm
Wi-FiNo
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
EPS power connector (8-pin)Yes
USB 2.0 connectors2
ATX Power connector (24-pin)Yes
Front panel audio connectorYes
Number of SATA III connectors4
Number of COM connectors1
S/PDIF out connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
CPU fan connectorYes
TPM connectorYes
12V power connectorYes
Number of chassis fan connectors2
RGB LED pin headerYes
BIOS typeUEFI AMI
Cables includedSATA
Number of storage drives supported6
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
USB 2.0 ports quantity4
PS/2 ports quantity1
Ethernet LAN (RJ-45) ports1
DisplayPort version1.4
Headphone outputs3
DisplayPorts quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Microphone inYes
HDMI ports quantity2
HDMI version2.1
Number of M.2 (M) slots2
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots3
