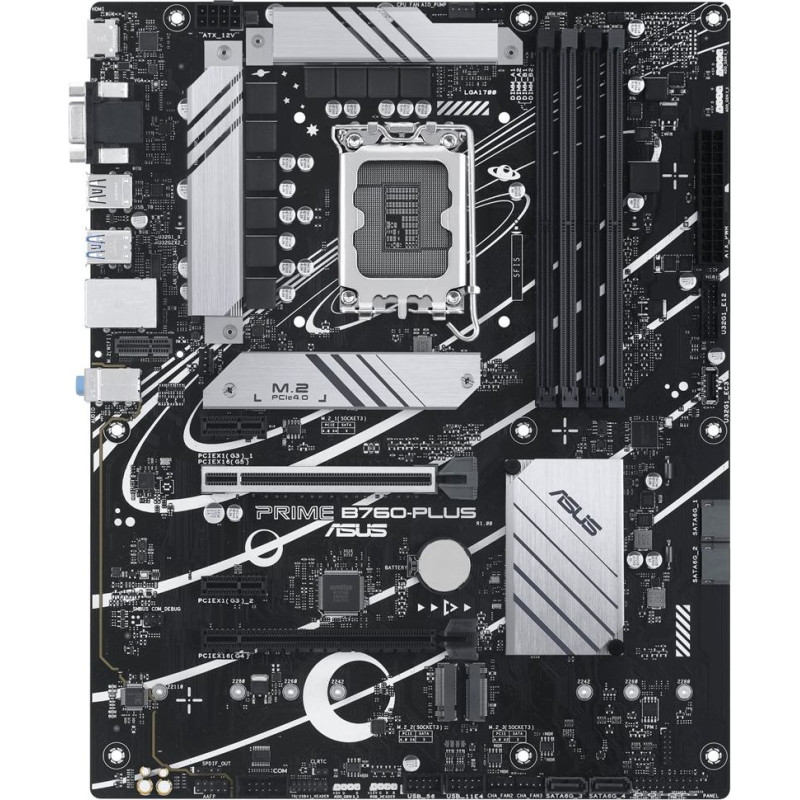

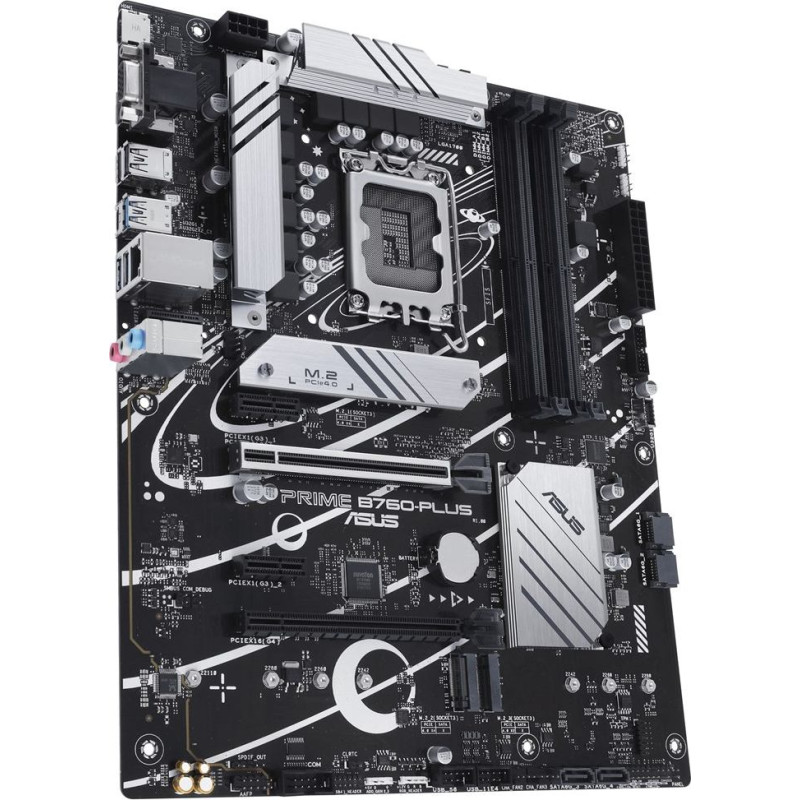

Asus PRIME B760-PLUS Intel B760 LGA 1700 ATX motherboard

Asus PRIME B760-PLUS Intel B760 LGA 1700 ATX motherboard

Availability: Delivery to the store takes 3 - 7 business days.
ID: 23077
Product Code: 90MB1EF0-M1EAY0
Barcode 4711387102985
145.61€
(Ex Tax: 117.43€)
Payment options

Delivery options



Description
Description
Compatible processor seriesIntel® Core™ i5
Processor manufacturerIntel
Supported processor socketsLGA 1700
Maximum number of SMP processors1
Processor socketLGA 1700
Parallel processing technology supportNot supported
Motherboard form factorATX
Cooling typePassive
Motherboard chipsetIntel B760
Audio output channels7.1 channels
Windows operating systems supportedWindows 11
Power source typeATX
Motherboard chipset familyIntel
ECC сompatibilityNon-ECC
Unbuffered memoryYes
Supported memory clock speeds6400
Maximum internal memory192 GB
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots4
Height36 mm
Width305 mm
Depth244 mm
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Wi-FiNo
Number of COM connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 2.0 connectors2
Peripheral (Molex) power connectors (4-pin)1
ATX Power connector (24-pin)Yes
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
Number of SATA III connectors4
Number of chassis fan connectors3
Thunderbolt headers1
TPM connectorYes
EPS power connector (8-pin)Yes
CPU fan connectorYes
RGB LED pin headerYes
12V power connectorYes
BIOS typeUEFI AMI
Package depth266 mm
Package weight1.2 kg
Package height53 mm
Package width328 mm
Cables includedSATA
RAID levels1
RAID supportYes
Number of storage drives supported7
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4
USB 2.0 ports quantity2
DisplayPort version1.4
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
DisplayPorts quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
HDMI ports quantity1
HDMI version2.1
Line-inYes
Headphone outputs1
VGA (D-Sub) ports quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
Number of M.2 (M) slots3
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Weight760 g
WarningsDo not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
