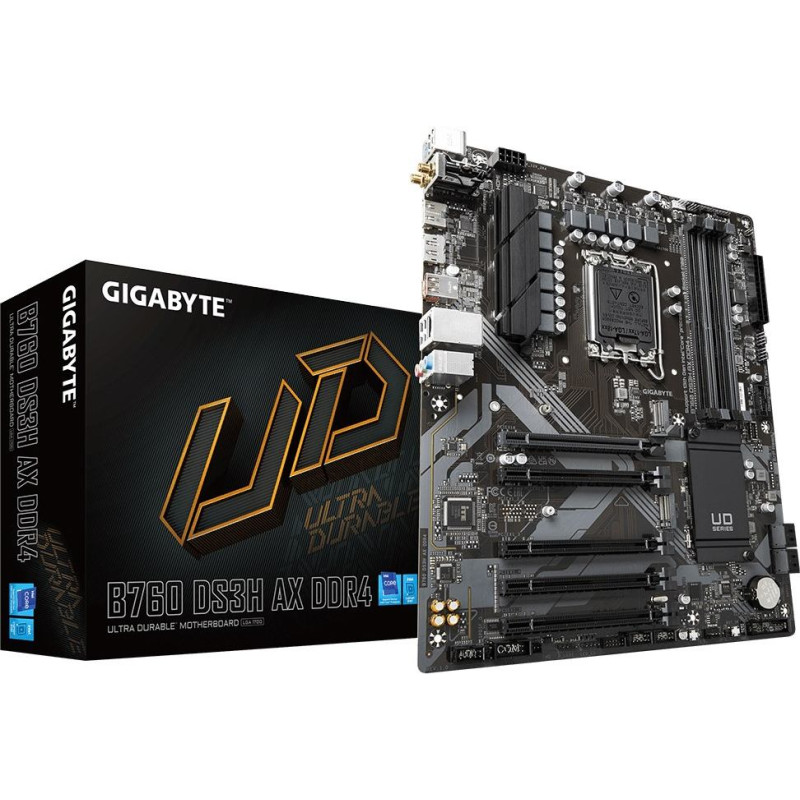

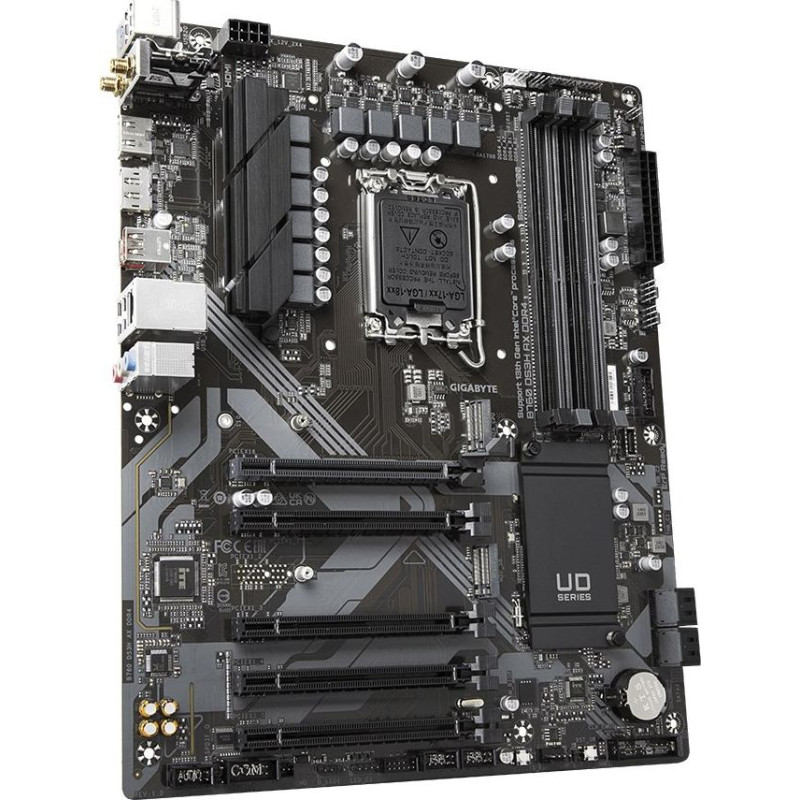

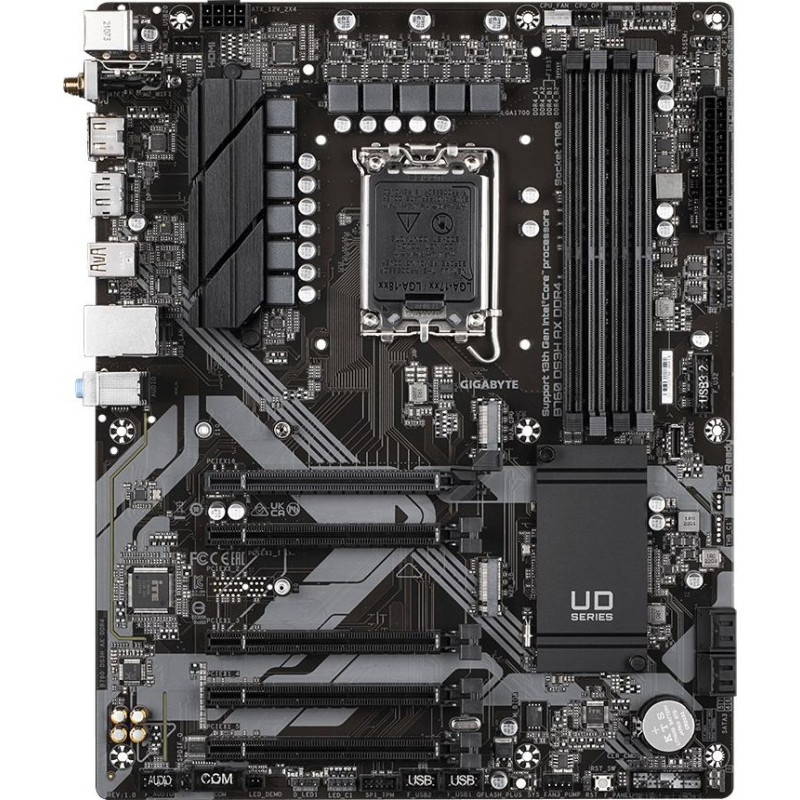

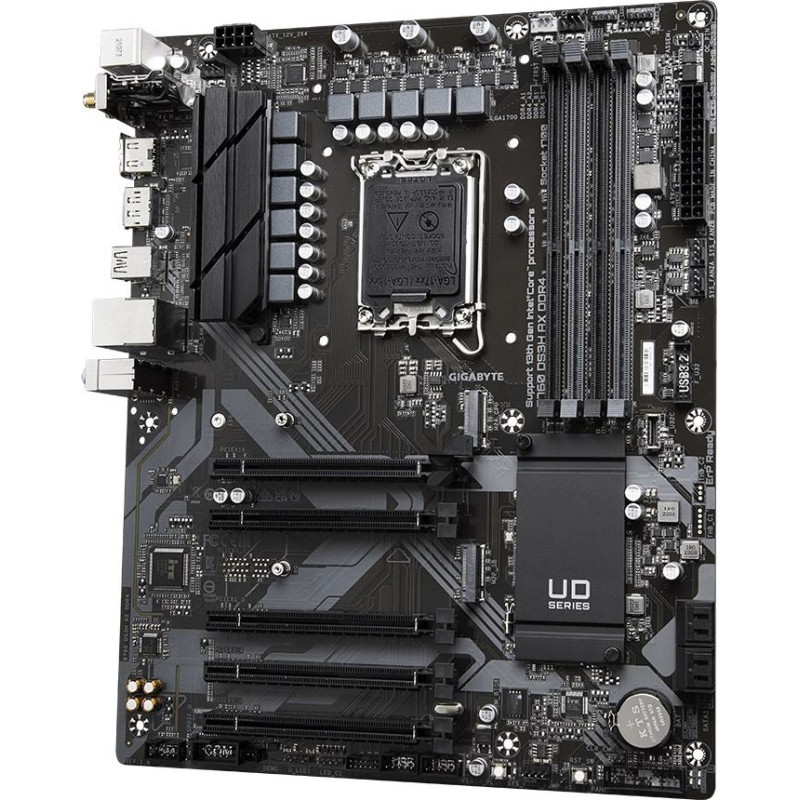

Home Computers and equipment Computer components Motherboard Gigabyte B760 DS3H AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2
Gigabyte B760 DS3H AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2

Gigabyte B760 DS3H AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2

Availability: Delivery to the store takes 3 - 7 business days.
ID: 23080
Product Code: B760 DS3H AX DDR4
Barcode 4719331850999
121.94€
(Ex Tax: 98.34€)
Payment options

Delivery options



Description
Description
Warranty period3 year(s)
Processor manufacturerIntel
Compatible processor seriesIntel® Core™ i7
Maximum internal memory supported by processor128 GB
Supported processor socketsLGA 1700
Processor socketLGA 1700
HDCPYes
DirectX version12.0
Parallel processing technology supportNot supported
Maximum resolution4096 x 2304 pixels
Audio output channels7.1 channels
Windows operating systems supportedWindows 11 x64
Motherboard chipset familyIntel
PC health monitoringFan
Motherboard chipsetIntel B760 Express
Motherboard form factorATX
Supported memory clock speeds4600
Memory channelsDual-channel
Supported memory module capacities2GB
Memory slots typeDIMM
Unbuffered memoryYes
Supported memory clock speed (max)5333 MHz
Maximum internal memory128 GB
Number of memory slots4
Supported memory typesDDR4-SDRAM
Height35 mm
Width305 mm
Depth244 mm
BluetoothYes
Ethernet LANYes
Wi-Fi standards802.11b
Wi-FiYes
Ethernet interface typeGigabit Ethernet
Top Wi-Fi standardWi-Fi 6E (802.11ax)
WLAN controller modelRZ608
Bluetooth version5.2
TPM connectorYes
EPS power connector (8-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
RGB LED pin headerYes
S/PDIF out connectorYes
CPU fan connectorYes
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
Front panel audio connectorYes
USB 2.0 connectors2
Front panel connectorYes
Serial port headers1
12V power connectorYes
Clear CMOS jumperYes
BIOS typeUEFI AMI
Desktop Management Interface (DMI) version2.7
Package width335 mm
Package weight1.49 kg
Package depth270 mm
Package height80 mm
Bundled softwareNorton Internet Security
Cables includedSATA
Batteries includedYes
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
RAID supportYes
Supported storage drive typesHDD & SSD
Number of HDDs supported4
Number of storage drives supported6
DisplayPorts quantity1
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
Headphone outputs3
USB connector typeUSB Type-A
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
PS/2 ports quantity1
DisplayPort version1.2
WiFi-AP antenna jack2
HDMI version2.0
USB 3.2 Gen 2x2 Type-C ports quantity1
Microphone inYes
USB 2.0 ports quantity4
PCI Express x16 slots5
Number of M.2 (M) slots2
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Battery weight3 g
Lithium weight per battery0.07 g
Country of originChina
Products per shipping (inner) case1 pc(s)
