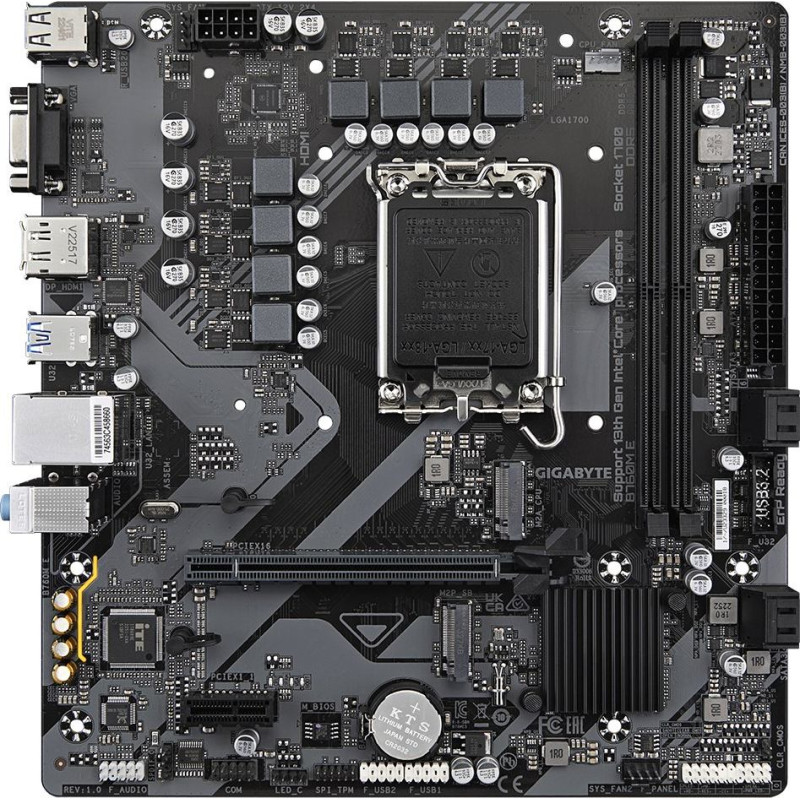

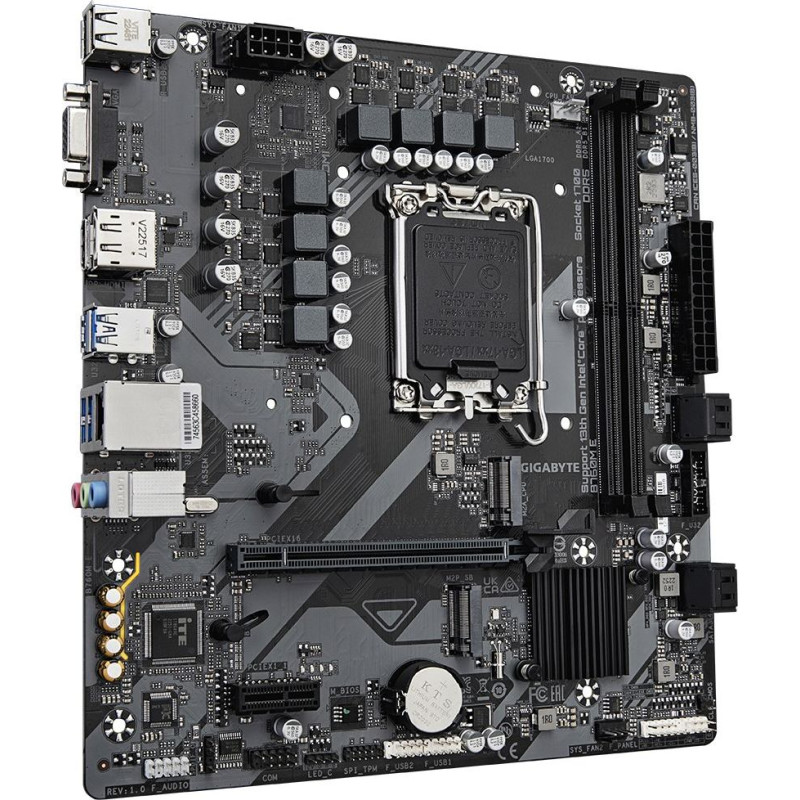

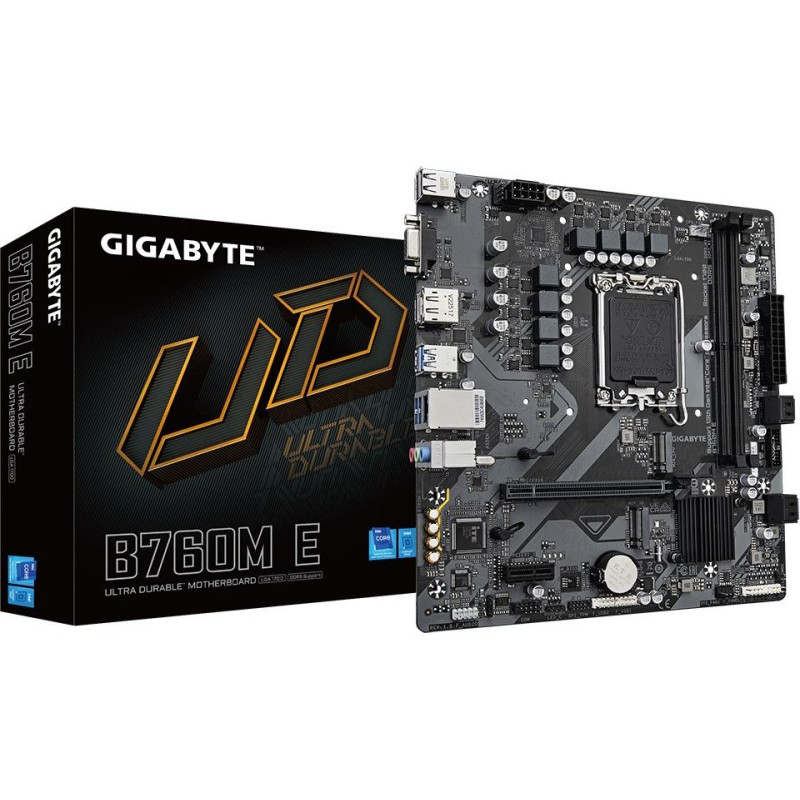

Gigabyte B760M E Motherboard - Supports 14th Gen. Intel Core CPUs, 6+1+1 phases VRM, up to 7200MHz DDR5 (OC), 2xPCIe 4.0 M.2, 1 GbE LAN, USB 3.2 Gen 1

Gigabyte B760M E Motherboard - Supports 14th Gen. Intel Core CPUs, 6+1+1 phases VRM, up to 7200MHz DDR5 (OC), 2xPCIe 4.0 M.2, 1 GbE LAN, USB 3.2 Gen 1

Availability: Delivery to the store takes 3 - 7 business days.
ID: 23088
Product Code: B760M E
Barcode 4719331856052
99.30€
(Ex Tax: 80.08€)
Payment options

Delivery options



Description
Description
Warranty period3 year(s)
Compatible processor seriesIntel Core i3 14th Gen
Processor manufacturerIntel
Supported processor socketsLGA 1700
Processor socketLGA 1700
Maximum resolution4096 x 2160 pixels
HDCPYes
Parallel processing technology supportNot supported
Cooling typePassive
Windows operating systems supportedWindows 10 x64
PC health monitoringWater cooling
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel B760
Audio output channels7.1 channels
Audio chipRealtek ALC897
Power source typeATX
Supported memory typesDDR5-SDRAM
Supported memory clock speed (max)7200 MHz
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
ECC сompatibilityECC & Non-ECC
Maximum internal memory per slot64 GB
Unbuffered memoryYes
Supported memory clock speeds6800
Maximum internal memory128 GB
Depth215 mm
Height35 mm
Width230 mm
Wi-FiNo
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Number of EPS power connectors (8-pin)1
Number of CPU fan connectors1
Number of RGB LED pin headers1
CPU fan connectorYes
RGB LED pin headerYes
EPS power connector (8-pin)Yes
12V power connectorYes
TPM connectorYes
Front panel connectorYes
Number of chassis fan connectors2
ATX Power connector (24-pin)Yes
Front panel audio connectorYes
Number of SATA III connectors4
S/PDIF out connectorYes
Serial port headers1
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Clear CMOS jumperYes
BIOS typeUEFI AMI
Desktop Management Interface (DMI) version2.7
Package depth265 mm
Package width265 mm
Package height54 mm
Package weight900 g
Bundled softwareNorton® Internet Security (OEM version)LAN bandwidth management software
Screws includedYes
RAID levels1
Number of HDDs supported4
Number of storage drives supported6
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
RAID supportYes

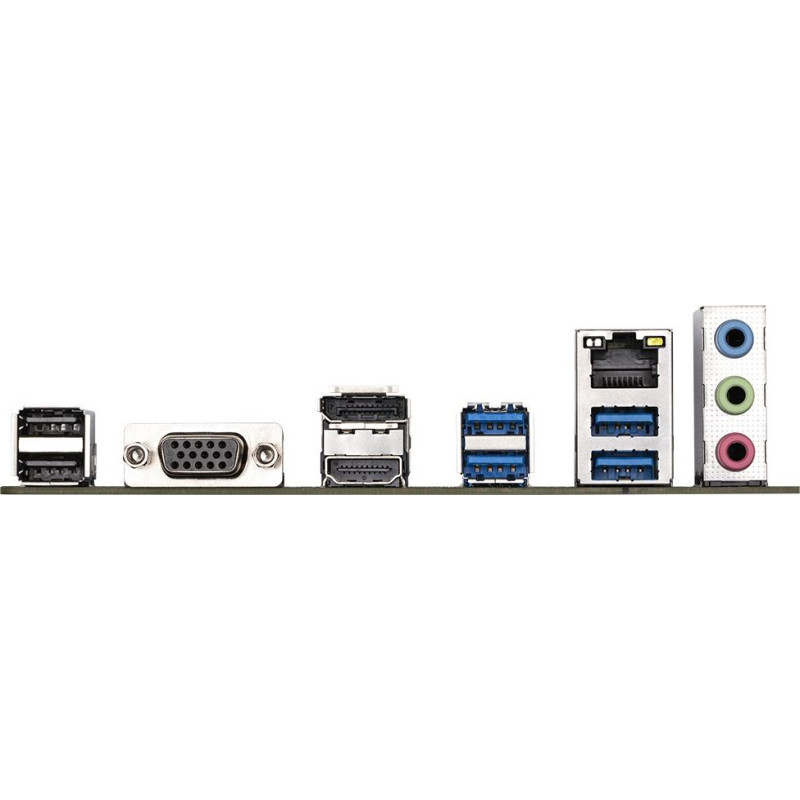

HDMI ports quantity1
Microphone inYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Headphone outputs1
HDMI version2.1
Line-inYes
VGA (D-Sub) ports quantity1
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
DisplayPort version1.2
1st M.2 largest key size2280
1st M.2 highest PCI Express generation4.0
Number of M.2 (M) slots2
PCI Express x16 (Gen 4.x) slots1
PCI Express x1 (Gen 3.x) slots1
Battery typeCR2032
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Number of battery cells1
Battery weight3 g
Lithium weight per battery0.07 g
