Home Computers and equipment Computer components Motherboard Asus PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX

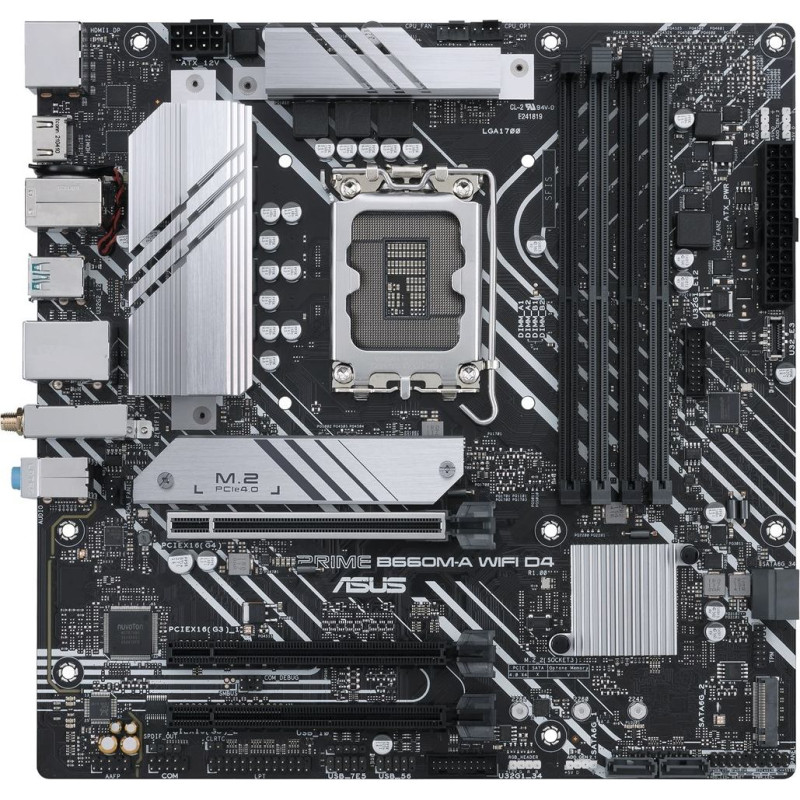

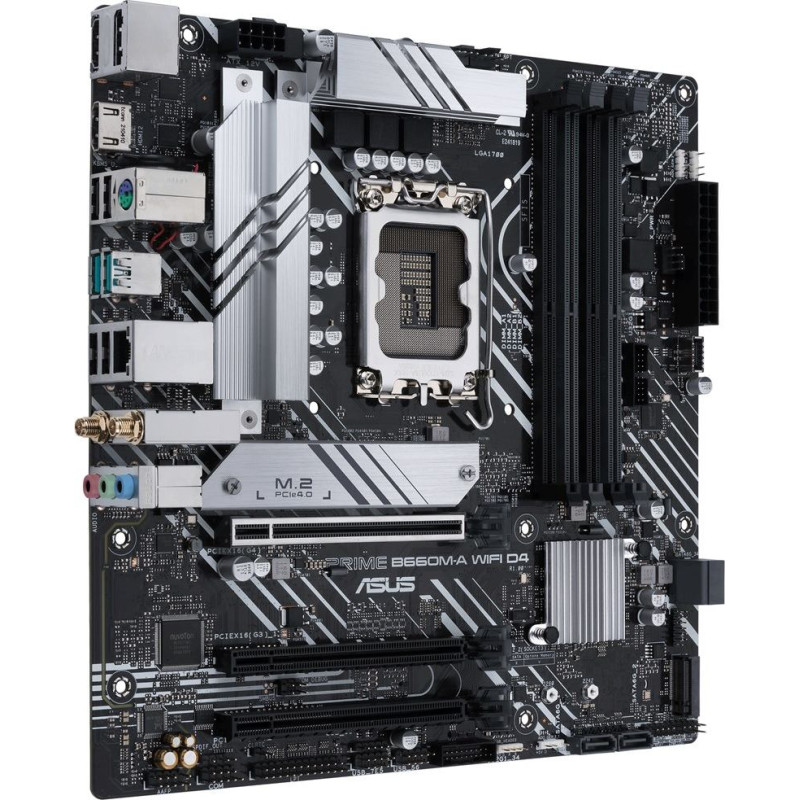

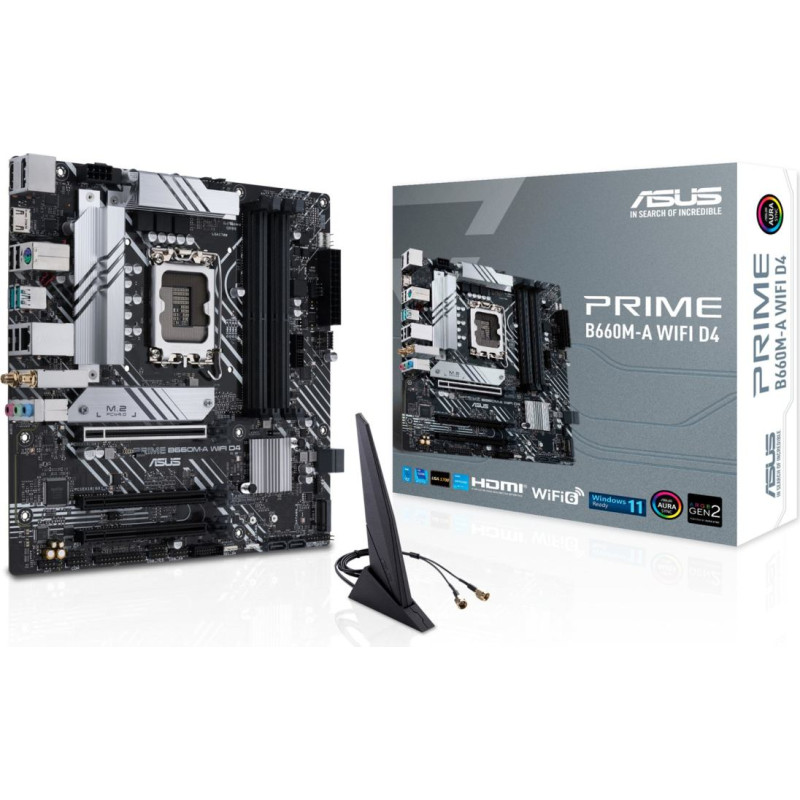

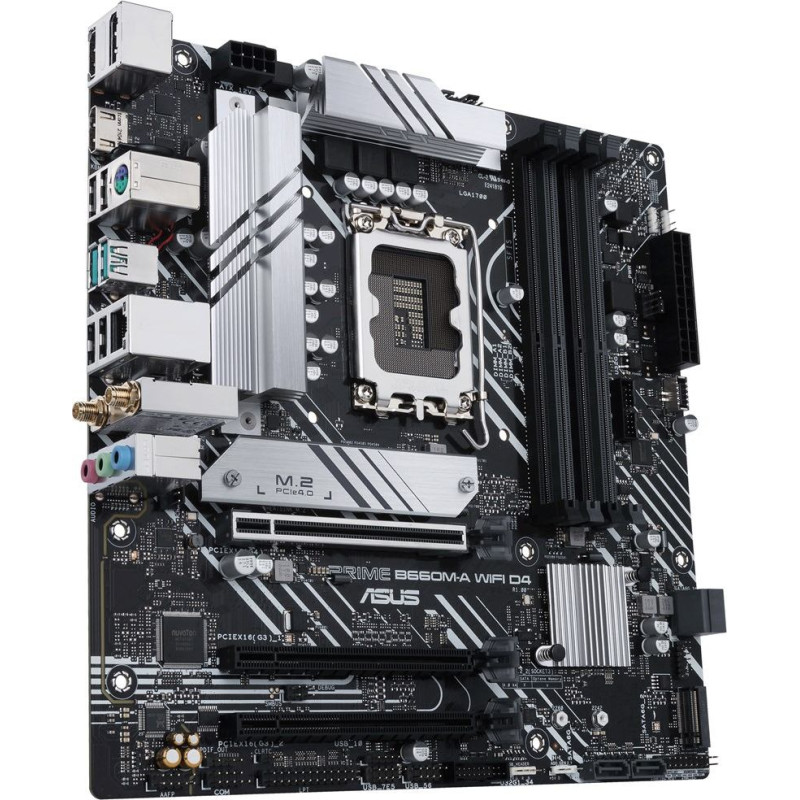

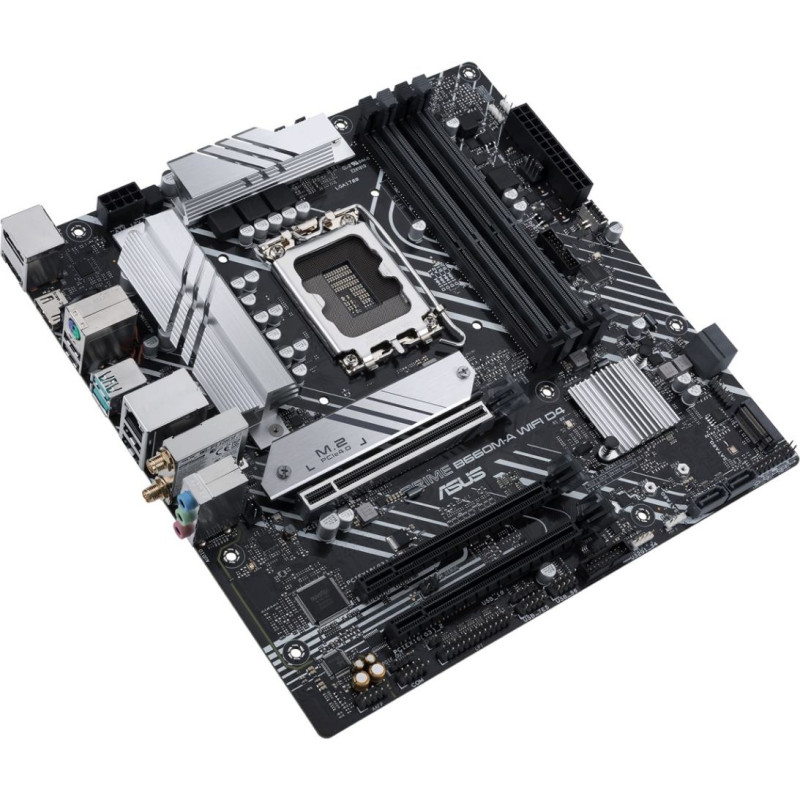

Asus PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX

Asus PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX

Availability: Delivery to the store takes 3 - 7 business days.
ID: 23119
Product Code: 90MB1AE0-M1EAY0
Barcode 4711081518105
122.86€
(Ex Tax: 99.08€)
Payment options

Delivery options



Description
Description
Maximum number of SMP processors1
Processor socketLGA 1700
Compatible processor seriesIntel® Core™ i7
Processor manufacturerIntel
Number of displays supported3
Motherboard chipset familyIntel
Audio output channels7.1 channels
Audio chipRealtek ALC897
Motherboard form factormicro ATX
Motherboard chipsetIntel B660
Windows operating systems supportedWindows 10 x64
Unbuffered memoryYes
Supported memory clock speeds4600
Maximum internal memory128 GB
Number of memory slots4
Memory slots typeDIMM
Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Width244 mm
Height60 mm
Depth244 mm
BluetoothYes
Wi-Fi standards802.11a
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Ethernet LANYes
Bluetooth version5.2
Wi-FiYes
Ethernet interface typeGigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
S/PDIF out connectorYes
ATX Power connector (24-pin)Yes
Front panel audio connectorYes
Number of SATA III connectors4
USB 2.0 connectors3
Number of COM connectors1
RGB LED pin headerYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Number of chassis fan connectors2
12V power connectorYes
BIOS typeUEFI AMI
Drivers includedYes
Cables includedSATA
Supported storage drive interfacesM.2, SATA
RAID levels10
Supported storage drive typesHDD & SSD

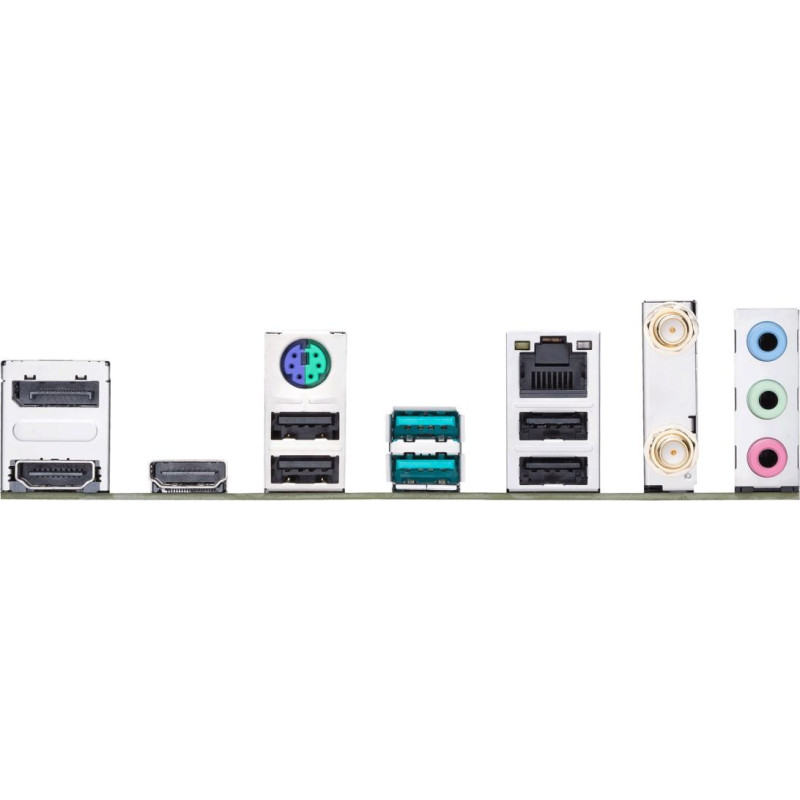

DisplayPort version1.4
DisplayPorts quantity1
USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Microphone inYes
HDMI ports quantity2
Headphone outputs1
PS/2 ports quantity1
HDMI version2.1
Number of M.2 (M) slots2
PCI Express x16 (Gen 3.x) slots2
PCI Express x16 (Gen 4.x) slots1
Weight819 g
Harmonized System (HS) code84733020
WarningsAvoid direct contact with electronics to prevent electrostatic damage.
