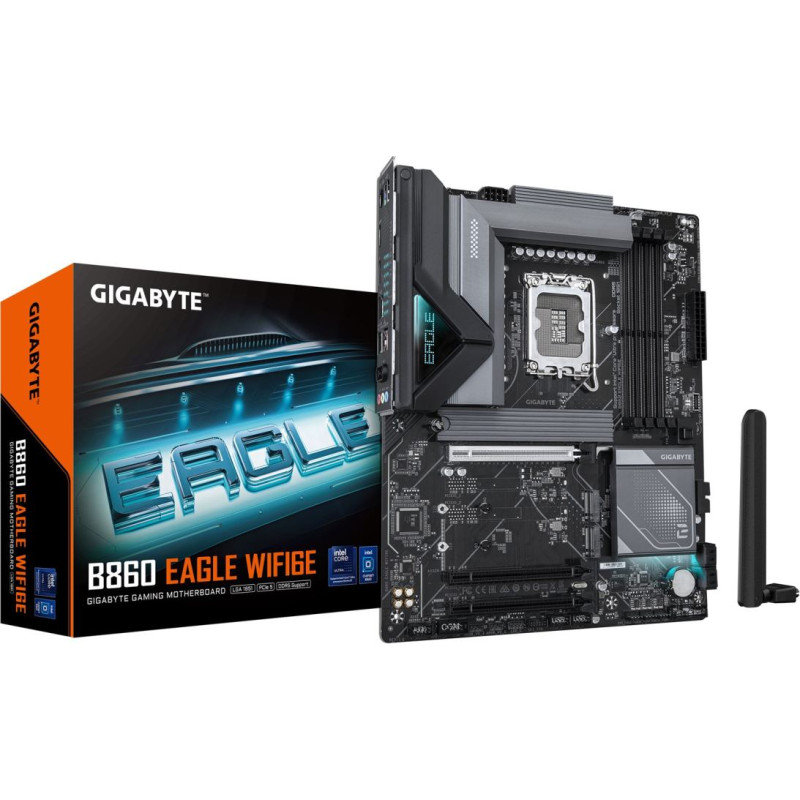

Home Computers and equipment Computer components Motherboard Gigabyte B860 EAGLE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2
Gigabyte B860 EAGLE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2

Gigabyte B860 EAGLE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2

Availability: Out Of Stock
ID: 23170
Product Code: B860 EAGLE WIFI6E
Barcode 4719331866822
163.12€
(Ex Tax: 131.55€)
Payment options

Delivery options



Description
Description
Warranty period3 year(s)
Supported processor socketsLGA 1851
Processor manufacturerIntel
Compatible processor seriesIntel® Core™ Ultra (Series 1)
Processor socketLGA 1851 (Socket V1)
DirectX version12.0
Parallel processing technology supportNot supported
HDCPYes
Maximum resolution4096 x 2160 pixels
Audio chipRealtek ALC897
Product colourDark brown
Motherboard chipsetIntel B860
Audio output channels7.1 channels
Power source typeATX
PC health monitoringTemperature
Motherboard chipset familyIntel
Windows operating systems supportedWindows 11 x64
Cooling typePassive
Motherboard form factorATX
Maximum internal memory per slot64 GB
ECC сompatibilityECC & Non-ECC
Unbuffered memoryYes
Maximum internal memory256 GB
Supported memory clock speeds9066 MHz
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speed (max)9066 MHz
Width305 mm
Height35 mm
Depth244 mm
LAN controllerRealtek RTL8125D
BluetoothYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-FiYes
Wi-Fi standardsWi-Fi 4 (802.11n)
Bluetooth version5.3
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
WLAN controller modelIntel Wi-Fi 6E AX211
Number of RGB LED pin headers4
Number of CPU fan connectors2
Number of EPS power connectors (8-pin)1
Number of water pump connectors3
S/PDIF out connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
RGB LED pin headerYes
USB 2.0 connectors2
Front panel connectorYes
TPM connectorYes
CPU fan connectorYes
ATX Power connector (24-pin)Yes
Number of chassis fan connectors4
BIOS typeUEFI AMI
Desktop Management Interface (DMI) version2.7
Clear CMOS jumperYes
Package weight1.92 kg
Package depth270 mm
Package width335 mm
Package height80 mm
Bundled softwareNorton Internet Security (OEM version) LAN bandwidth management software
Screws includedYes
Antenna includedYes
Batteries includedYes
Supported storage drive typesHDD & SSD
RAID levels10
Number of storage drives supported7
Number of HDDs supported4
Supported storage drive interfacesM.2, SATA III
RAID supportYes
DisplayPort version2.1
Line-inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
DisplayPorts quantity1
WiFi-AP antenna jack2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 2.0 ports quantity4
Microphone inYes
HDMI ports quantity1
HDMI version2.1
USB 3.2 Gen 2x2 Type-C ports quantity1
3rd M.2 largest key size25110
2nd M.2 largest key size25110
1st M.2 largest key size25110
3rd M.2 highest PCI Express generation4.0
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation4.0
Number of M.2 (M) slots3
PCI Express x16 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots1
Lithium weight per battery0.07 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Battery weight3 g
Weight1.72 kg
Country of originChina
Products per shipping (inner) case1 pc(s)
WarningsDo not open or modify the motherboard to prevent damage.
