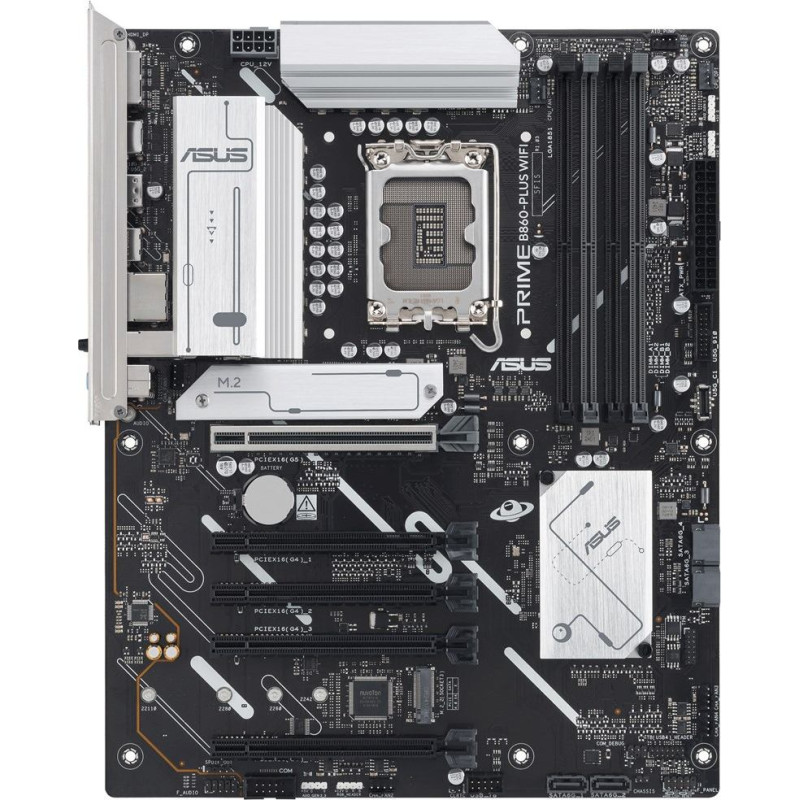

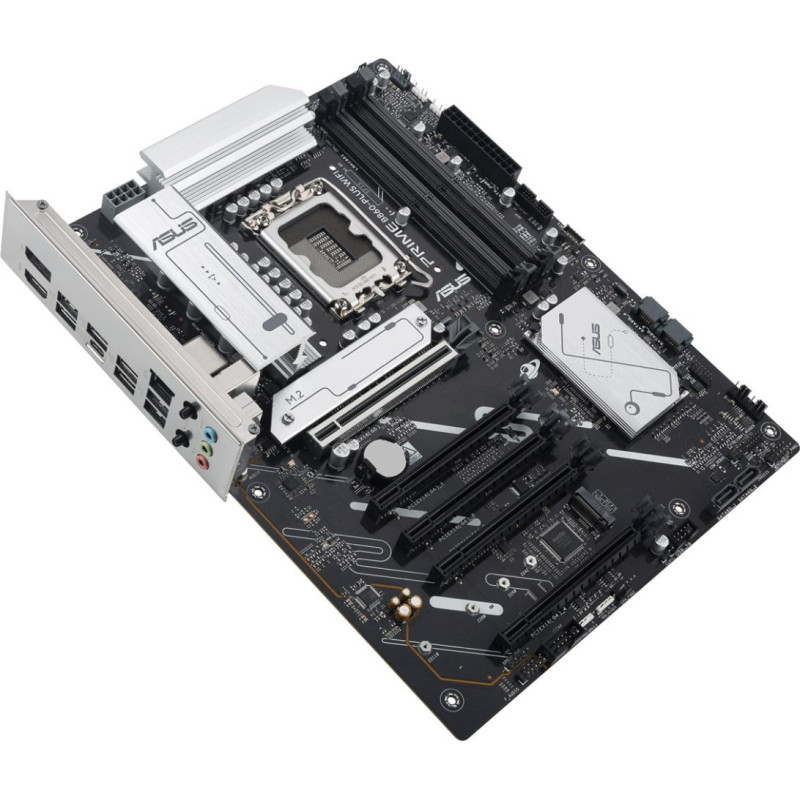

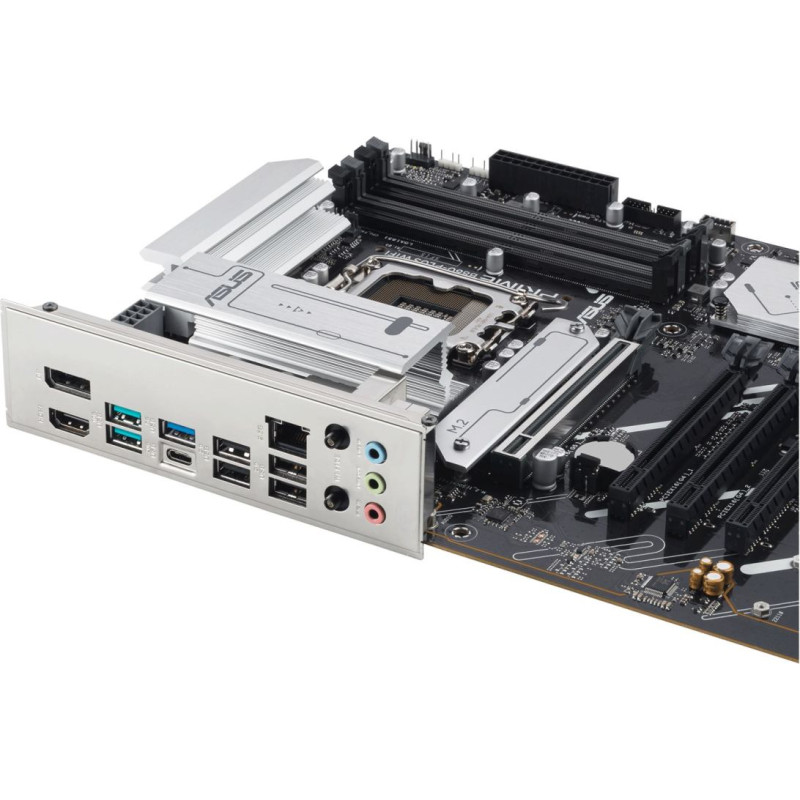

Asus PRIME B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX

Asus PRIME B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX

Availability: Delivery to the store takes 3 - 7 business days.
ID: 23171
Product Code: 90MB1K50-M0EAY0
Barcode 4711387814697
203.52€
(Ex Tax: 164.13€)
Payment options

Delivery options



Description
Description
Supported processor socketsLGA 1851
Compatible processor seriesIntel Core Ultra (Series 2)
Processor socketLGA 1851 (Socket V1)
Processor manufacturerIntel
Parallel processing technology supportNot supported
On-board graphics cardNo
Windows operating systems supportedWindows 11
Audio output channels7.1 channels
Product colourBlack
Motherboard chipsetIntel B860
Motherboard form factorATX
Motherboard chipset familyIntel
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Maximum internal memory256 GB
ECC сompatibilityNon-ECC
Width305 mm
Depth244 mm
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Ethernet LANYes
Wi-Fi standardsWi-Fi 6E (802.11ax)
Wi-FiYes
BluetoothYes
Bluetooth version5.3
Ethernet interface type2.5 Gigabit Ethernet
Front panel connectorYes
RGB LED pin headerYes
ATX Power connector (24-pin)Yes
Thunderbolt headers1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Front panel audio connectorYes
Chassis intrusion connectorYes
Number of COM connectors1
USB 2.0 connectors1
TPM connectorYes
CPU fan connectorYes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
S/PDIF out connectorYes
12V power connectorYes
Number of chassis fan connectors4
BIOS typeUEFI AMI
Package weight1.66 kg
Package width377 mm
Package height302 mm
Package depth372 mm
Cables includedSATA
Antenna includedYes
Screws includedYes
Number of storage drives supported6
Number of HDDs supported4
RAID supportYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID levels10

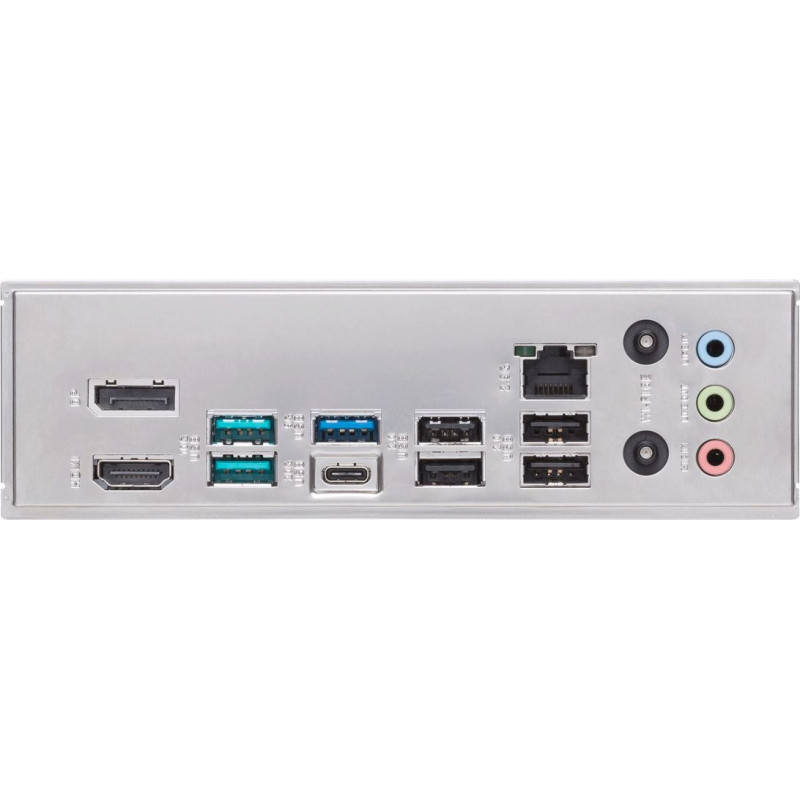

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
DisplayPorts quantity1
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
WiFi-AP antenna jack1
USB 3.2 Gen 2x2 Type-C ports quantity1
PCI Express x16 (Gen 4.x) slots4
Number of M.2 (M) slots2
PCI Express x16 (Gen 5.x) slots1
1st M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
WarningsWhen disposing of the product, follow local regulations for the recycling of electronics.
