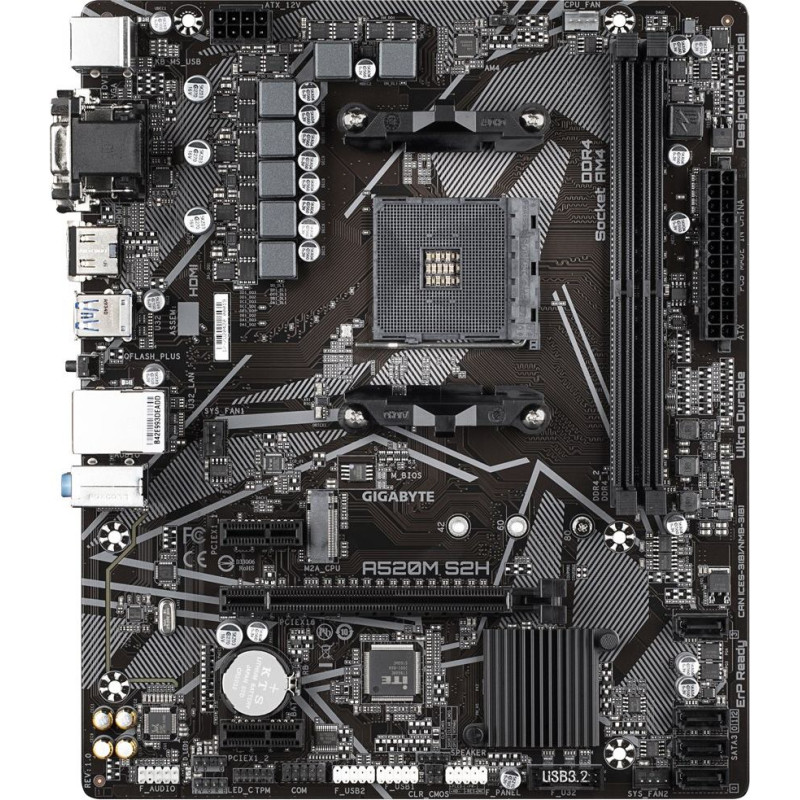

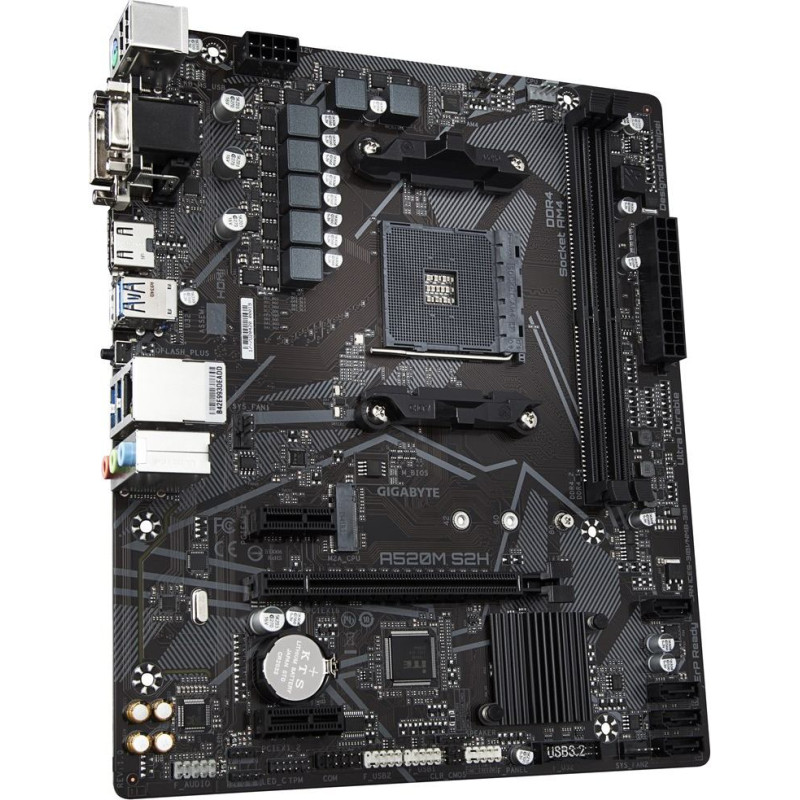

Gigabyte A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1

Gigabyte A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1

Availability: Delivery to the store takes 3 - 7 business days.
ID: 23189
Product Code: A520M S2H
Barcode 4719331809720
60.76€
(Ex Tax: 49.00€)
Payment options

Delivery options



Description
Description
Warranty period3 year(s)
Maximum number of SMP processors1
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 3000 Series
Processor socketSocket AM4
Supported processor socketsSocket AM4
Maximum internal memory supported by processor64 GB
HDCPYes
On-board graphics cardNo
Motherboard chipset familyAMD
Product colourBlack
Motherboard form factormicro ATX
Audio output channels7.1 channels
Motherboard chipsetAMD A520
Supported memory clock speeds2400
Maximum internal memory64 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR4-SDRAM
ECC сompatibilityECC & Non-ECC
Width244 mm
Depth205 mm
Height35 mm
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Wi-FiNo
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Power fan connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
RGB LED pin headerYes
Number of chassis fan connectors2
Clear CMOS buttonYes
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
BIOS typeUEFI AMI
Package weight740 g
Package width265 mm
Package depth235 mm
Package height52 mm
Batteries includedYes
Supported storage drive interfacesM.2, PCI Express 3.0, SATA
RAID supportYes
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
DVI-D ports quantity1
PS/2 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
VGA (D-Sub) ports quantity1
PCI Express x16 (Gen 3.x) slots1
PCI Express x1 (Gen 3.x) slots2
Number of M.2 (M) slots1
Number of battery cells1
Battery typeCR2032
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery weight3 g
Lithium weight per battery0.07 g
Country of originChina
Products per shipping (inner) case1 pc(s)
Harmonized System (HS) code84733020
WarningsAvoid direct contact with sensitive electronic components.
