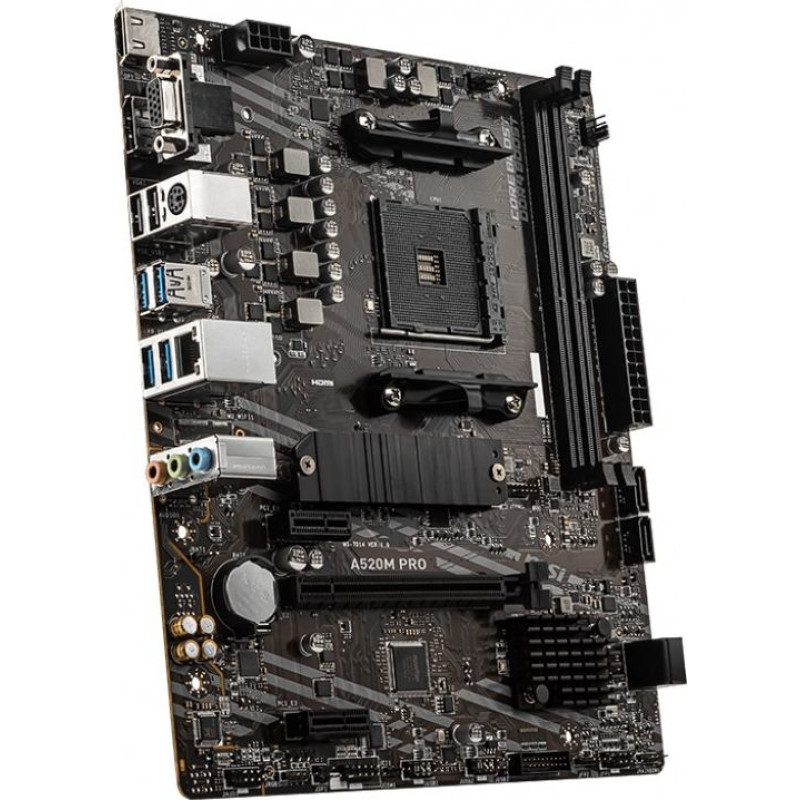

MSI A520M PRO Socket AM4 micro ATX

MSI A520M PRO Socket AM4 micro ATX

Availability: Delivery to the store takes 3 - 7 business days.
ID: 23193
Product Code: A520M PRO AM4 2DDR4
Barcode 4719072755492
62.29€
(Ex Tax: 50.23€)
Payment options

Delivery options



Description
Description
Compatible processor series3rd Generation AMD Ryzen™ 7
Processor socketSocket AM4
Maximum number of SMP processors1
Processor manufacturerAMD
Maximum resolution4096 x 2160 pixels
Audio chipRealtek ALC892
Motherboard form factormicro ATX
Number of mounting holes6
Motherboard chipset familyAMD
Audio output channels7.1 channels
Power source typeATX
Memory slots typeDIMM
Unbuffered memoryNo
Memory channelsDual-channel
Supported memory clock speeds1866
Number of memory slots2
Maximum internal memory64 GB
Supported memory typesDDR4-SDRAM
Width244 mm
Depth210 mm
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8111H
Wi-FiNo
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Front panel connectorYes
CPU fan connectorYes
Number of SATA III connectors4
USB 2.0 connectors2
Front panel audio connectorYes
Chassis intrusion connectorYes
Total number of SATA connectors4
ATX Power connector (24-pin)Yes
Number of chassis fan connectors1
Supported storage drive typesHDD & SSD
Supported storage drive interfacesPCI Express 3.0, Serial ATA

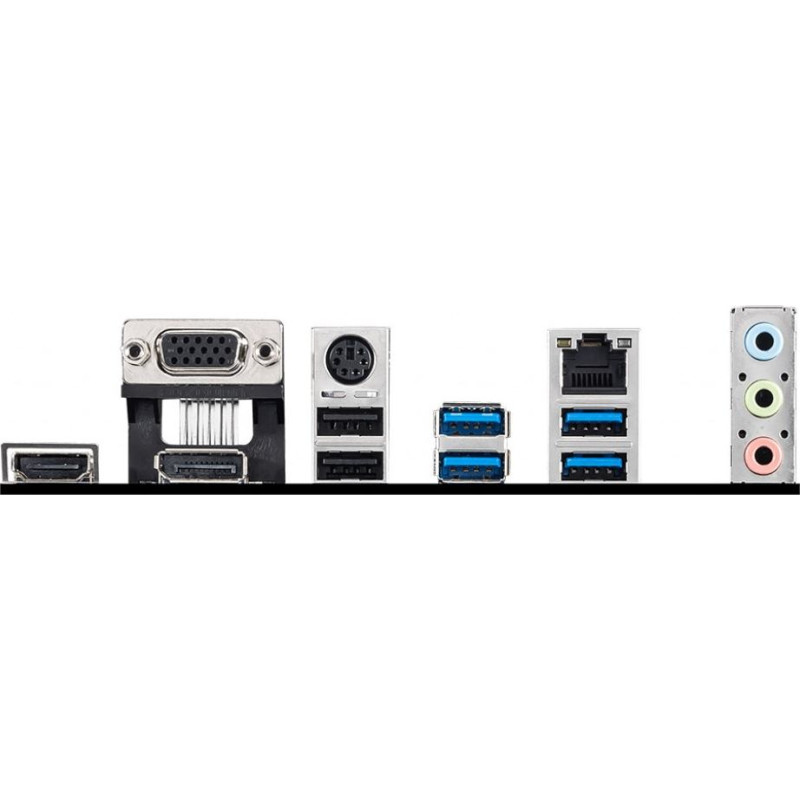

DisplayPorts quantity1
PS/2 ports quantity1
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
VGA (D-Sub) ports quantity1
Microphone inYes
Number of M.2 (M) slots1
PCI Express x16 slots1
PCI Express x1 (Gen 3.x) slots2
