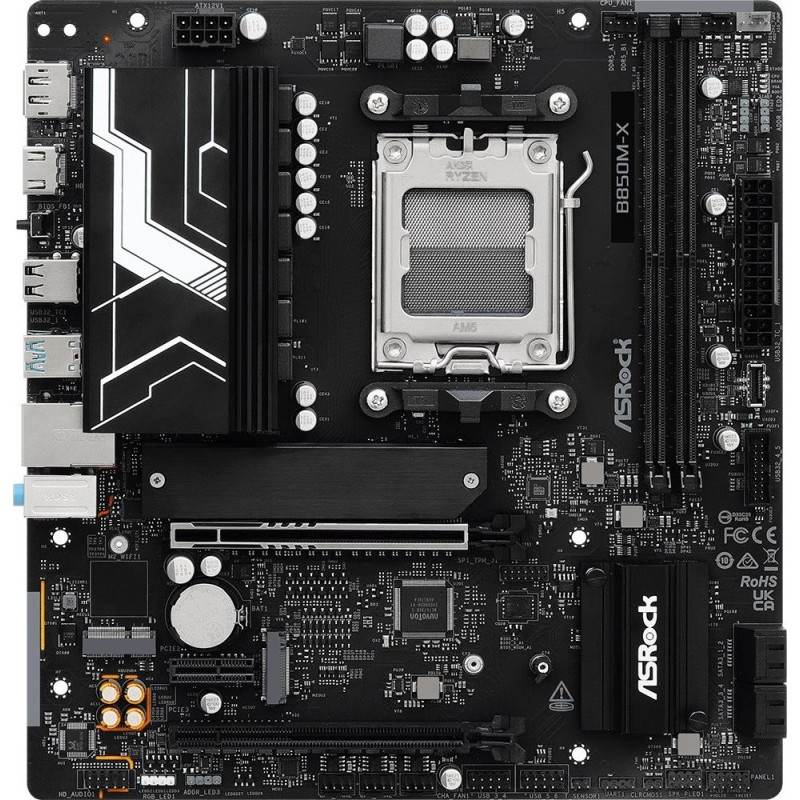

Asrock B850M-X R2 AMD B850 Socket AM5 micro ATX

Asrock B850M-X R2 AMD B850 Socket AM5 micro ATX

Availability: Out Of Stock
ID: 23260
Product Code: B850M-X R2.0
Barcode 4711581490758
117.40€
(Ex Tax: 94.68€)
Payment options

Delivery options



Description
Description
Processor socketSocket AM5
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 7000 Series
Supported processor socketsSocket AM5
Maximum resolution3840 x 2160 pixels
Parallel processing technology supportNot supported
HDCPYes
CertificationFCC, CE, ErP/EuP
Audio chipRealtek ALC897
Product colourBlack
Audio output channels7.1 channels
Motherboard chipsetAMD B850
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Windows operating systems supportedWindows 10 x64
Maximum internal memory128 GB
Memory channelsDual-channel
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Number of memory slots2
ECC сompatibilityECC & Non-ECC
Depth226 mm
Width244 mm
LAN controllerDragon RTL8125BG
Ethernet LANYes
Wi-FiNo
Mobile network connectionNo
Ethernet interface type2.5 Gigabit Ethernet
USB 2.0 connectors2
CPU fan connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
RGB LED pin headerYes
EPS power connector (8-pin)Yes
TPM connectorYes
USB Type-C ports quantity1
Number of chassis fan connectors3
12V power connectorYes
Number of CPU fan connectors2
Number of RGB LED pin headers1
Number of EPS power connectors (8-pin)1
BIOS typeUEFI AMI
Screws includedYes
Cables includedSATA
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive typesHDD & SSD
RAID supportYes

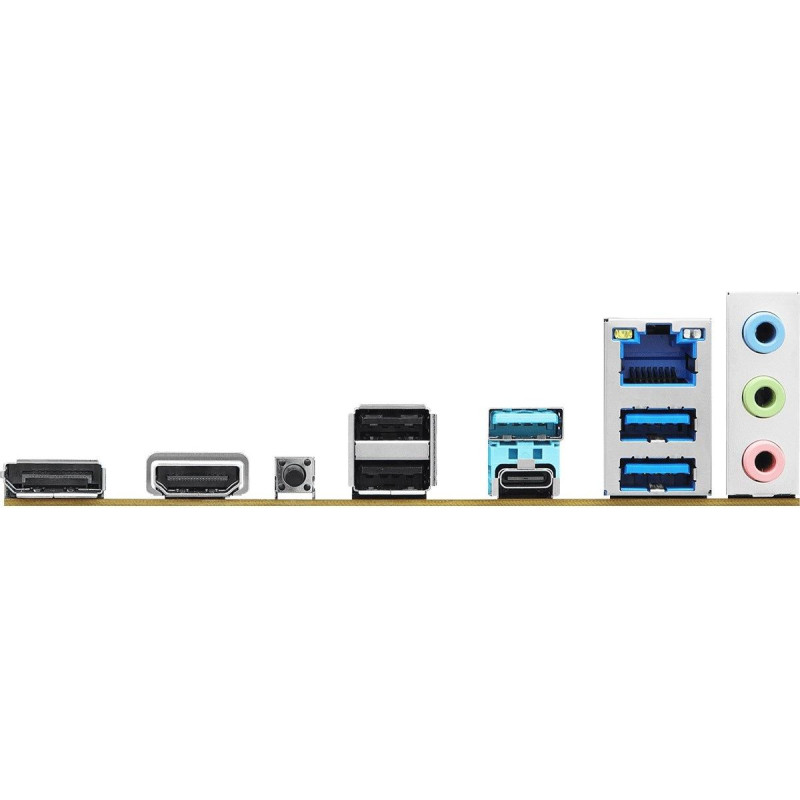

DisplayPorts quantity1
DisplayPort version1.4
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
Microphone inYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI version2.1
Line-inYes
Audio output3.5 mm
HDMI ports quantity1
Number of M.2 (M) slots2
PCI Express x16 (Gen 5.x) slots1
PCI Express x1 (Gen 4.x) slots1
Number of M.2 (E) slots1
PCI Express x16 (Gen 4.x) slots1
2nd M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
WarningsAvoid contact with liquids to prevent electronic damage.
