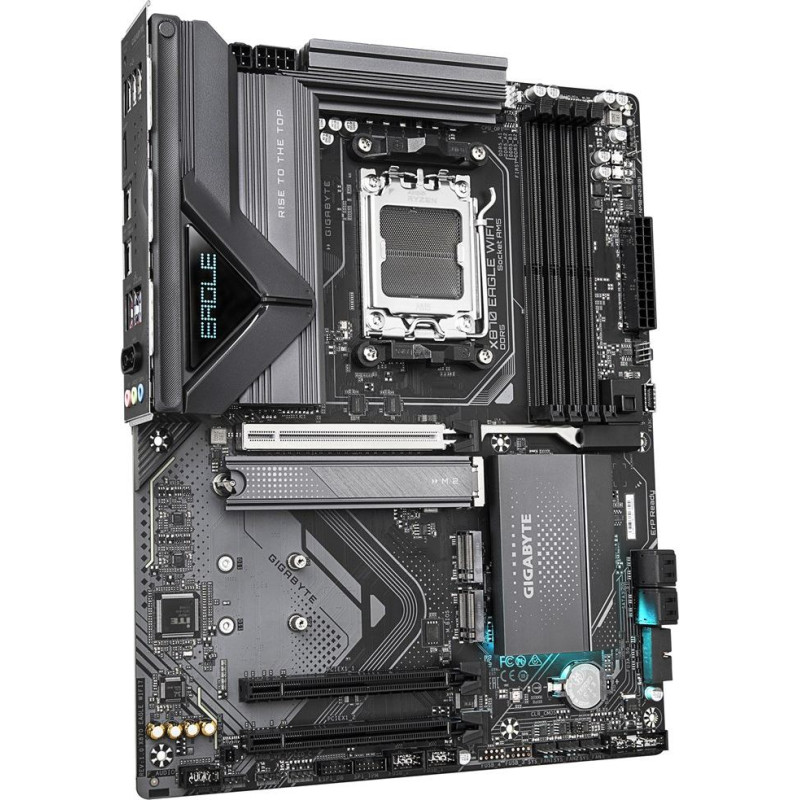

Home Computers and equipment Computer components Motherboard Gigabyte X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4
Gigabyte X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4

Gigabyte X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4

Availability: Delivery to the store takes 3 - 7 business days.
ID: 24725
Product Code: X870 EAGLE WIFI7
Barcode 4719331864996
242.87€
(Ex Tax: 195.86€)
Payment options

Delivery options



Description
Description
Warranty period3 year(s)
Supported processor socketsSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series
Processor socketSocket AM5
Processor manufacturerAMD
Maximum internal memory supported by processor256 GB
DirectX version12.0
Parallel processing technology supportNot supported
On-board graphics cardNo
Product colourBlack
Audio output channels7.1 channels
PC health monitoringTemperature
Motherboard form factorATX
Windows operating systems supportedWindows 11 x64
Audio chipRealtek ALC897
Motherboard chipset familyAMD
Motherboard chipsetAMD X870
Supported memory clock speeds7600
Maximum internal memory256 GB
Unbuffered memoryYes
Supported memory typesDDR5-SDRAM
Supported memory module capacities48GB
Memory channelsDual-channel
Supported memory clock speed (max)8200 MHz
Maximum internal memory per slot64 GB
Number of memory slots4
Memory slots typeDIMM
ECC сompatibilityNon-ECC
Height35 mm
Depth244 mm
Width305 mm
Wi-FiYes
Ethernet LANYes
WLAN controller modelMediaTek MT7925
Wi-Fi standardsWi-Fi 7 (802.11be)
BluetoothYes
LAN controllerRealtek RTL8125
Ethernet interface type2.5 Gigabit Ethernet
Bluetooth version5.4
Top Wi-Fi standardWi-Fi 7 (802.11be)
Number of EPS power connectors (8-pin)1
Number of RGB LED pin headers4
Number of water pump connectors1
Number of SATA III connectors4
12V power connectorYes
Front panel audio connectorYes
TPM connectorYes
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
Number of chassis fan connectors4
RGB LED pin headerYes
Peripheral (Molex) power connectors (4-pin)1
USB 2.0 connectors2
Front panel connectorYes
CPU fan connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2x2 connectors1
Number of CPU fan connectors2
Clear CMOS buttonYes
BIOS typeUEFI AMI
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
Package weight1.94 kg
Package width335 mm
Package depth270 mm
Package height80 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Antenna includedYes
Batteries includedYes
Screws includedYes
Supported storage drive typesHDD & SSD
RAID supportYes
Number of HDDs supported4
Supported storage drive interfacesM.2, SATA III
RAID levels1
Number of storage drives supported7
Ethernet LAN (RJ-45) ports1
DisplayPort version1.4
Headphone outputs1
USB 2.0 ports quantity4
WiFi-AP antenna jack2
HDMI version2.1
USB4 Gen 2x2 ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
1st M.2 largest key size25110
2nd M.2 highest PCI Express generation4.0
1st M.2 highest PCI Express generation5.0
3rd M.2 highest PCI Express generation4.0
2nd M.2 largest key size25110
3rd M.2 largest key size25110
Number of M.2 (M) slots3
PCI Express x16 (Gen 5.x) slots1
PCI Express x16 (Gen 3.x) slots2
Lithium weight per battery0.07 g
Battery weight3 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Weight1.74 kg
Products per shipping (inner) case1 pc(s)
Country of originChina
WarningsDispose of in accordance with local regulations for electronic waste.
