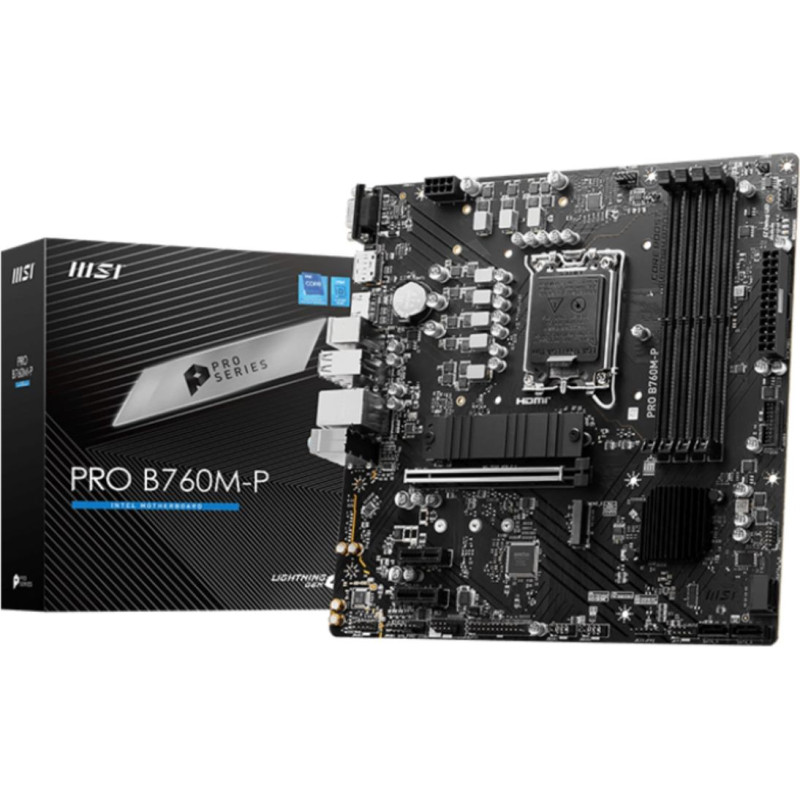

MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX

MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX

Availability: Delivery to the store takes 3 - 7 business days.
ID: 33380
Product Code: 7E02-009R
Barcode 4711377086578
118.58€
(Ex Tax: 95.63€)
Payment options

Delivery options



Description
Description
Supported processor socketsLGA 1700
Compatible processor seriesIntel® Celeron®
Processor manufacturerIntel
Processor socketLGA 1700
Audio output channels7.1 channels
Windows operating systems supportedWindows 11 x64
Motherboard chipsetIntel B760
Audio chipRealtek ALC897
Power source typeATX
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Supported memory clock speeds6000
Maximum internal memory192 GB
Unbuffered memoryYes
Supported memory typesDDR5-SDRAM
Number of memory slots4
ECC сompatibilityNon-ECC
Width243.8 mm
Depth243.8 mm
LAN controllerRealtek RTL8111H
Wi-FiNo
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Number of SATA III connectors4
Parallel connectorYes
ATX Power connector (24-pin)Yes
TPM connectorYes
Number of COM connectors1
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Front panel connectorYes
Chassis intrusion connectorYes
USB 2.0 connectors4
CPU fan connectorYes
RGB LED pin headerYes
BIOS typeUEFI AMI
Clear CMOS jumperYes
Cables includedSATA
Supported storage drive typesHDD & SSD
RAID levels1
RAID supportYes
Supported storage drive interfacesSATA III
Number of storage drives supported6
Number of HDDs supported4
DisplayPorts quantity1
USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
DisplayPort version1.4
PS/2 ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Line-inYes
Microphone inYes
HDMI version1.4
HDMI ports quantity1
VGA (D-Sub) ports quantity1
Headphone outputs1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
PCI Express x16 (Gen 4.x) slots1
PCI Express x1 (Gen 4.x) slots2
WarningsAvoid direct contact with electronics to prevent electrostatic damage.
