Home Computers and equipment Computer components Motherboard Asus Prime B760M-K D4 Intel B760 LGA 1700 micro ATX motherboard

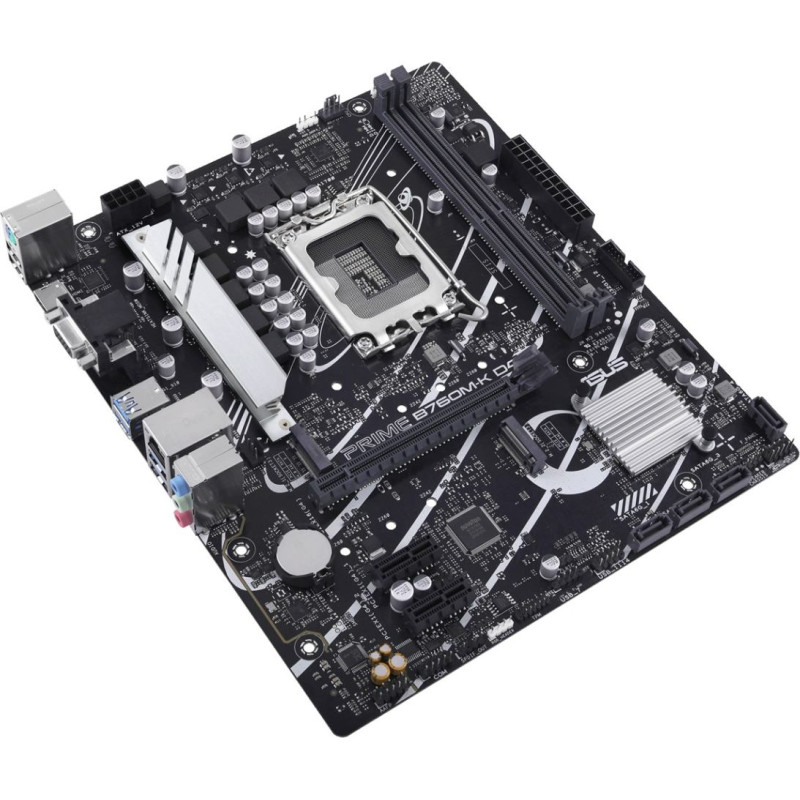

Asus Prime B760M-K D4 Intel B760 LGA 1700 micro ATX motherboard

Asus Prime B760M-K D4 Intel B760 LGA 1700 micro ATX motherboard

Delivery to the store takes 3 - 7 business days.
ID: 96774
Product Code: 90MB1DS0-M1EAY0
Barcode 4711387006917
84.43€
(Ex Tax: 68.09€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsLGA 1700
Compatible processor seriesIntel® Core™ i7
Processor manufacturerIntel
Processor socketLGA 1700
Parallel processing technology supportNot supported
Audio output channels7.1 channels
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel B760
Windows operating systems supportedWindows 11
Supported memory clock speeds2133
Maximum internal memory64 GB
Unbuffered memoryYes
Supported memory clock speed (max)5333 MHz
Memory channelsDual-channel
Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
ECC сompatibilityNon-ECC
Width244 mm
Depth211 mm
Height36 mm
Wake-on-LAN readyYes
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Wi-FiNo
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 2.0 connectors2
S/PDIF out connectorYes
Number of SATA III connectors4
TPM connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of COM connectors1
Front panel audio connectorYes
EPS power connector (8-pin)Yes
Number of chassis fan connectors1
12V power connectorYes
RGB LED pin headerYes
BIOS typeUEFI AMI
Package depth51.5 mm
Package height263 mm
Package weight926.3 g
Package width270 mm
Cables includedSATA
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
RAID levels5
RAID supportYes
Number of storage drives supported6
Number of HDDs supported4
Microphone inYes
PS/2 ports quantity1
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB connector typeUSB Type-A
VGA (D-Sub) ports quantity1
Number of M.2 (M) slots2
PCI Express x1 (Gen 4.x) slots2
PCI Express x16 (Gen 4.x) slots1
Weight528 g
WarningsBefore starting any maintenance or installation, disconnect the product from the power supply.
