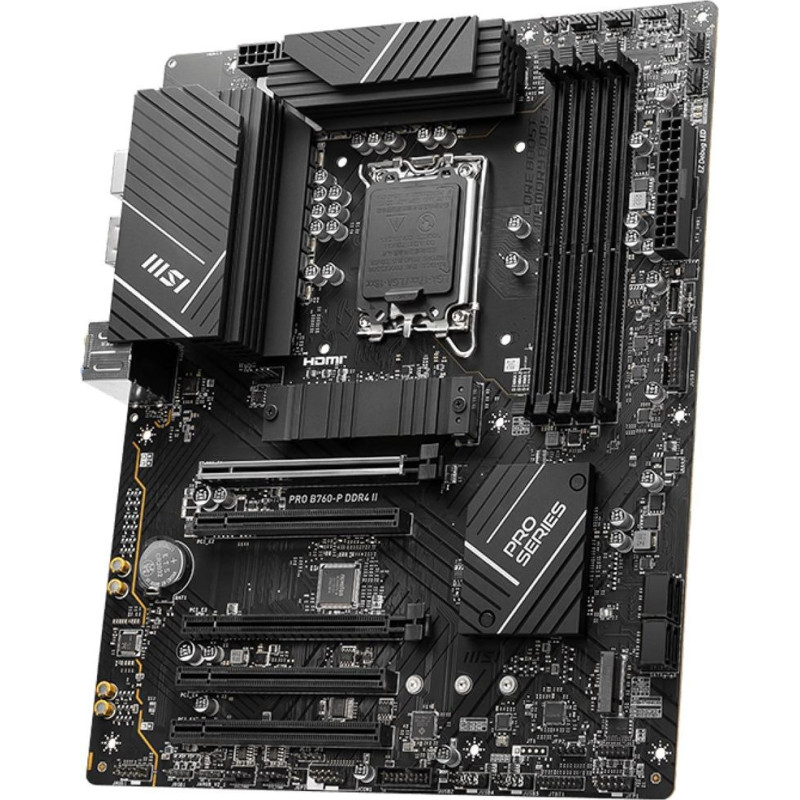

MSI PRO B760-P DDR4 II motherboard Intel B760 LGA 1700 ATX

MSI PRO B760-P DDR4 II motherboard Intel B760 LGA 1700 ATX

Delivery to the store takes 3 - 7 business days.
ID: 96776
Product Code: 7E29-001R
Barcode 4711377128889
92.66€
(Ex Tax: 74.72€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Core™ i5
Motherboard form factorATX
Motherboard chipset familyIntel
Audio chipRealtek ALC897
Windows operating systems supportedWindows 10 x64
Audio output channels7.1 channels
Motherboard chipsetIntel B760
ECC сompatibilityNon-ECC
Memory channelsDual-channel
Maximum internal memory128 GB
Unbuffered memoryYes
Supported memory clock speed (max)5333 MHz
Memory slots typeDIMM
Supported memory typesDDR4-SDRAM
Number of memory slots4
Depth304.8 mm
Width243.8 mm
LAN controllerRealtek RTL8125-BG
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiNo
Ethernet LANYes
Number of SATA III connectors4
CPU fan connectorYes
ATX Power connector (24-pin)Yes
Chassis intrusion connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
Front panel audio connectorYes
S/PDIF out connectorYes
USB 2.0 connectors4
Power fan connectorYes
Front panel connectorYes
12V power connectorYes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Drivers includedYes
Cables includedSATA
RAID levels10
RAID supportYes
Supported storage drive interfacesSATA III
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
HDMI version2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI ports quantity1
DisplayPort version1.4
USB 2.0 ports quantity4
PCI Express x4 (Gen 4.x) slots1
Number of M.2 (M) slots2
PCI Express x1 (Gen 3.x) slots1
PCI Express x1 (Gen 4.x) slots2
PCI Express x16 (Gen 4.x) slots1
WarningsDo not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
