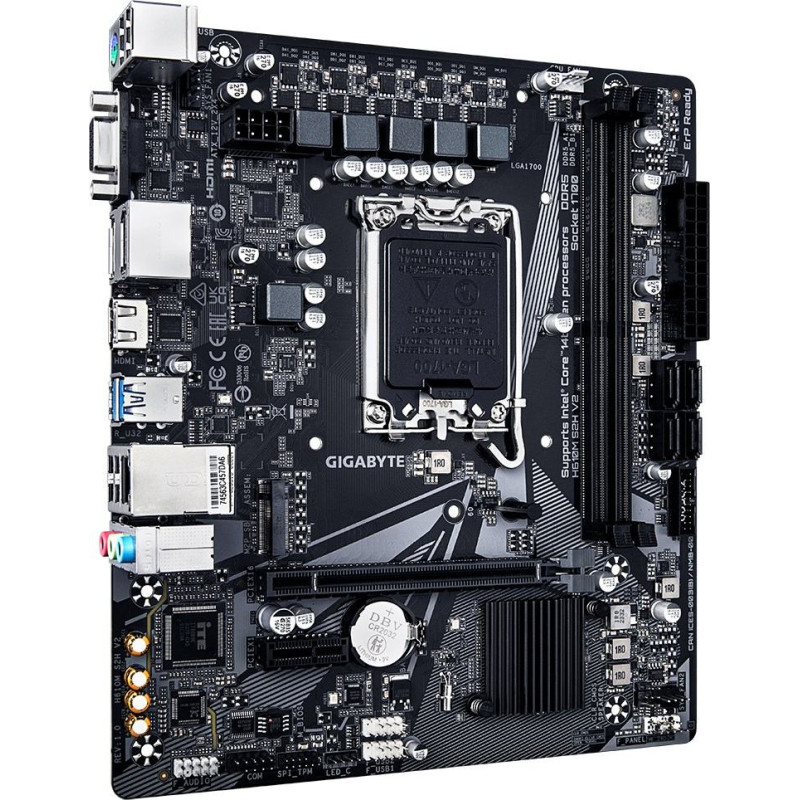

Home Computers and equipment Computer components Motherboard Gigabyte H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
Gigabyte H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

Gigabyte H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

Out Of Stock
ID: 96779
Product Code: H610M S2H V2
Barcode 4719331859817
68.89€
(Ex Tax: 55.56€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Supported processor socketsLGA 1700
Maximum number of SMP processors1
Processor socketLGA 1700
Compatible processor seriesIntel® Core™ i5
Processor manufacturerIntel
Maximum internal memory supported by processor96 GB
HDCPYes
Graphics cardHD Graphics
Graphics card familyIntel
Maximum resolution4096 x 2304 pixels
On-board graphics card modelIntel® HD Graphics
On-board graphics cardYes
PC health monitoringFan
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Power source typeATX
Audio output channels7.1 channels
Windows operating systems supportedWindows 11 x64
Audio chipRealtek ALC897
Cooling typeActive
Product colourBlack
Motherboard chipsetIntel H610 Express
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Number of memory slots2
Memory slots typeDIMM
Supported memory clock speed (max)5600 MHz
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds5600
Supported memory module capacities2GB
Unbuffered memoryYes
Maximum internal memory96 GB
Depth215 mm
Height35 mm
Width230 mm
Wi-FiNo
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
EPS power connector (8-pin)Yes
Front panel connectorYes
CPU fan connectorYes
Number of COM connectors1
Number of SATA III connectors4
Number of chassis fan connectors2
TPM connectorYes
ATX Power connector (24-pin)Yes
Serial port headers1
12V power connectorYes
Front panel audio connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
RGB LED pin headerYes
Clear CMOS jumperYes
Clear CMOS buttonYes
BIOS typeUEFI AMI
Desktop Management Interface (DMI) version2.7
Package weight690 g
Package height52 mm
Package width265 mm
Package depth235 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Cables includedSATA
Batteries includedYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA
Number of storage drives supported1
Number of HDDs supported4
VGA (D-Sub) ports quantity1
Headphone outputs1
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
DisplayPorts quantity1
DVI-D ports quantity1
USB 2.0 ports quantity4
HDMI ports quantity1
Microphone inYes
PS/2 ports quantity1
PCI Express x1 slots1
Number of M.2 (M) slots1
PCI Express x16 slots1
Number of battery cells1
Battery weight3 g
Battery typeCR2032
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery0.07 g
Supported DIMM module capacities8GB
Products per shipping (inner) case1 pc(s)
Country of originChina
WarningsAvoid direct contact with electronics to prevent electrostatic damage.
