Home Computers and equipment Computer components Motherboard Gigabyte B760 DS3H AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2

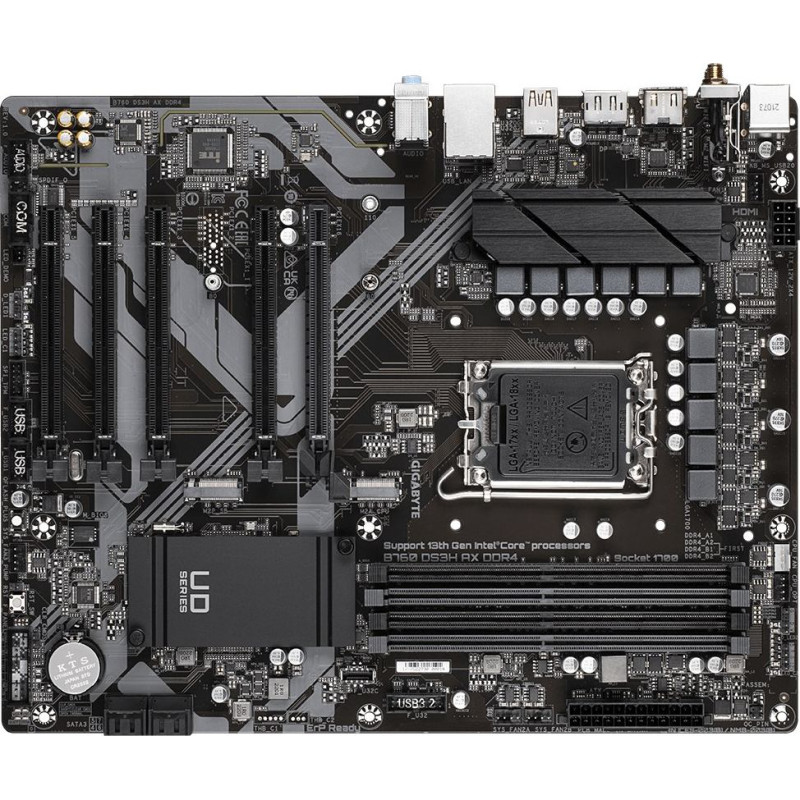

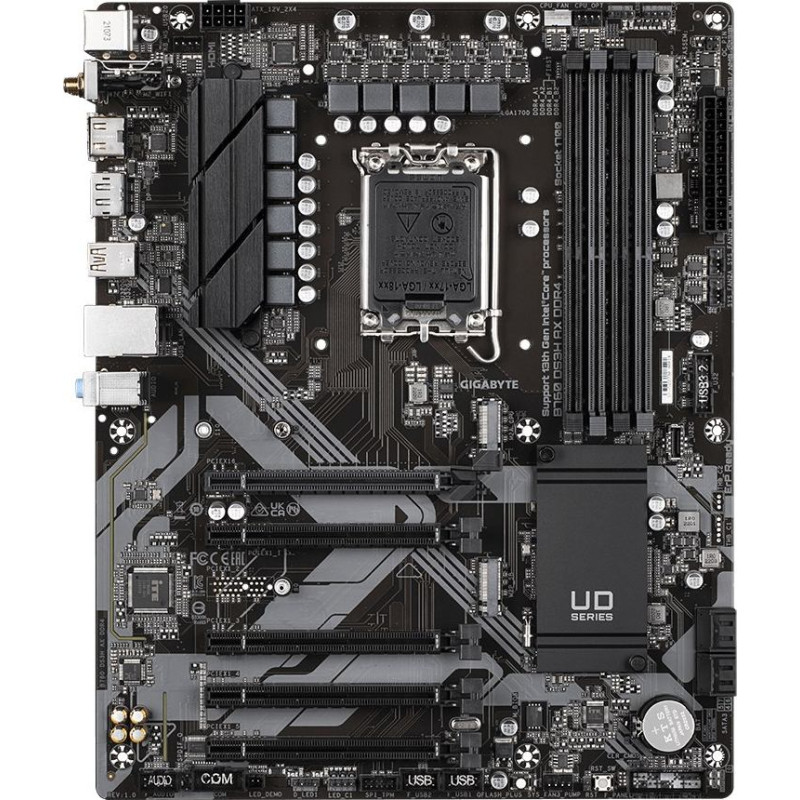

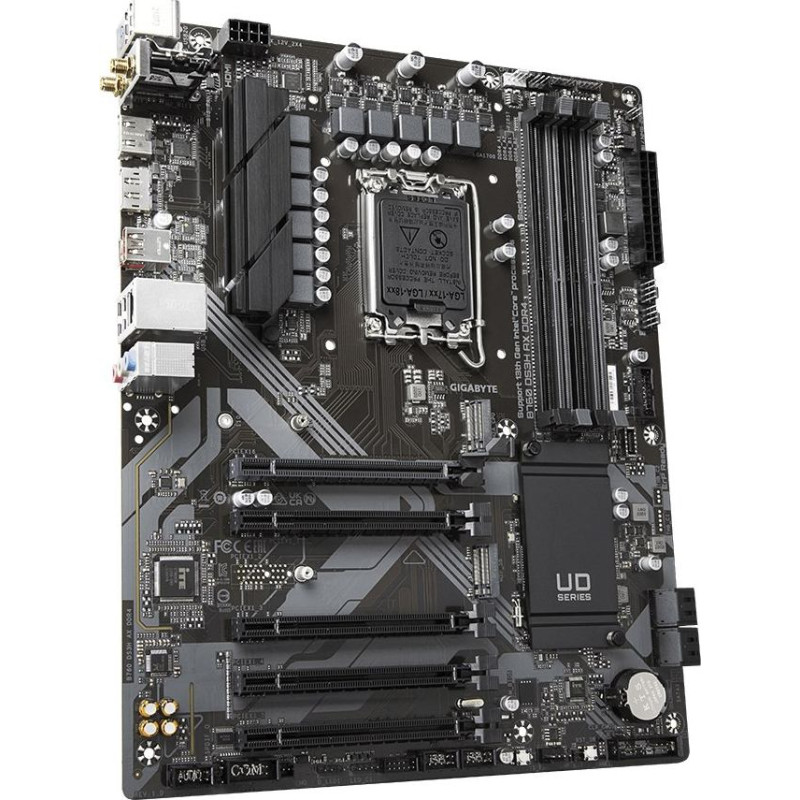

Gigabyte B760 DS3H AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2

Gigabyte B760 DS3H AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2

Delivery to the store takes 3 - 7 business days.
ID: 96783
Product Code: B760 DS3H AX DDR4
Barcode 4719331850999
109.06€
(Ex Tax: 87.96€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Supported processor socketsLGA 1700
Processor socketLGA 1700
Maximum internal memory supported by processor128 GB
Processor manufacturerIntel
Compatible processor seriesIntel® Core™ i5
HDCPYes
DirectX version12.0
Maximum resolution4096 x 2304 pixels
Parallel processing technology supportNot supported
Motherboard form factorATX
Motherboard chipset familyIntel
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 x64
PC health monitoringTemperature
Motherboard chipsetIntel B760 Express
Supported memory clock speeds3733
Supported memory module capacities1GB
Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
Supported memory clock speed (max)5333 MHz
Memory slots typeDIMM
Unbuffered memoryYes
Maximum internal memory128 GB
Number of memory slots4
Height35 mm
Width305 mm
Depth244 mm
BluetoothYes
Wi-Fi standards802.11b
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Ethernet interface typeGigabit Ethernet
Wi-FiYes
WLAN controller modelRZ608
Bluetooth version5.2
Ethernet LANYes
12V power connectorYes
CPU fan connectorYes
Serial port headers1
Front panel audio connectorYes
EPS power connector (8-pin)Yes
S/PDIF out connectorYes
ATX Power connector (24-pin)Yes
USB 2.0 connectors2
TPM connectorYes
RGB LED pin headerYes
Number of SATA III connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Front panel connectorYes
Clear CMOS jumperYes
BIOS typeUEFI AMI
Desktop Management Interface (DMI) version2.7
Package height80 mm
Package depth270 mm
Package width335 mm
Package weight1.49 kg
Bundled softwareNorton Internet Security
Batteries includedYes
Cables includedSATA
RAID supportYes
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
RAID levels5
Number of HDDs supported4
Supported storage drive typesHDD & SSD
Number of storage drives supported6
USB connector typeUSB Type-A
WiFi-AP antenna jack2
PS/2 ports quantity1
Headphone outputs3
DisplayPort version1.2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Microphone inYes
USB 3.2 Gen 2x2 Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
HDMI version2.0
DisplayPorts quantity1
USB 2.0 ports quantity4
PCI Express x16 slots5
Number of M.2 (M) slots2
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery weight3 g
Battery typeCR2032
Lithium weight per battery0.07 g
Products per shipping (inner) case1 pc(s)
Country of originChina
