Home Computers and equipment Computer components Motherboard MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX

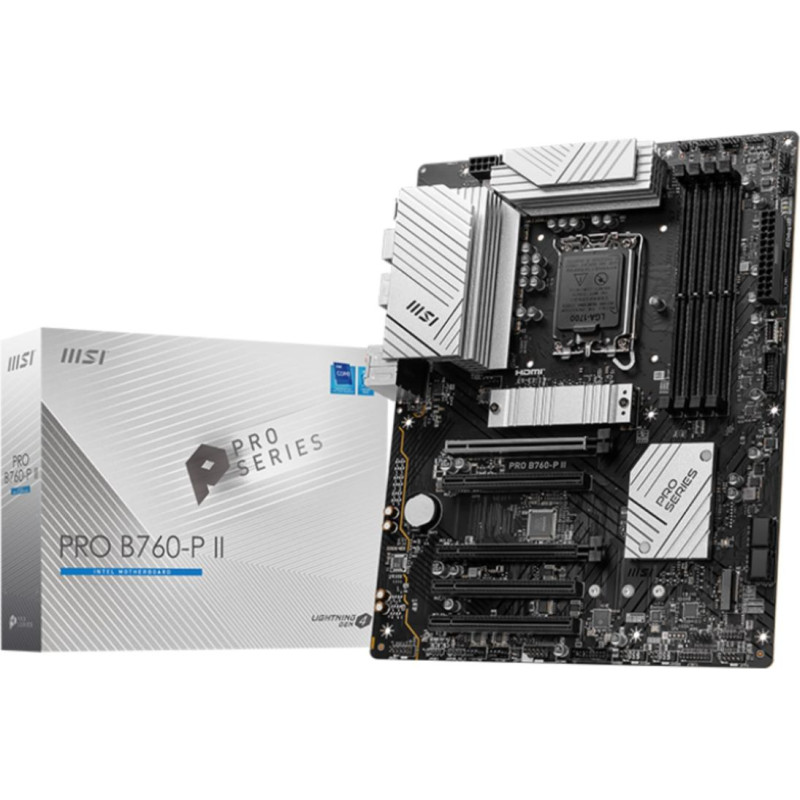

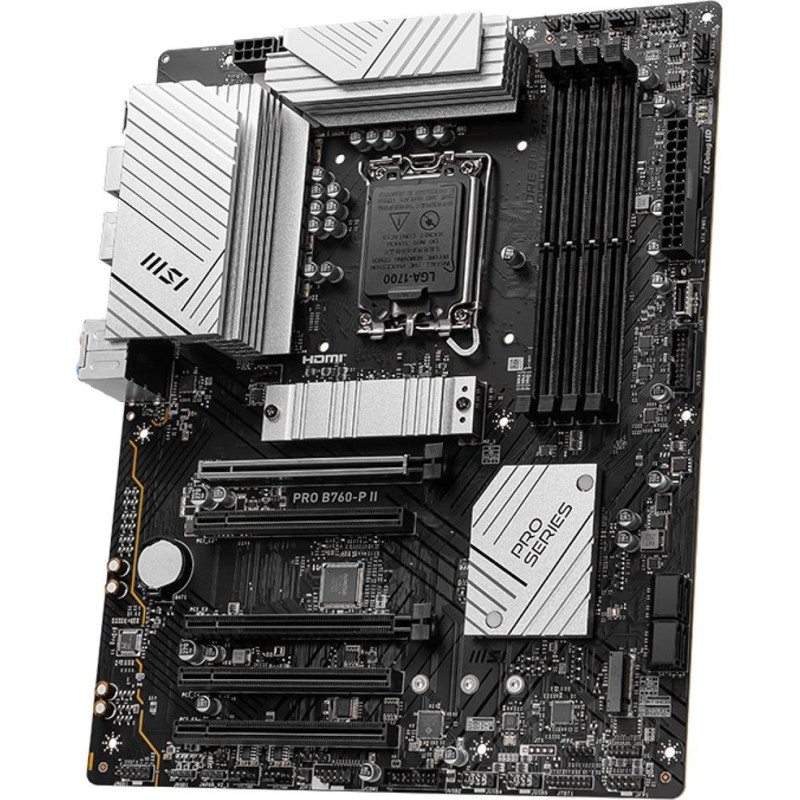

MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX

MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX

Delivery to the store takes 3 - 7 business days.
ID: 96784
Product Code: 7E29-002R
Barcode 4711377193887
133.75€
(Ex Tax: 107.87€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketLGA 1700
Compatible processor seriesIntel® Core™ i7
Maximum internal memory supported by processor256 GB
Processor manufacturerIntel
Audio chipRealtek ALC897
Motherboard chipsetIntel B760
Motherboard form factorATX
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 x64
Motherboard chipset familyIntel
Supported memory clock speeds5600
Maximum internal memory256 GB
Unbuffered memoryYes
Supported memory clock speed (max)7000 MHz
ECC сompatibilityNon-ECC
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Width243.8 mm
Depth304.8 mm
LAN controllerRealtek RTL8125-BG
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiNo
Ethernet LANYes
Front panel audio connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
USB 2.0 connectors4
ATX Power connector (24-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
12V power connectorYes
Number of SATA III connectors4
S/PDIF out connectorYes
Power fan connectorYes
Front panel connectorYes
BIOS typeUEFI AMI
Clear CMOS jumperYes
Clear CMOS buttonYes
Drivers includedYes
Cables includedSATA
RAID levels1
Number of HDDs supported4
RAID supportYes
Supported storage drive interfacesPCI Express 4.0, SATA III
Number of storage drives supported6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
USB 2.0 ports quantity4
DisplayPorts quantity1
HDMI version2.1
DisplayPort version1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
PCI Express x1 (Gen 4.x) slots2
PCI Express x4 (Gen 4.x) slots1
Number of M.2 (M) slots2
PCI Express x16 (Gen 4.x) slots1
PCI Express x1 (Gen 3.x) slots1
WarningsAvoid direct contact with electronics to prevent electrostatic damage.
