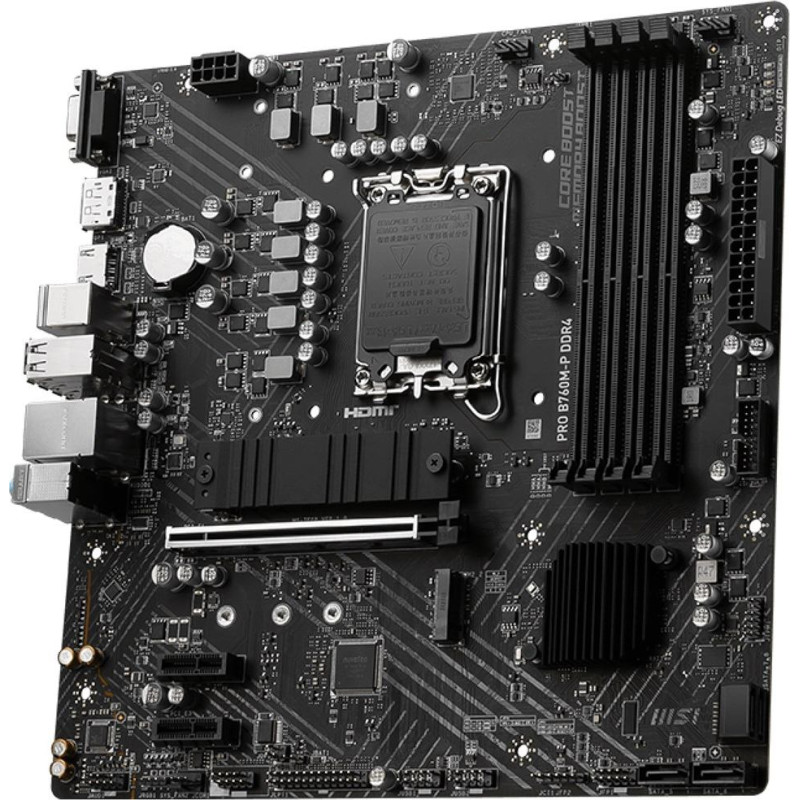

MSI PRO B760M-P DDR4 motherboard Intel B760 LGA 1700 micro ATX

MSI

MSI PRO B760M-P DDR4 motherboard Intel B760 LGA 1700 micro ATX

Out Of Stock
ID: 96788
Product Code: PRO B760M-P DDR4
Barcode 4711377030991
89.56€
(Ex Tax: 72.23€)
Payment options

Delivery options

omniva  venipak



Description
Description
Maximum number of SMP processors1
Processor socketLGA 1700
Supported processor socketsLGA 1700
Processor manufacturerIntel
Compatible processor seriesIntel® Pentium® Gold
On-board graphics cardNo
Audio output channels7.1 channels
Motherboard chipsetIntel B760
Product colourBlack
Audio chipRealtek ALC897
Windows operating systems supportedWindows 10
Power source typeATX
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Number of memory slots4
Memory slots typeDIMM
Supported memory typesDDR4-SDRAM
ECC сompatibilityNon-ECC
Supported memory clock speed (max)4800 MHz
Supported memory clock speeds2933
Memory channelsDual-channel
Maximum internal memory128 GB
Depth243.8 mm
Width243.8 mm
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Wi-FiNo
RGB LED pin headerYes
ATX Power connector (24-pin)Yes
Front panel connectorYes
CPU fan connectorYes
TPM connectorYes
Front panel audio connectorYes
USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
BIOS typeUEFI AMI
RAID levels1
RAID supportYes
Supported storage drive interfacesM.2, SATA III
DisplayPorts quantity1
DisplayPort version1.4
HDMI version1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 2.0 ports quantity4
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 slots2
Number of M.2 (M) slots2
WarningsBefore starting any maintenance or installation, disconnect the product from the power supply.
