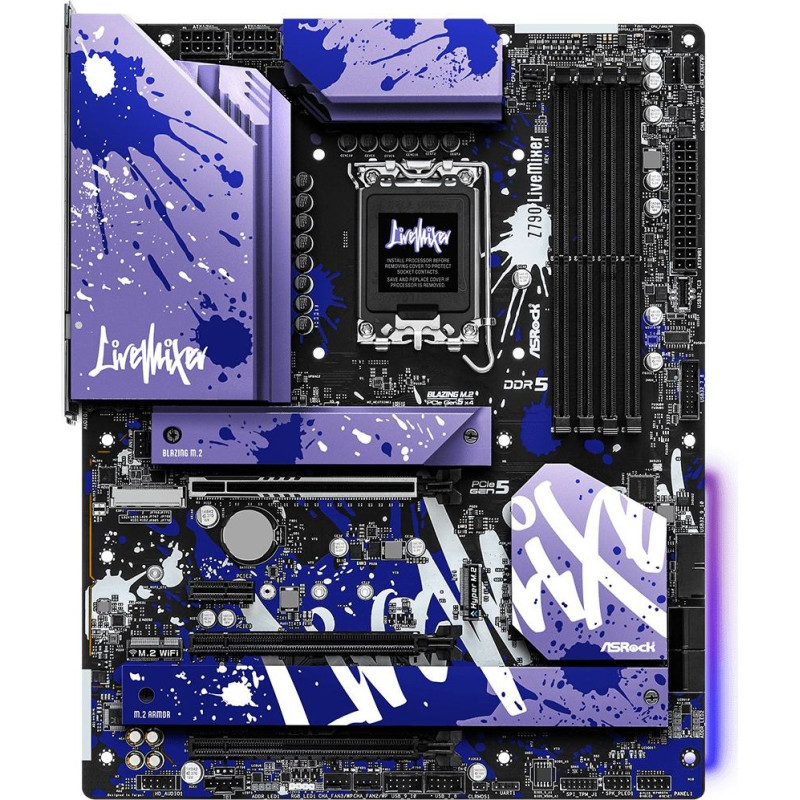

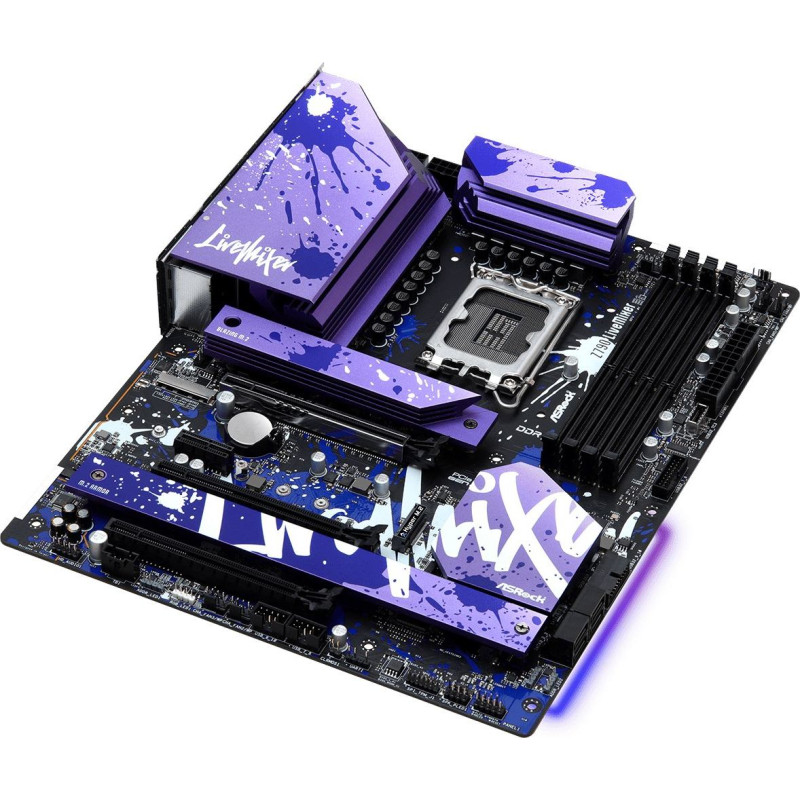

Asrock Z790 LiveMixer Intel Z790 LGA 1700 ATX

Asrock Z790 LiveMixer Intel Z790 LGA 1700 ATX

Delivery to the store takes 3 - 7 business days.
ID: 96820
Product Code: Z790 LIVEMIXER
Barcode 4710483940897
206.14€
(Ex Tax: 166.24€)
Payment options

Delivery options

omniva  venipak



Description
Description
Maximum number of SMP processors1
Processor socketLGA 1700
Processor manufacturerIntel
Compatible processor seriesIntel® Core™ i5
Audio chipRealtek ALC897
Motherboard form factorATX
Audio output channels7.1 channels
Motherboard chipsetIntel Z790
Windows operating systems supportedWindows 11 x64
Motherboard chipset familyIntel
Maximum internal memory128 GB
Number of memory slots4
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
Width305 mm
Depth244 mm
LAN controllerDragon RTL8125BG
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiNo
USB 2.0 connectors2
Thunderbolt headers1
Front panel audio connectorYes
TPM connectorYes
Number of SATA III connectors4
EPS power connector (8-pin)Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
ATX Power connector (24-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
CPU fan connectorYes
RGB LED pin headerYes
BIOS typeUEFI AMI
Supported storage drive interfacesM.2, SATA III
RAID levels10
RAID supportYes
DisplayPorts quantity1
S/PDIF out portYes
Ethernet LAN (RJ-45) ports1
Microphone inYes
DisplayPort version1.4
Headphone outputs1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
HDMI ports quantity1
USB 2.0 ports quantity6
PCI Express x16 (Gen 4.x) slots2
Number of M.2 (M) slots1
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 5.x) slots1
WarningsBefore starting any maintenance or installation, disconnect the product from the power supply.
