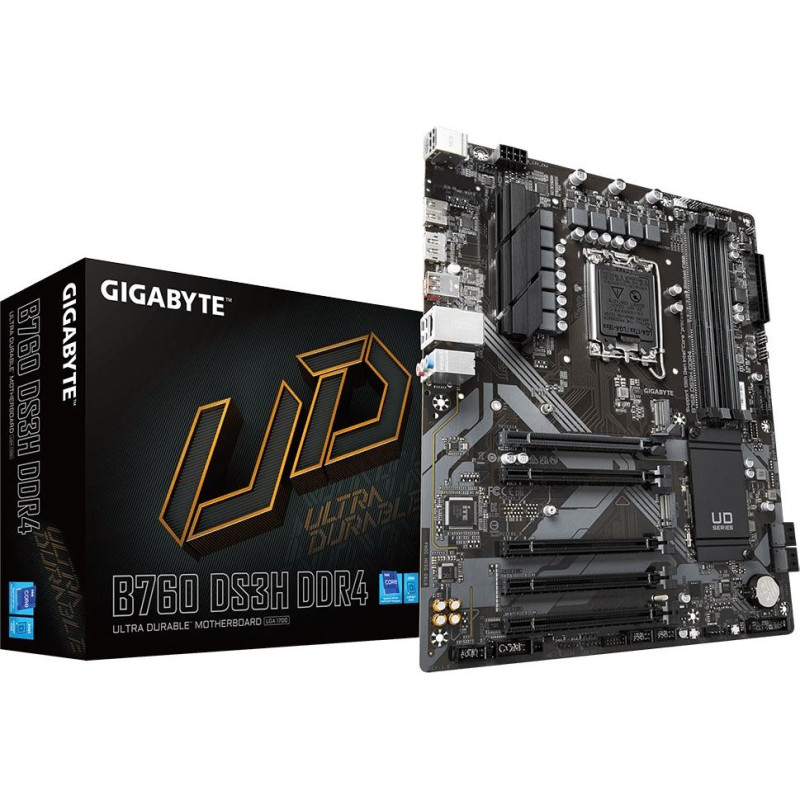

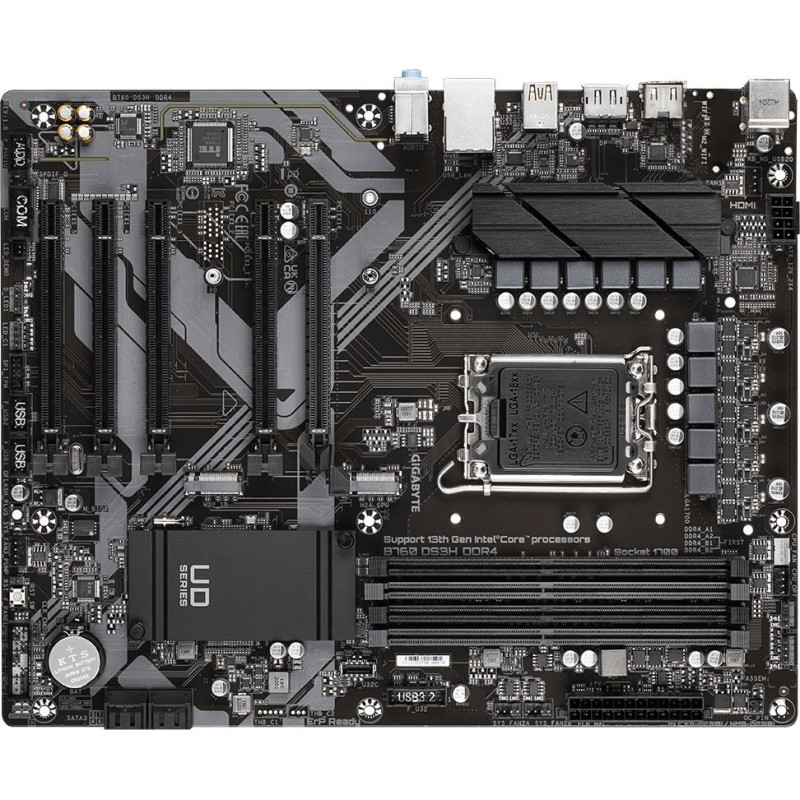

Home Computers and equipment Computer components Motherboard Gigabyte B760 DS3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 18+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2
Gigabyte B760 DS3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 18+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2

Gigabyte B760 DS3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 18+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2

Delivery to the store takes 3 - 7 business days.
ID: 96823
Product Code: B760 DS3H DDR4
Barcode 4719331850746
109.87€
(Ex Tax: 88.60€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Maximum internal memory supported by processor128 GB
Compatible processor seriesIntel® Core™ i3
Supported processor socketsLGA 1700
Processor manufacturerIntel
Processor socketLGA 1700
Parallel processing technology supportNot supported
Maximum resolution4096 x 2304 pixels
HDCPYes
DirectX version12.0
Audio output channels7.1 channels
PC health monitoringWater cooling
Motherboard chipsetIntel B760 Express
Motherboard form factorATX
Motherboard chipset familyIntel
Windows operating systems supportedWindows 11 x64
Supported memory clock speeds3466
Supported memory module capacities1GB
Number of memory slots4
Unbuffered memoryYes
Maximum internal memory128 GB
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speed (max)5333 MHz
Supported memory typesDDR4-SDRAM
Depth244 mm
Width305 mm
Height35 mm
Ethernet LANYes
Wi-FiNo
Ethernet interface typeGigabit Ethernet
Front panel audio connectorYes
Front panel connectorYes
S/PDIF out connectorYes
Number of SATA III connectors4
12V power connectorYes
Serial port headers1
CPU fan connectorYes
TPM connectorYes
EPS power connector (8-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 2.0 connectors2
RGB LED pin headerYes
Total number of SATA connectors4
ATX Power connector (24-pin)Yes
BIOS typeUEFI AMI
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
Package width335 mm
Package depth270 mm
Package height80 mm
Package weight1.31 kg
Bundled softwareNorton Internet Security
Cables includedSATA
Batteries includedYes
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
Supported storage drive typesHDD & SSD
RAID levels1
Number of HDDs supported4
RAID supportYes
Number of storage drives supported6

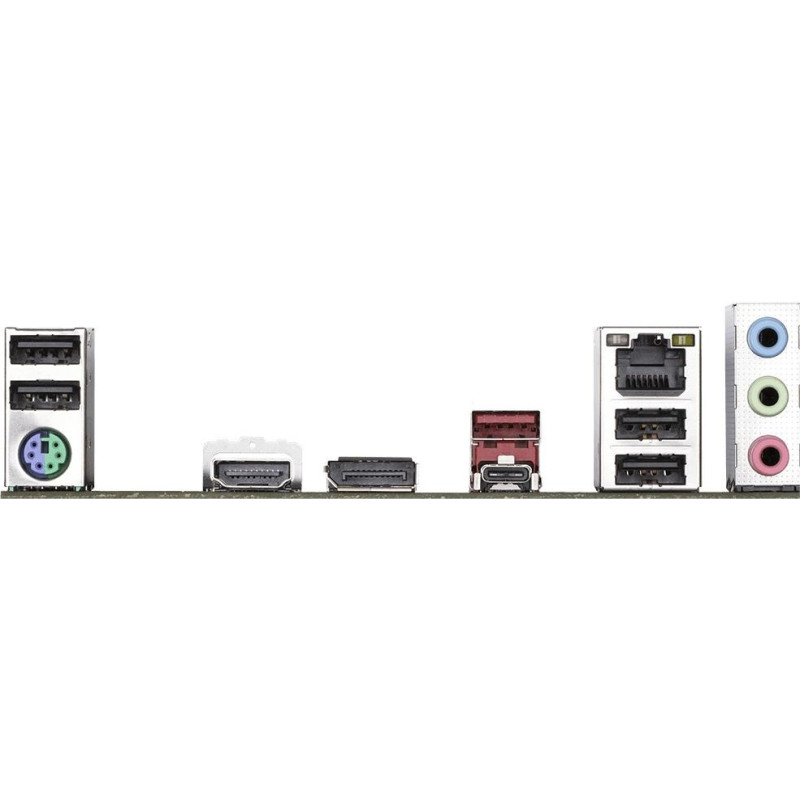

Ethernet LAN (RJ-45) ports1
USB connector typeUSB Type-C
DisplayPort version1.2
PS/2 ports quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
Microphone inYes
USB 2.0 ports quantity4
HDMI version2.0
DisplayPorts quantity1
HDMI ports quantity1
Headphone outputs3
PCI Express x16 slots5
Number of M.2 (M) slots2
Number of battery cells1
Battery weight3 g
Battery typeCR2032
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery0.07 g
Products per shipping (inner) case1 pc(s)
Country of originChina
