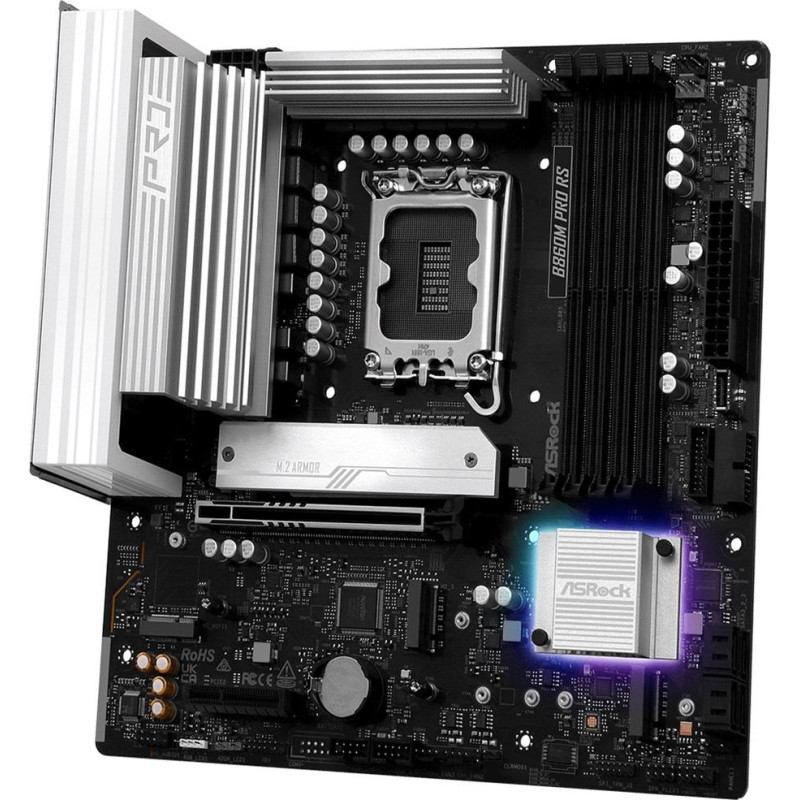

Asrock B860M Pro RS Intel B860 LGA 1851 (Socket V1) micro ATX

Asrock B860M Pro RS Intel B860 LGA 1851 (Socket V1) micro ATX

Delivery to the store takes 3 - 7 business days.
ID: 96874
Product Code: B860M PRO RS
Barcode 4711581490277
138.29€
(Ex Tax: 111.53€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketLGA 1851 (Socket V1)
Processor manufacturerIntel
Audio chipRealtek ALC897
Motherboard chipsetIntel B860
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Windows operating systems supportedWindows 11 x64
Audio output channels7.1 channels
Number of memory slots4
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
Maximum internal memory256 GB
Unbuffered memoryYes
Width244 mm
Depth244 mm
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiNo
LAN controllerDragon RTL8125BG
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
RGB LED pin headerYes
Number of CPU fan connectors2
Number of RGB LED pin headers4
Number of EPS power connectors (8-pin)1
TPM connectorYes
EPS power connector (8-pin)Yes
Number of SATA III connectors4
Number of chassis fan connectors3
USB 2.0 connectors2
ATX Power connector (24-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
CPU fan connectorYes
Front panel audio connectorYes
BIOS typeEFI AMI
Cables includedSATA
RAID levels5
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Number of storage drives supported7
Line-inYes
USB 3.2 Gen 2x2 Type-C ports quantity1
Microphone inYes
DisplayPorts quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity2
DisplayPort version1.4
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
PCI Express x16 (Gen 5.x) slots1
PCI Express x4 (Gen 4.x) slots1
Number of M.2 (M) slots1
WarningsDo not open or modify the motherboard to prevent damage.
