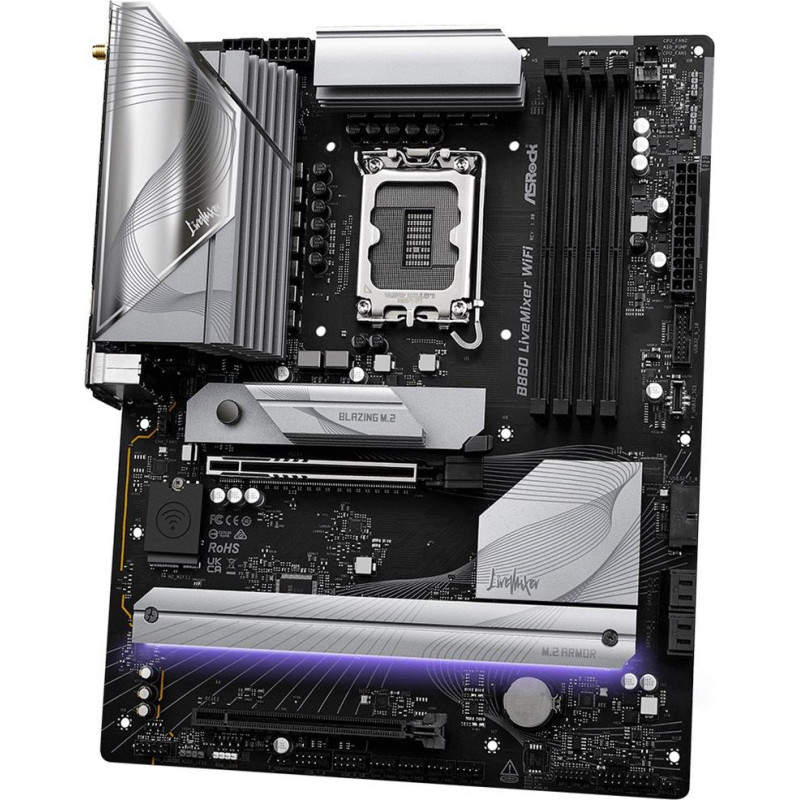

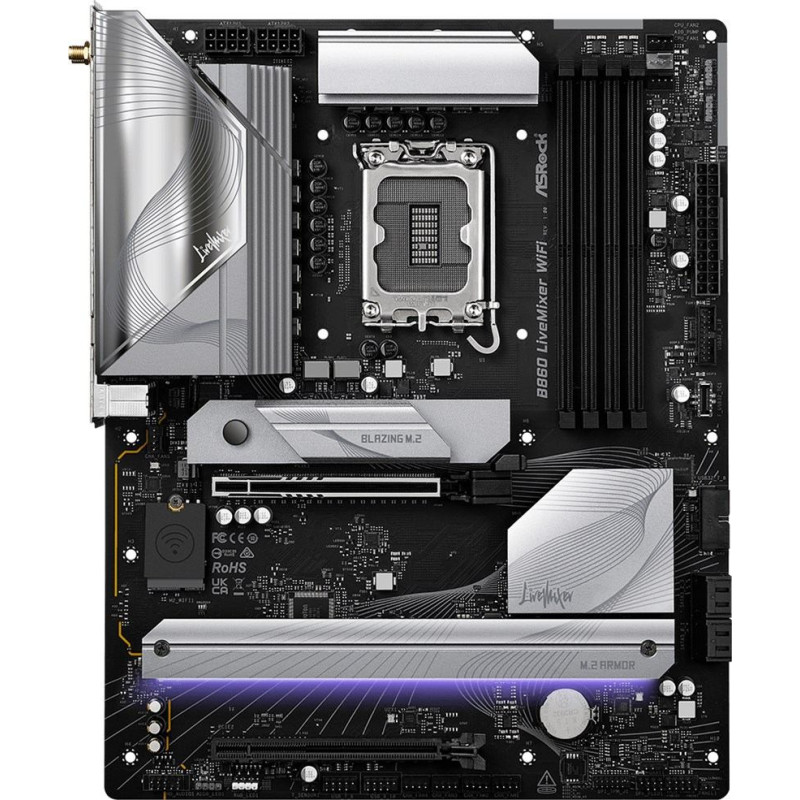

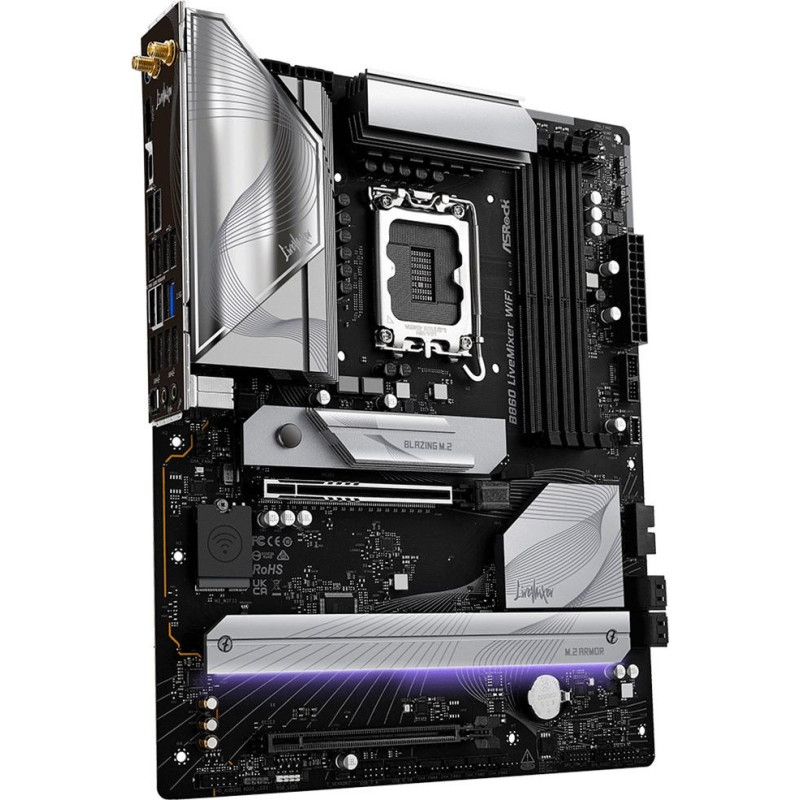

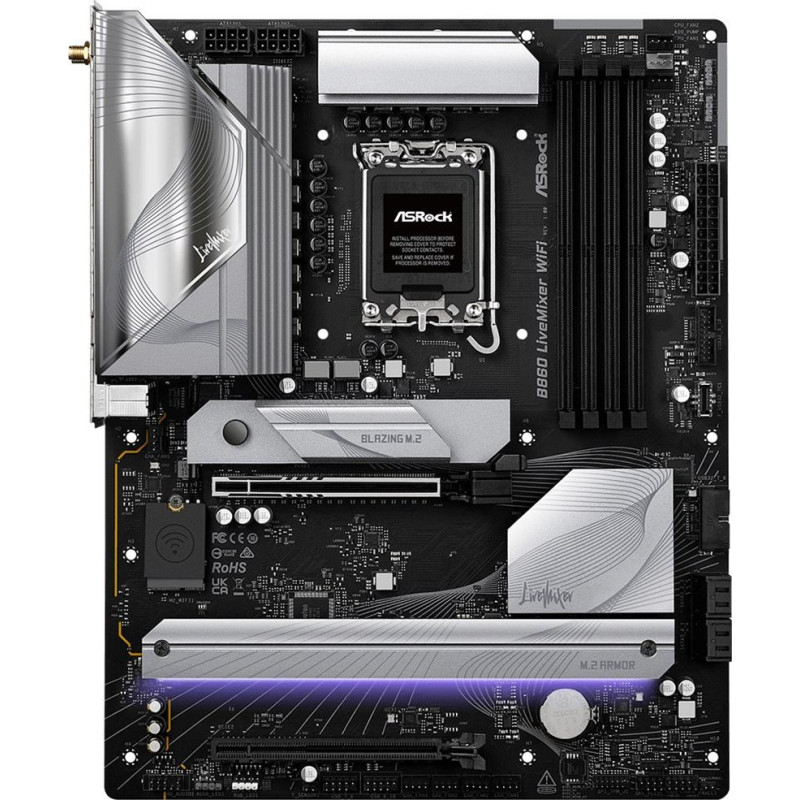

Asrock B860 LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) ATX

Asrock B860 LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) ATX

Delivery to the store takes 3 - 7 business days.
ID: 96876
Product Code: B860 LIVEMIXER WIFI
Barcode 4711581490147
190.25€
(Ex Tax: 153.43€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsLGA 1851
Compatible processor seriesIntel Core Ultra (Series 2)
Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Maximum resolution7680 x 4320 pixels
HDCPYes
Parallel processing technology supportNot supported
CertificationFCC, CE, ErP/EuP
Windows operating systems supportedWindows 11 x64
Audio chipRealtek ALC1220
Product colourBlack
Motherboard chipsetIntel B860
Motherboard form factorATX
Audio output channels7.1 channels
Motherboard chipset familyIntel
Memory channelsDual-channel
Number of memory slots4
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
ECC сompatibilityNon-ECC
Unbuffered memoryYes
Maximum internal memory256 GB
Width305 mm
Depth244 mm
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Wi-FiYes
Bluetooth version5.3
BluetoothYes
LAN controllerDragon RTL8125BG
EPS power connector (8-pin)Yes
TPM connectorYes
Number of chassis fan connectors5
CPU fan connectorYes
RGB LED pin headerYes
12V power connectorYes
Number of CPU fan connectors2
Number of RGB LED pin headers1
Number of water pump connectors1
Number of EPS power connectors (8-pin)2
ATX Power connector (24-pin)Yes
USB 2.0 connectors2
Front panel audio connectorYes
Number of SATA III connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
BIOS typeUEFI AMI
Cables includedSATA
Antenna includedYes
RAID levels5
Number of storage drives supported7
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
RAID supportYes
Supported storage drive typesHDD & SSD
HDMI version2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Microphone inYes
HDMI ports quantity1
Thunderbolt ports quantity1
Headphone outputs1
WiFi-AP antenna jack2
S/PDIF out portYes
USB connector typeUSB Type-A
USB 2.0 ports quantity6
Ethernet LAN (RJ-45) ports1
Number of M.2 (M) slots3
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
2nd M.2 largest key size2280
1st M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
3rd M.2 highest PCI Express generation4.0
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
WarningsIn case of installation problems, contact a qualified service technician.
