Home Computers and equipment Computer components Motherboard Gigabyte B550 AORUS ELITE V2 Motherboard - AMD Ryzen 5000 CPUs, 12+2 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2

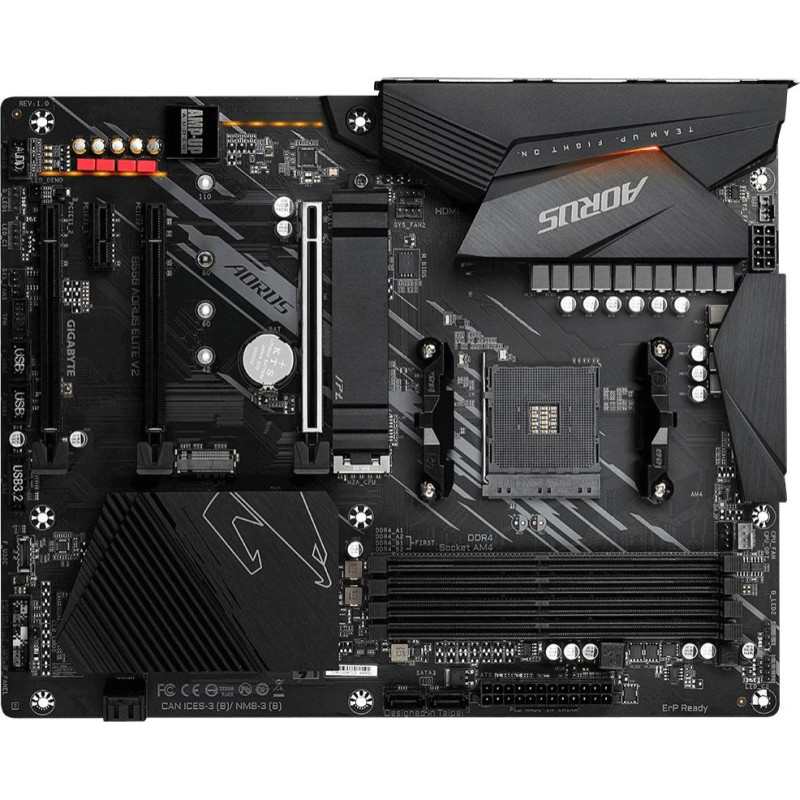

Gigabyte B550 AORUS ELITE V2 Motherboard - AMD Ryzen 5000 CPUs, 12+2 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2

Gigabyte B550 AORUS ELITE V2 Motherboard - AMD Ryzen 5000 CPUs, 12+2 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2

Availability: Out Of Stock
ID: 96909
Product Code: B550 AORUS ELITE V2
Barcode 4719331809898
116.46€
(Ex Tax: 93.92€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Processor socketSocket AM4
Maximum number of SMP processors1
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 5000 Series
Supported processor socketsSocket AM4
HDCPYes
Parallel processing technology supportNot supported
Maximum resolution5120 x 2880 pixels
DirectX version12.0
PC health monitoringVoltage
Windows operating systems supportedWindows 10 x64
Power source typeATX
Audio output channels7.1 channels
Motherboard chipset familyAMD
Audio chipRealtek ALC897
Motherboard form factorATX
Motherboard chipsetAMD B550
Product colourBlack
Cooling typePassive
Number of memory slots4
Memory channelsDual-channel
Memory slots typeDIMM
Supported memory clock speed (max)4733 MHz
ECC сompatibilityECC & Non-ECC
Supported memory typesDDR4-SDRAM
Maximum internal memory per slot32 GB
Supported memory clock speeds3466
Maximum internal memory128 GB
Unbuffered memoryYes
Depth244 mm
Height35 mm
Width305 mm
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiNo
Ethernet LANYes
LAN controllerRealtek RTL8125
12V power connectorYes
RGB LED pin headerYes
Number of RGB LED pin headers5
Number of CPU fan connectors1
Number of water pump connectors4
Number of EPS power connectors (8-pin)1
USB 2.0 connectors2
ATX Power connector (24-pin)Yes
Number of chassis fan connectors3
CPU fan connectorYes
Number of SATA III connectors4
TPM connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Front panel connectorYes
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
BIOS typeUEFI AMI
Package height80 mm
Package weight1.8 kg
Package depth270 mm
Package width335 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Screws includedYes
Batteries includedYes
Number of HDDs supported4
Number of storage drives supported6
Supported storage drive interfacesM.2, SATA III
RAID levels10
Supported storage drive typesHDD & SSD
RAID supportYes
HDMI version2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Line-inYes
Microphone inYes
Headphone outputs1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 2.0 ports quantity2
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
S/PDIF out portYes
DisplayPort version1.4
PCI Express x16 (Gen 4.x) slots1
2nd M.2 highest PCI Express generation3.0
2nd M.2 largest key size22110
1st M.2 highest PCI Express generation4.0
1st M.2 largest key size22110
PCI Express x16 (Gen 3.x) slots2
PCI Express x1 (Gen 3.x) slots1
Number of M.2 (M) slots2
Number of battery cells1
Battery typeCR2032
Battery weight3 g
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery0.07 g
Weight1.12 kg
Harmonized System (HS) code84733020
Products per shipping (inner) case1 pc(s)
Country of originChina
WarningsAvoid direct contact with sensitive electronic components.
