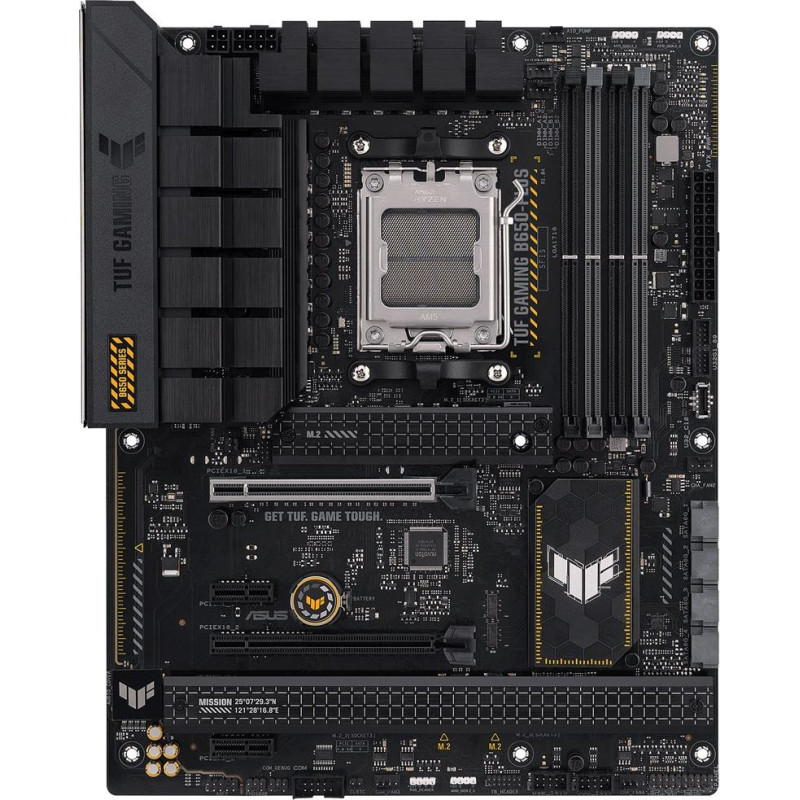

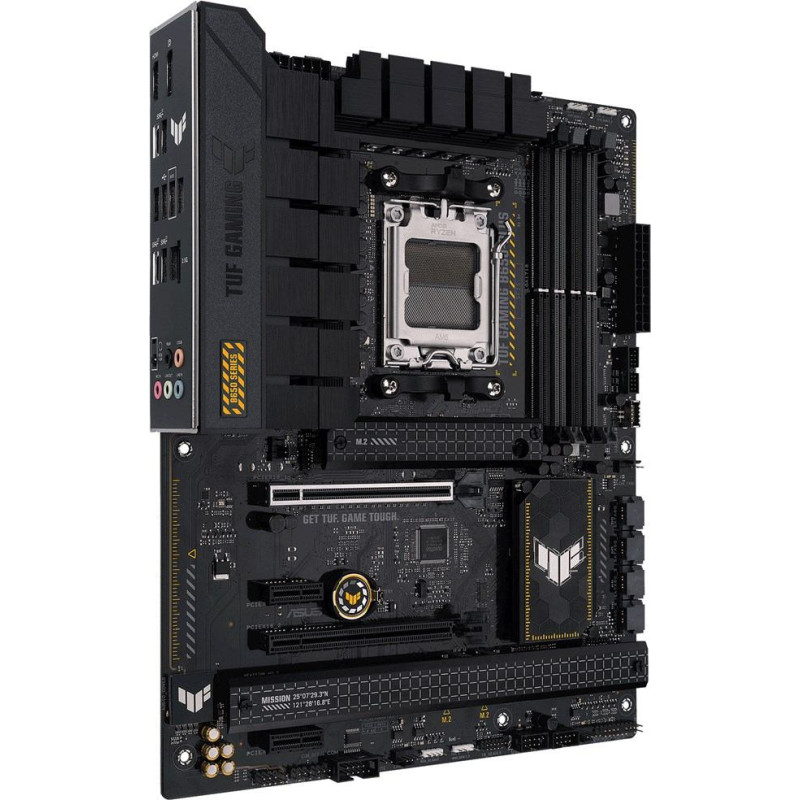

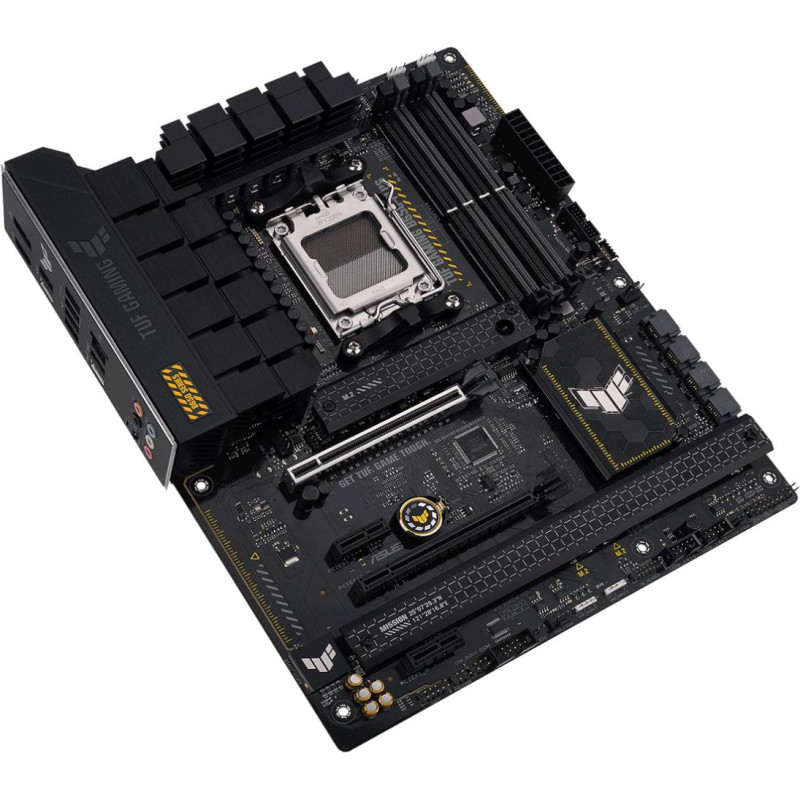

Asus TUF GAMING B650-PLUS AMD B650 Motherboard AM5 Socket ATX

Asus TUF GAMING B650-PLUS AMD B650 Motherboard AM5 Socket ATX

Delivery to the store takes 3 - 7 business days.
ID: 96959
Product Code: 90MB1BY0-M0EAY0
Barcode 4711081912767
196.57€
(Ex Tax: 158.53€)
Payment options

Delivery options

omniva  venipak



Description
Description
Compatible processor seriesAMD Ryzen 7000 Series
Supported processor socketsSocket AM5
Processor manufacturerAMD
Processor socketSocket AM5
Parallel processing technology supportNot supported
Windows operating systems supportedWindows 10
Power source typeATX
Audio output channels7.1 channels
Motherboard chipset familyAMD
Motherboard form factorATX
Motherboard chipsetAMD B650
Supported memory clock speeds5600
Number of memory slots4
Supported memory typesDDR5-SDRAM
Maximum internal memory128 GB
Memory slots typeDIMM
Memory channelsDual-channel
Unbuffered memoryYes
Supported memory clock speed (max)6400 MHz
ECC сompatibilityECC & Non-ECC
Width305 mm
Depth244 mm
Ethernet LANYes
Wi-FiNo
Ethernet interface type2.5 Gigabit Ethernet
Number of SATA III connectors4
Thunderbolt headers1
12V power connectorYes
CPU fan connectorYes
USB 2.0 connectors2
Front panel audio connectorYes
RGB LED pin headerYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of COM connectors1
Number of chassis fan connectors4
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
BIOS typeUEFI AMI
Package width338 mm
Package depth273 mm
Package height68 mm
Package weight1.36 kg
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID levels1
RAID supportYes
Line-inYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
DisplayPorts quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
HDMI ports quantity1
Microphone inYes
USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
HDMI version2.1
Headphone outputs1
DisplayPort version1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
PCI Express x16 (Gen 4.x) slots2
PCI Express x4 (Gen 1.x) slots2
Number of M.2 (M) slots3
Back-to-BIOS buttonYes
WarningsAvoid contact with liquids to prevent electronic damage.
