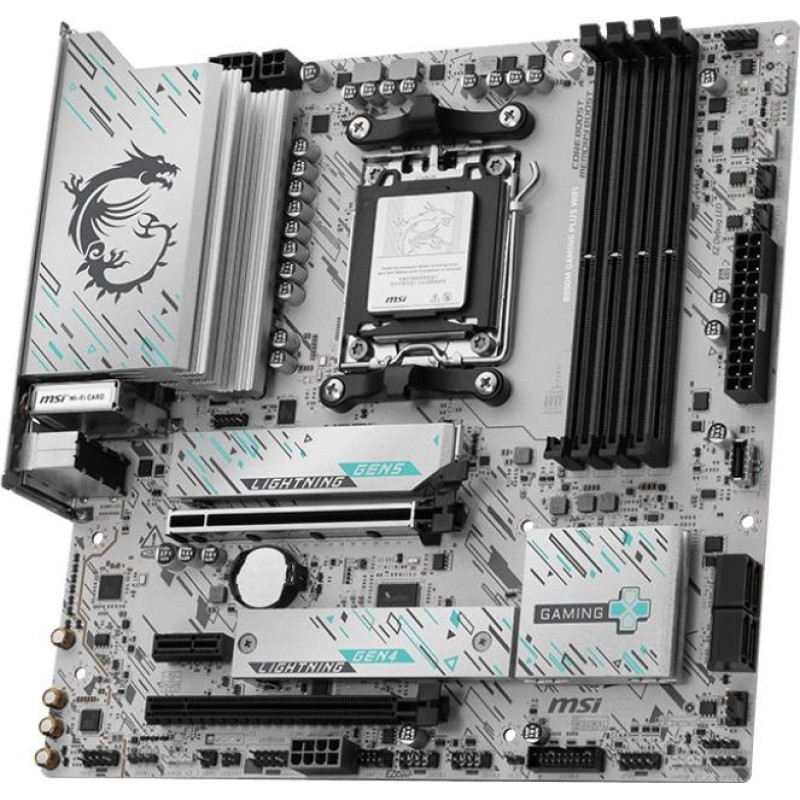

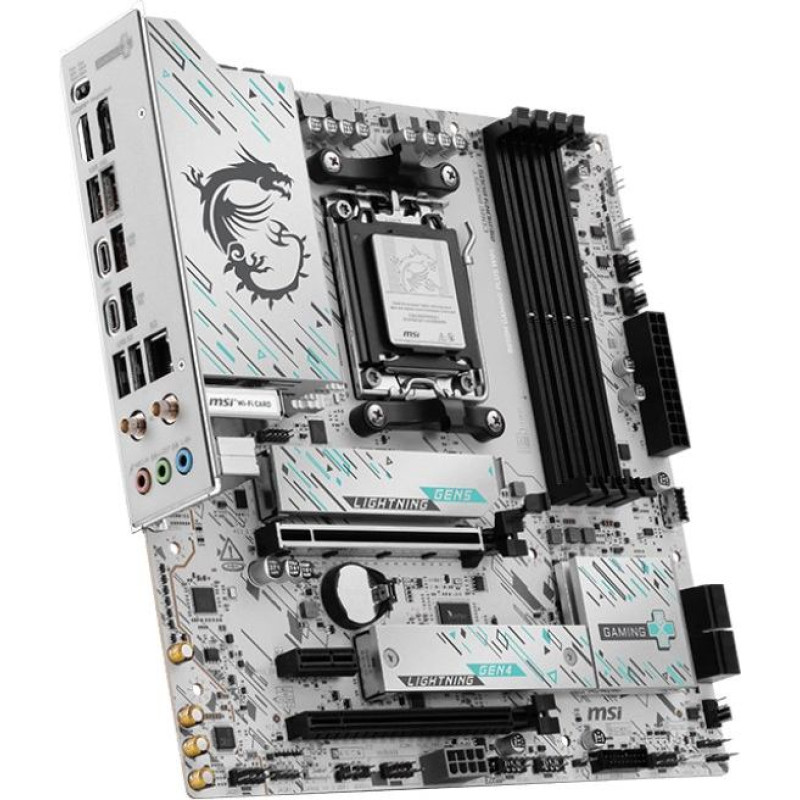

MSI B850M GAMING PLUS WIFI AMD B850 Socket AM5 micro ATX

MSI B850M GAMING PLUS WIFI AMD B850 Socket AM5 micro ATX

Availability: Delivery to the store takes 3 - 7 business days.
ID: 96970
Product Code: B850M GAMING PLUS WIFI
Barcode 4711377347570
194.43€
(Ex Tax: 156.80€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsSocket AM5
Compatible processor seriesAMD Ryzen 9000 Series
Processor manufacturerAMD
Processor socketSocket AM5
On-board graphics cardNo
Windows operating systems supportedWindows 11 x64
Motherboard form factormicro ATX
Audio output channels7.1 channels
Audio chipRealtek ALC897
Motherboard chipset familyAMD
Motherboard chipsetAMD B850
Product colourBlack
ECC сompatibilityNon-ECC
Supported memory clock speeds6400
Maximum internal memory256 GB
Number of memory slots4
Memory slots typeDIMM
Supported memory clock speed (max)8200 MHz
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Depth243.8 mm
Width243.8 mm
BluetoothYes
Wi-Fi standards802.11b
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Ethernet interface type5 Gigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8126
Bluetooth version5.4
Number of CPU fan connectors2
Number of RGB LED pin headers3
Number of water pump connectors1
Number of SATA III connectors4
CPU fan connectorYes
ATX Power connector (24-pin)Yes
USB 2.0 connectors4
Front panel audio connectorYes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
RGB LED pin headerYes
Front panel connectorYes
Total number of SATA connectors4
BIOS typeUEFI AMI
Supported storage drive typesHDD & SSD
RAID supportYes
RAID levels10
Number of storage drives supported7
Number of HDDs supported4
Supported storage drive interfacesM.2

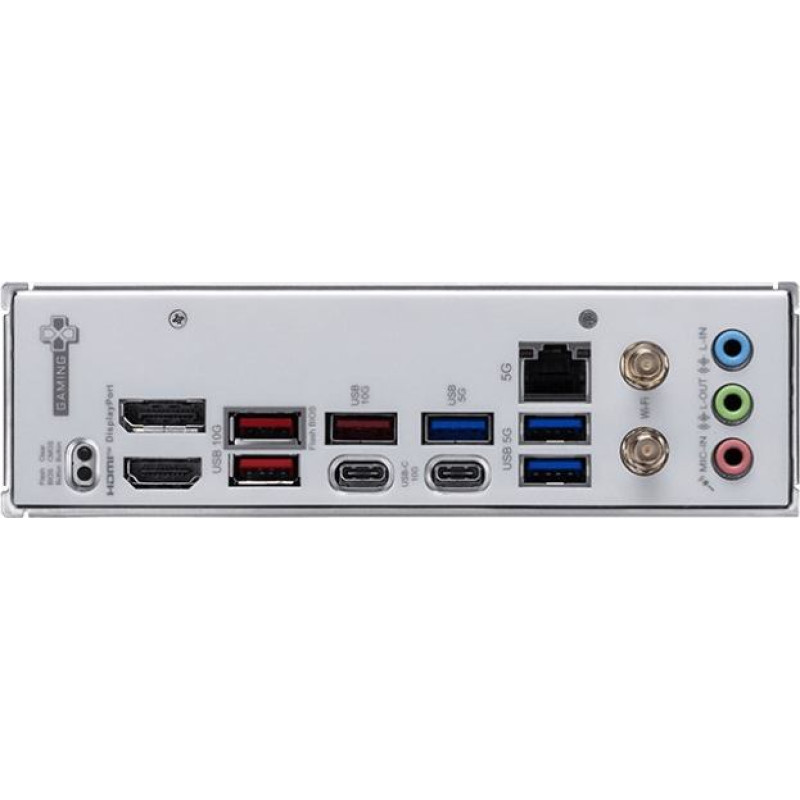

HDMI version2.1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
1st M.2 highest PCI Express generation5.0
3rd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation5.0
1st M.2 largest key size2280
PCI Express x4 slots1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 slots1
