Home Computers and equipment Computer components Motherboard Gigabyte A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

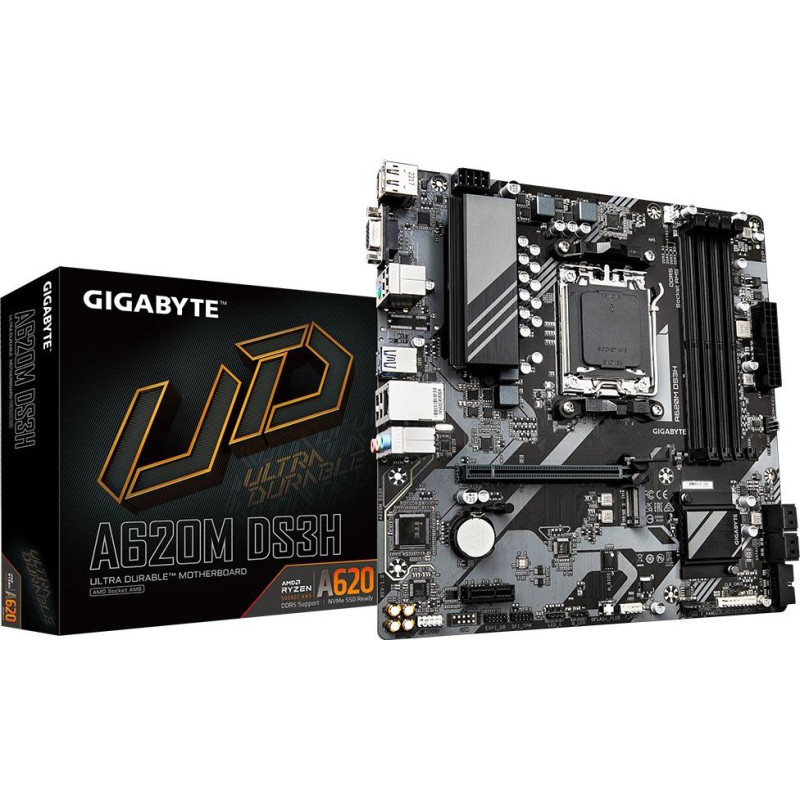

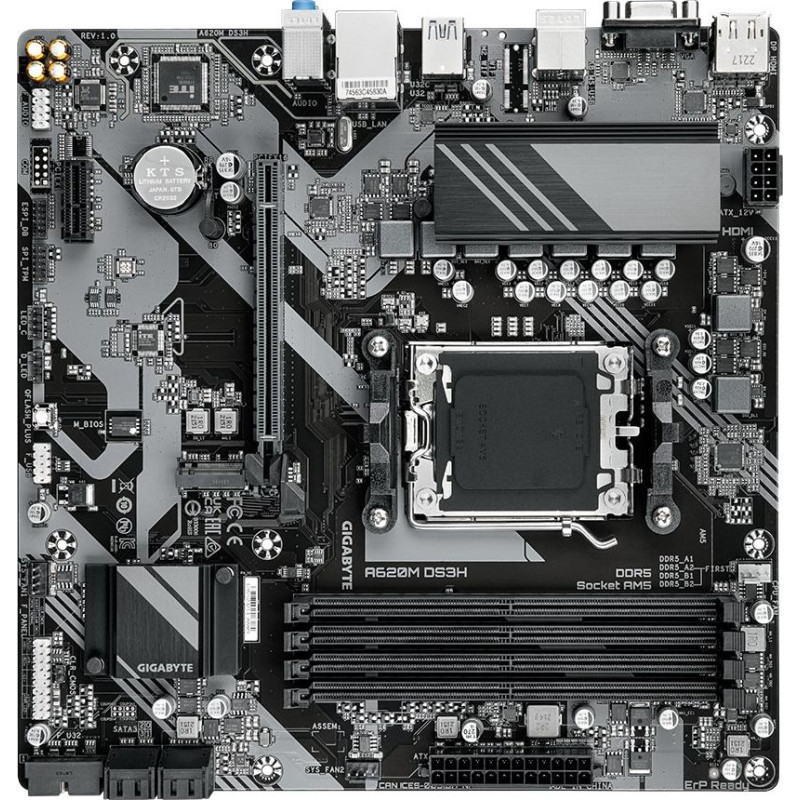

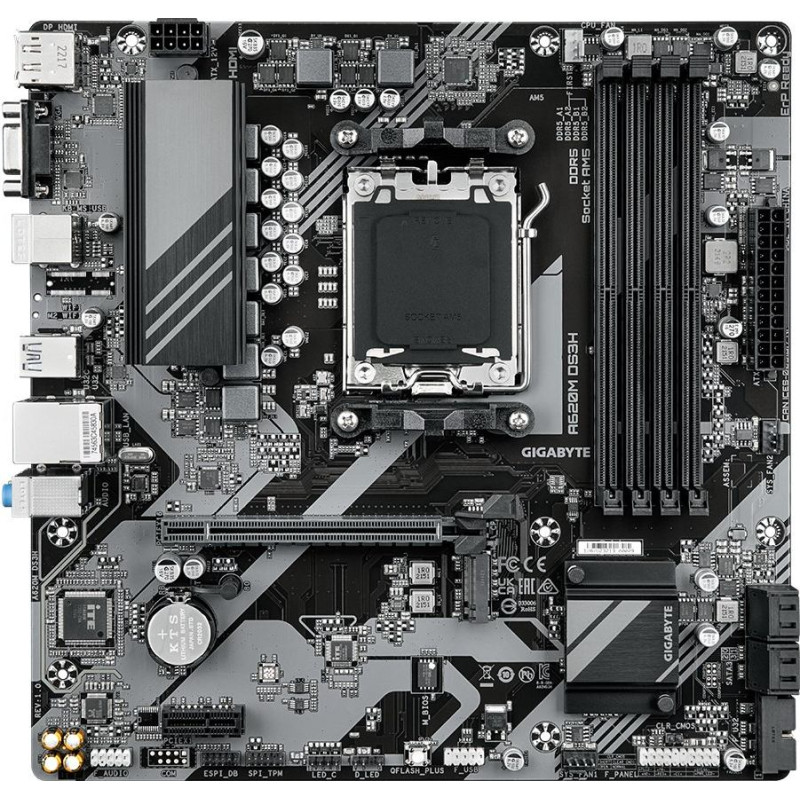

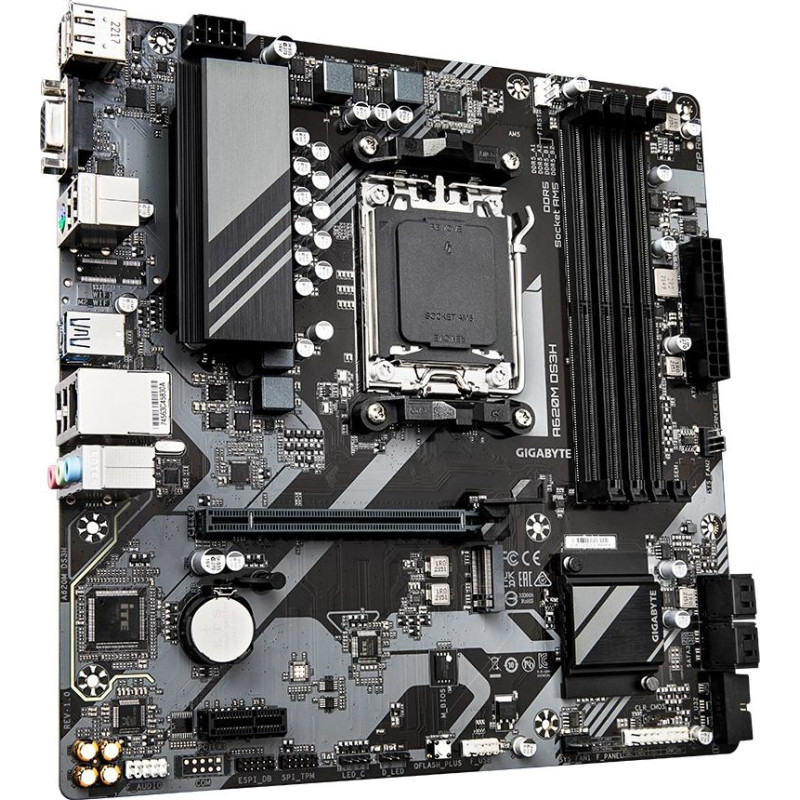

Gigabyte A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

Gigabyte A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

Availability: Out Of Stock
ID: 96972
Product Code: A620M DS3H
Barcode 4719331855567
94.64€
(Ex Tax: 76.33€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Processor socketSocket AM5
Supported processor socketsSocket AM5
Maximum internal memory supported by processor256 GB
Compatible processor seriesAMD Ryzen 9000 Series
Processor manufacturerAMD
HDCP version2.3
HDCPYes
Motherboard chipset familyAMD
Motherboard form factormicro ATX
Windows operating systems supportedWindows 11 x64
PC health monitoringVoltage
Audio output channels7.1 channels
Motherboard chipsetAMD A620
Supported memory clock speeds5600
Memory slots typeDIMM
Supported memory clock speed (max)7600 MHz
Memory channelsDual-channel
Number of memory slots4
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Maximum internal memory256 GB
ECC сompatibilityNon-ECC
Depth174 mm
Width244 mm
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN data rates10
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
12V power connectorYes
Front panel audio connectorYes
EPS power connector (8-pin)Yes
CPU fan connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Total number of SATA connectors4
TPM connectorYes
RGB LED pin headerYes
Front panel connectorYes
USB 2.0 connectors1
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
BIOS typeUEFI AMI
RAID supportYes
RAID levels10
Number of storage drives supported4
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III

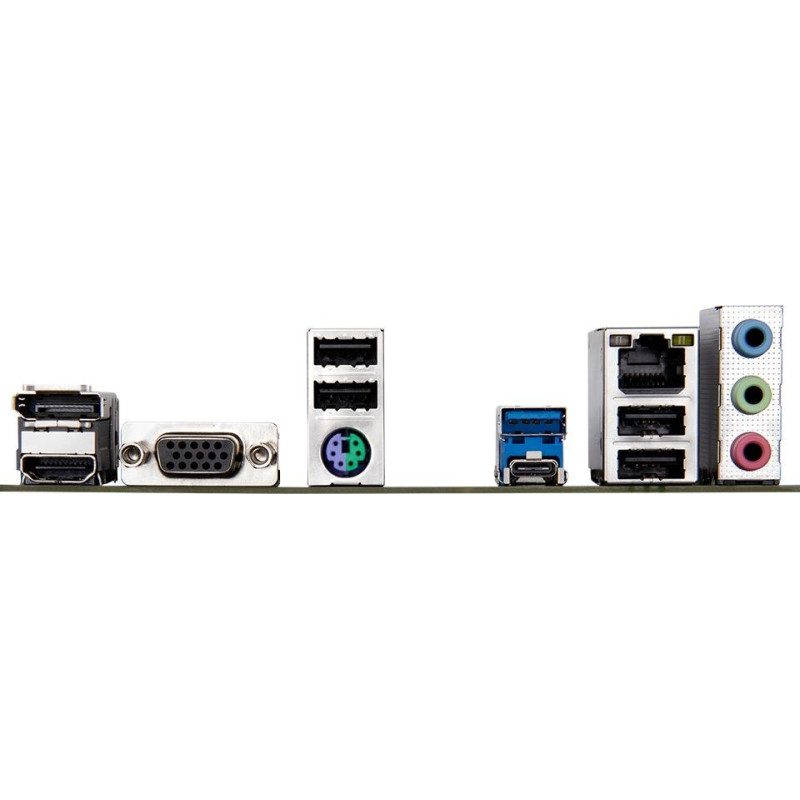

USB connector typeUSB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
VGA (D-Sub) ports quantity1
DisplayPort version1.4
HDMI version2.1
Number of audio jack connectors3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
PS/2 ports quantity1
Ethernet LAN (RJ-45) ports1
Headphone outputs3
HDMI ports quantity1
USB 2.0 ports quantity4
DisplayPorts quantity1
PCI Express x16 slots1
Number of M.2 (M) slots1
PCI Express x1 slots1
Battery typeCR2032
Battery weight3 g
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Number of battery cells1
Lithium weight per battery0.07 g
