Home Computers and equipment Computer components Motherboard Gigabyte B650E AORUS ELITE X AX ICE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2

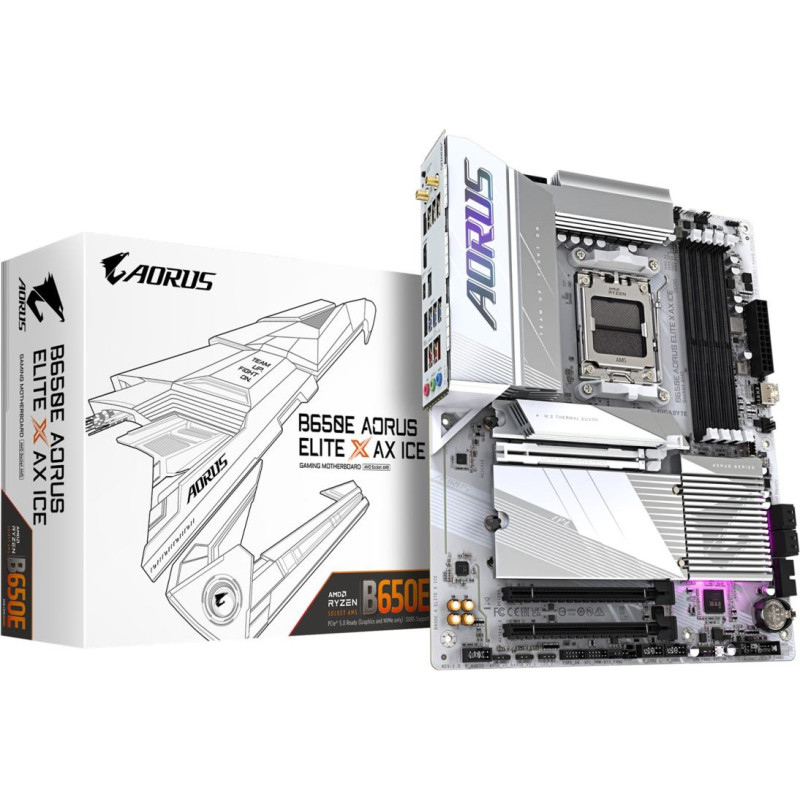

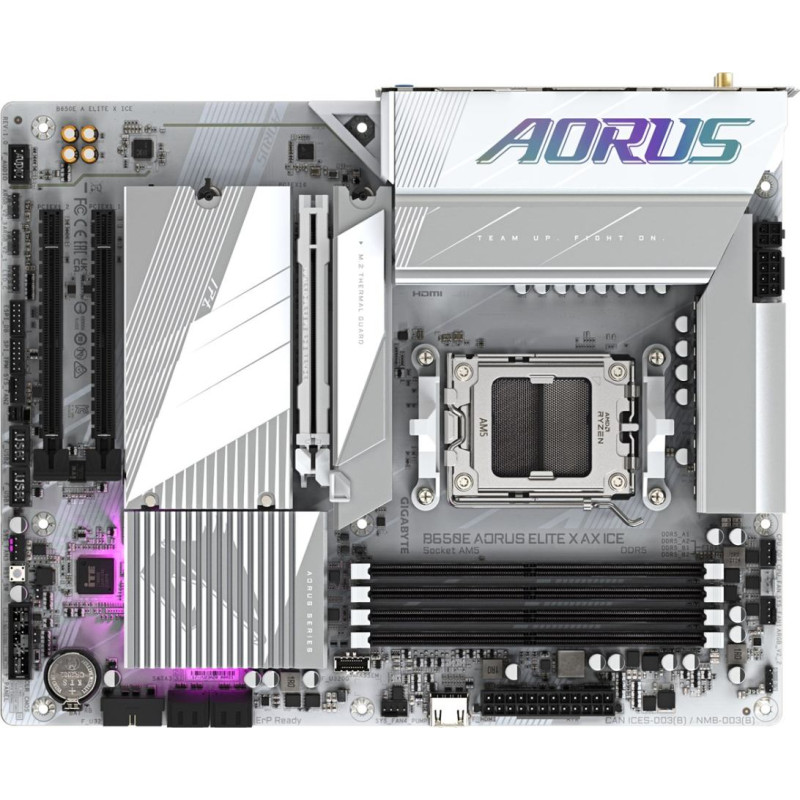

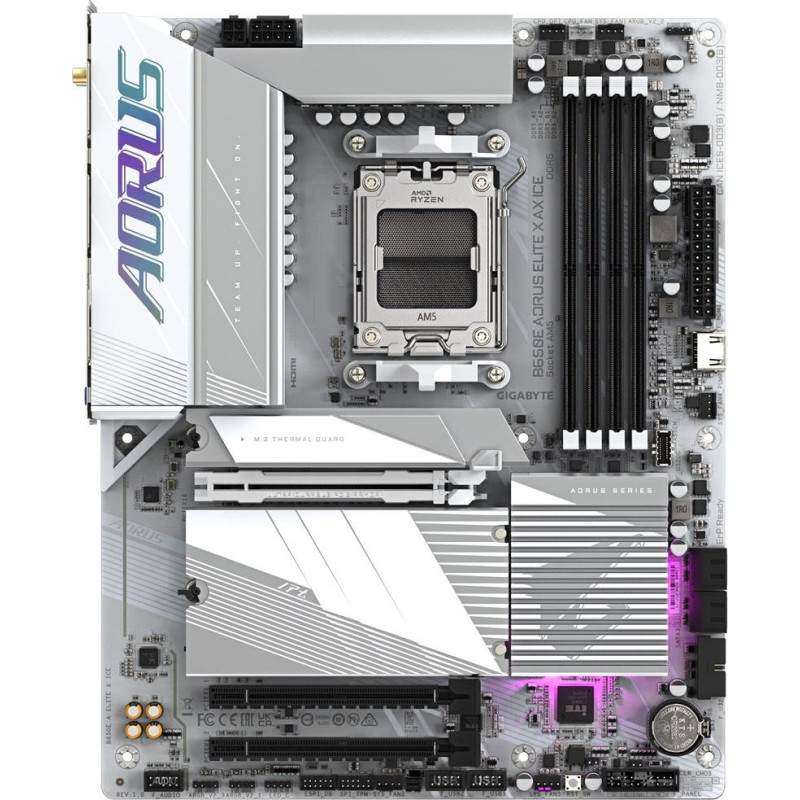

Gigabyte B650E AORUS ELITE X AX ICE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2

Gigabyte B650E AORUS ELITE X AX ICE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2

Delivery to the store takes 3 - 7 business days.
ID: 96979
Product Code: B650E AORUS ELITE X AX ICE
Barcode 4719331860554
199.80€
(Ex Tax: 161.13€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Compatible processor seriesAMD Ryzen 9000 Series
Processor socketSocket AM5
Processor manufacturerAMD
Supported processor socketsSocket AM5
DirectX version12.0
Maximum resolution4096 x 2160 pixels
HDCPYes
Parallel processing technology supportNot supported
Product colourWhite
Motherboard chipsetAMD B650
Windows operating systems supportedWindows 11 x64
PC health monitoringWater cooling
Power source typeATX
Audio output channels7.1 channels
Audio chipRealtek ALC897
Motherboard chipset familyAMD
Motherboard form factorATX
Supported memory clock speed (max)8000 MHz
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Maximum internal memory per slot64 GB
Supported memory clock speeds6200
Maximum internal memory256 GB
Unbuffered memoryYes
Depth244 mm
Width305 mm
Height35 mm
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11g
Wi-FiYes
WLAN controller modelRealtek RTL8852CE
Ethernet LANYes
Bluetooth version5.3
Ethernet interface type2.5 Gigabit Ethernet
BluetoothYes
LAN controllerRealtek RTL8125
TPM connectorYes
12V power connectorYes
RGB LED pin headerYes
Number of CPU fan connectors2
USB 3.2 Gen 2x2 connectors1
Number of EPS power connectors (8-pin)1
Number of water pump connectors2
Number of RGB LED pin headers4
ATX Power connector (24-pin)Yes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
EPS power connector (8-pin)Yes
Number of SATA III connectors4
Number of chassis fan connectors4
CPU fan connectorYes
Front panel audio connectorYes
Front panel connectorYes
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
BIOS typeUEFI AMI
Package depth270 mm
Package height80 mm
Package weight2.45 kg
Package width335 mm
Bundled softwareNorton Internet Security (OEM version) LAN bandwidth management software
Batteries includedYes
Antenna includedYes
Screws includedYes
Number of HDDs supported3
Number of storage drives supported7
RAID levels10
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Microphone inYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
WiFi-AP antenna jack2
Headphone outputs1
HDMI version2.1
Line-inYes
DisplayPort version1.4
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity4
PCI Express x16 (Gen 5.x) slots1
2nd M.2 largest key size22110
3rd M.2 highest PCI Express generation4.0
2nd M.2 highest PCI Express generation4.0
1st M.2 largest key size25110
3rd M.2 largest key size22110
1st M.2 highest PCI Express generation5.0
Number of M.2 (M) slots3
PCI Express x16 (Gen 3.x) slots2
Battery typeCR2032
Battery weight3 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery0.07 g
Products per shipping (inner) case1 pc(s)
Country of originChina
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
