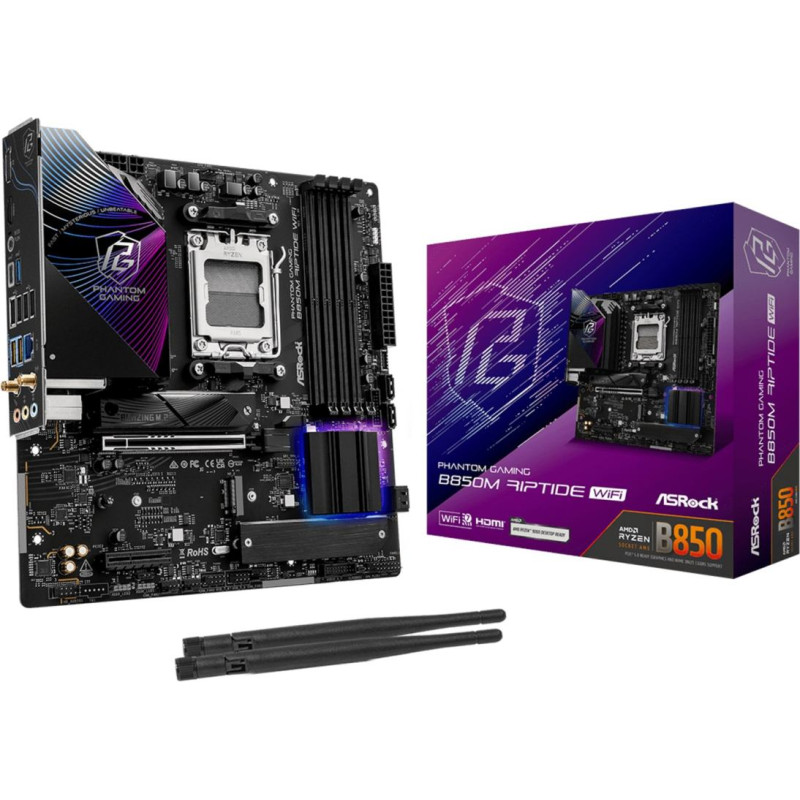

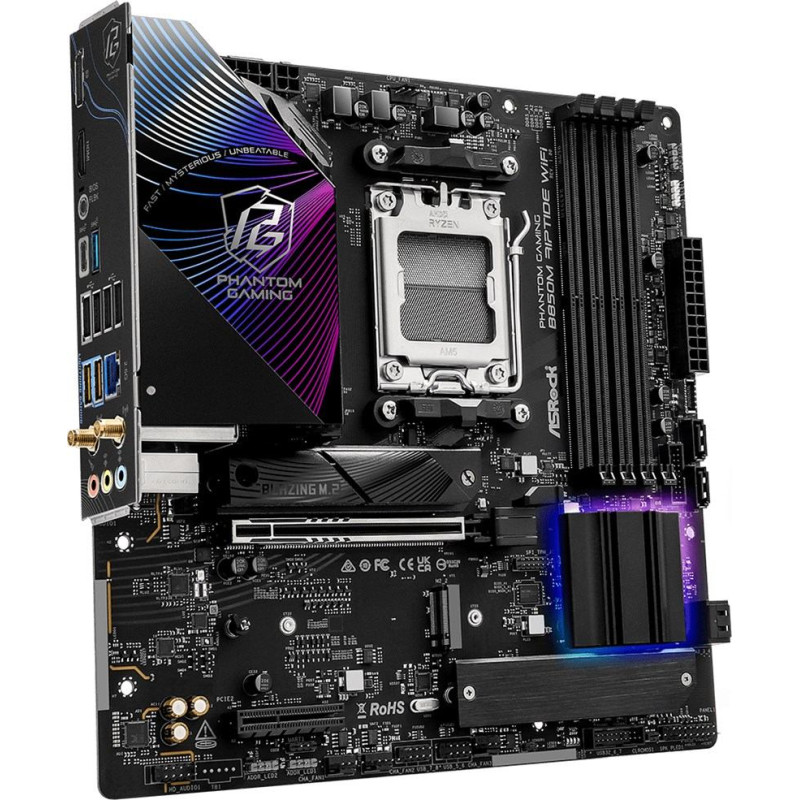

Asrock Phantom Gaming B850M Riptide WiFi AMD B850 Socket AM5 micro ATX

Asrock Phantom Gaming B850M Riptide WiFi AMD B850 Socket AM5 micro ATX

Availability: Delivery to the store takes 3 - 7 business days.
ID: 96988
Product Code: B850M RIPTIDE WIFI
Barcode 4711581490482
177.05€
(Ex Tax: 142.78€)
Payment options

Delivery options

omniva  venipak



Description
Description
Compatible processor seriesAMD Ryzen 8000 Series
Supported processor socketsSocket AM5
Processor manufacturerAMD
Processor socketSocket AM5
HDCPYes
Maximum resolution3840 x 2160 pixels
Parallel processing technology supportNot supported
CertificationFCC, CE, ErP/EuP
Motherboard chipset familyAMD
Product colourBlack
Audio output channels7.1 channels
Audio chipRealtek ALC1220
Motherboard chipsetAMD B850
Motherboard form factormicro ATX
Windows operating systems supportedWindows 11 x64
ECC сompatibilityECC & Non-ECC
Maximum internal memory256 GB
Unbuffered memoryYes
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory channelsDual-channel
Memory slots typeDIMM
Depth244 mm
Width244 mm
BluetoothYes
LAN controllerDragon RTL8125BG
Wi-Fi standardsWi-Fi 4 (802.11n)
Ethernet LANYes
Bluetooth version5.4
Wi-FiYes
Ethernet interface type2.5 Gigabit Ethernet
Top Wi-Fi standardWi-Fi 7 (802.11be)
Front panel audio connectorYes
Number of CPU fan connectors2
Number of RGB LED pin headers1
Number of SATA III connectors4
Number of EPS power connectors (8-pin)1
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
USB 2.0 connectors2
ATX Power connector (24-pin)Yes
12V power connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
CPU fan connectorYes
RGB LED pin headerYes
Number of chassis fan connectors3
BIOS typeUEFI AMI
M.2 standoff includedYes
Antenna includedYes
Cables includedSATA
Screws includedYes
RAID levels1
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive typesHDD & SSD
RAID supportYes
Number of storage drives supported7

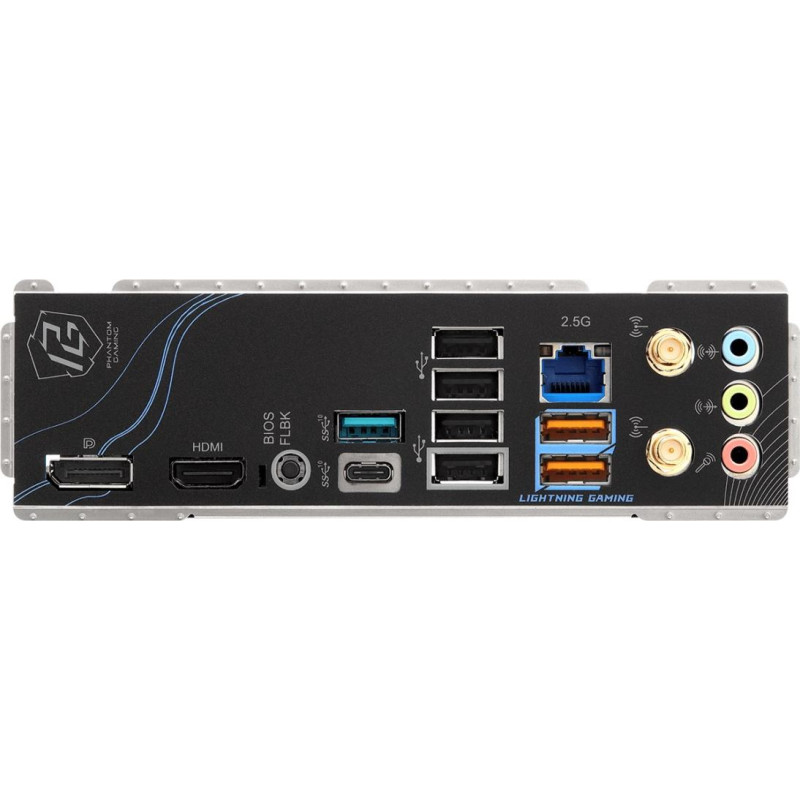

DisplayPorts quantity1
USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
USB connector typeUSB Type-C
DisplayPort version1.4
WiFi-AP antenna jack2
HDMI version2.1
Microphone inYes
Headphone outputs3
Line-inYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
HDMI ports quantity1
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size2280
PCI Express x8 (Gen 4.x) slots1
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3
1st M.2 largest key size2580
WarningsAvoid contact with liquids to prevent electronic damage.
