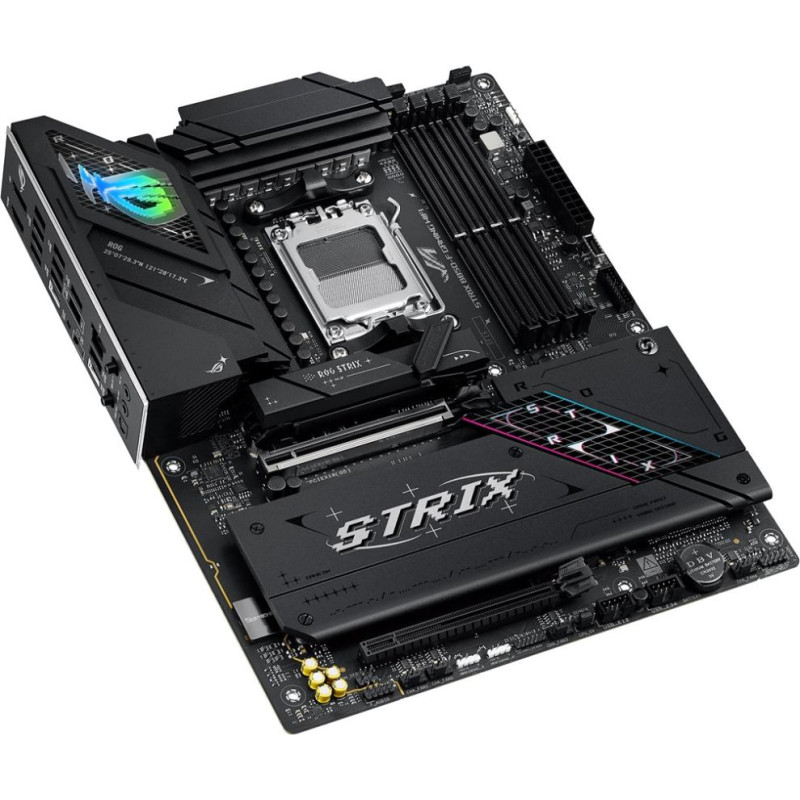

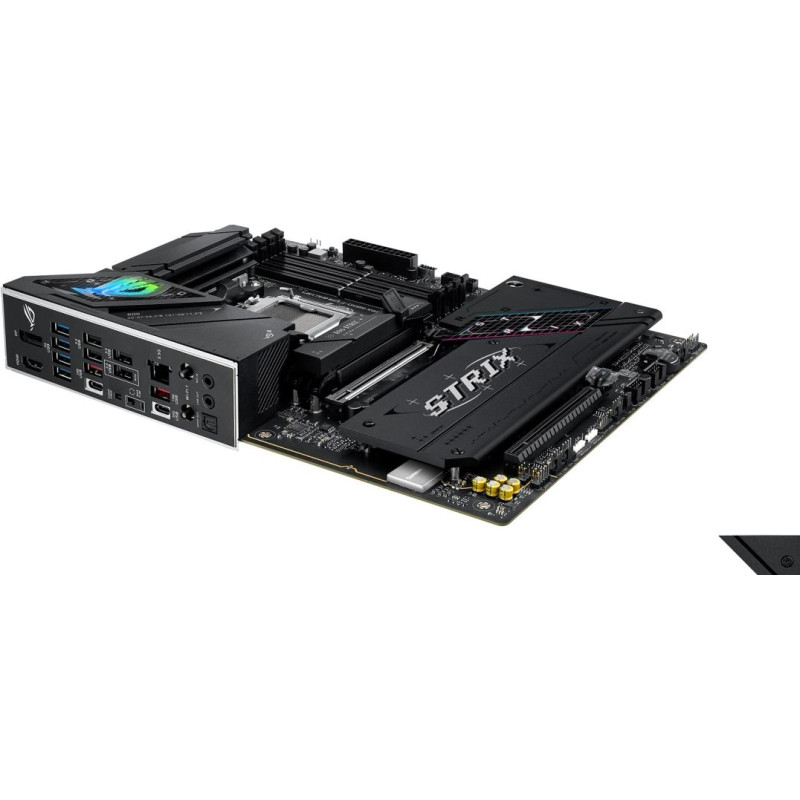

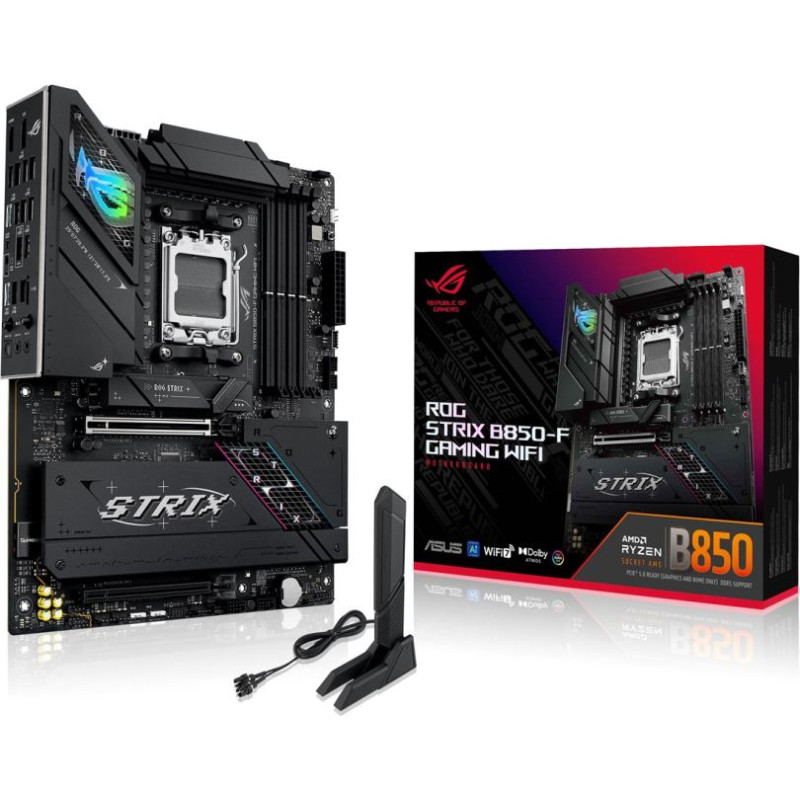

Asus ROG STRIX B850-F GAMING WIFI AMD B850 socket AM5 ATX motherboard

Asus ROG STRIX B850-F GAMING WIFI AMD B850 socket AM5 ATX motherboard

Availability: Delivery to the store takes 3 - 7 business days.
ID: 97020
Product Code: 90MB1J70-M0EAY0
Barcode 4711387771013
308.48€
(Ex Tax: 248.78€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsSocket AM5
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 9000 Series
Processor manufacturerAMD
On-board graphics cardNo
Maximum resolution7680 x 4320 pixels
Parallel processing technology supportNot supported
Motherboard chipset familyAMD
Windows operating systems supportedWindows 11
Audio chipRealtek ALC4080
Power source typeATX
Audio output channels7.1 channels
Motherboard chipsetAMD B850
Product colourBlack
Motherboard form factorATX
Maximum internal memory192 GB
Memory slots typeDIMM
Memory channelsDual-channel
Unbuffered memoryYes
ECC сompatibilityECC & Non-ECC
Number of memory slots4
Supported memory clock speed (max)8000 MHz
Supported memory typesDDR5-SDRAM
Width305 mm
Depth244 mm
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Wi-Fi standardsWi-Fi 7 (802.11be)
BluetoothYes
Ethernet LANYes
Bluetooth version5.4
Ethernet interface type2.5 Gigabit Ethernet
ATX Power connector (24-pin)Yes
Number of SATA III connectors2
Front panel connectorYes
RGB LED pin headerYes
USB 2.0 connectors2
EPS power connector (8-pin)Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of RGB LED pin headers3
Thunderbolt headers1
Number of chassis fan connectors4
Number of CPU fan connectors2
CPU fan connectorYes
Number of temperature sensor headers1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Front panel audio connectorYes
Number of EPS power connectors (8-pin)2
Number of water pump connectors1
BIOS typeUEFI AMI
Clear CMOS buttonYes
Package depth273 mm
Package width353 mm
Package weight2.06 kg
Package height68 mm
Cables includedSATA
Antenna includedYes
Supported storage drive interfacesM.2, SATA III
RAID supportYes
Number of HDDs supported2
Supported storage drive typesHDD & SSD
RAID levels10
Number of storage drives supported6
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
DisplayPorts quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
WiFi-AP antenna jack2
HDMI version2.1
USB 3.2 Gen 2x2 Type-C ports quantity1
S/PDIF out portYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
Headphone outputs1
DisplayPort version1.4
Line-inYes
USB 2.0 ports quantity4
Digital audio optical out1
3rd M.2 highest PCI Express generation4.0
2nd M.2 largest key size22110
PCI Express x16 (Gen 5.x) slots1
1st M.2 highest PCI Express generation5.0
4th M.2 largest key size2280
Number of M.2 (M) slots4
PCI Express x16 (Gen 4.x) slots1
4th M.2 highest PCI Express generation4.0
2nd M.2 highest PCI Express generation5.0
3rd M.2 largest key size2280
1st M.2 largest key size2280
Quick installation guideYes
Weight1.63 kg
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
