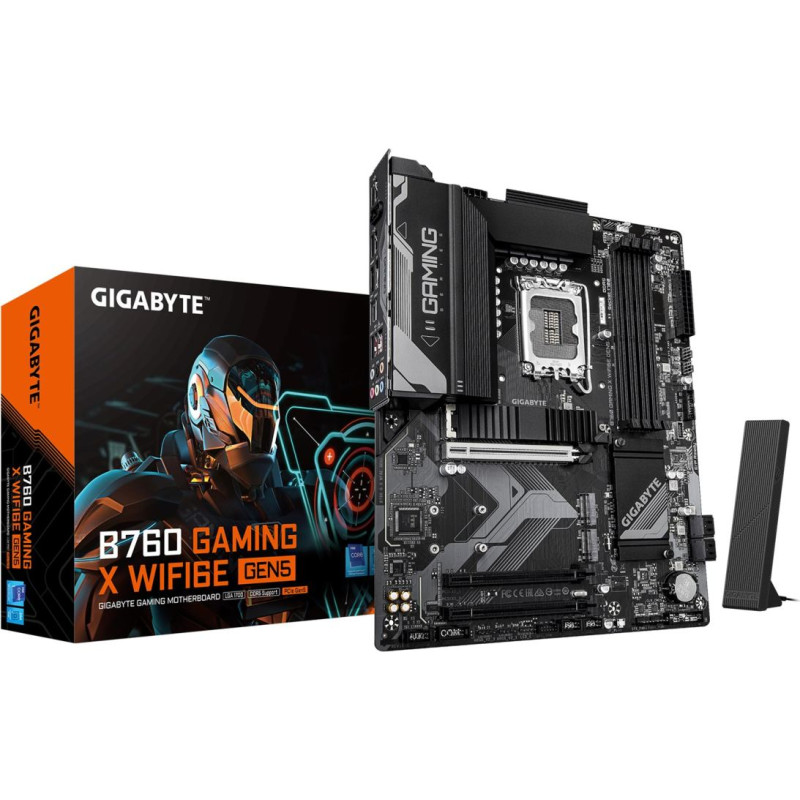

Home Computers and equipment Computer components Motherboard Gigabyte B760 GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2
Gigabyte B760 GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2

GIGABYTE

Gigabyte B760 GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2

Delivery to the store takes 3 - 7 business days.
ID: 98790
Product Code: B760 G X WF6E GEN5
Barcode 4719331871673
147.26€
(Ex Tax: 118.76€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Processor manufacturerIntel
Compatible processor seriesIntel Core i7 13th Gen
Supported processor socketsLGA 1700
Processor socketLGA 1700
HDCPYes
Parallel processing technology supportNot supported
Maximum resolution4096 x 2304 pixels
Windows operating systems supportedWindows 11 x64
PC health monitoringWater cooling
Cooling typePassive
Motherboard form factorATX
Power source typeATX
Motherboard chipsetIntel B760
Product colourDark brown
Audio chipRealtek ALC897
Audio output channels7.1 channels
Motherboard chipset familyIntel
Memory channelsDual-channel
Maximum internal memory per slot64 GB
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speeds7000
Supported memory typesDDR5-SDRAM
Maximum internal memory256 GB
Supported memory clock speed (max)5600 MHz
ECC сompatibilityECC & Non-ECC
Unbuffered memoryYes
Height35 mm
Width305 mm
Depth244 mm
Wi-Fi standardsWi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-FiYes
Bluetooth version5.3
Ethernet interface type2.5 Gigabit Ethernet
WLAN controller modelIntel Wi-Fi 6E AX210
Ethernet LANYes
LAN controllerRealtek RTL8125
BluetoothYes
Front panel audio connectorYes
EPS power connector (8-pin)Yes
Number of water pump connectors2
USB 2.0 connectors4
Serial port headers1
CPU fan connectorYes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
Number of SATA III connectors4
Number of chassis fan connectors4
TPM connectorYes
12V power connectorYes
Front panel connectorYes
RGB LED pin headerYes
S/PDIF out connectorYes
Number of EPS power connectors (8-pin)1
ATX Power connector (24-pin)Yes
Number of RGB LED pin headers4
Number of CPU fan connectors2
BIOS typeUEFI AMI
Desktop Management Interface (DMI) version2.7
Clear CMOS jumperYes
Package depth270 mm
Package width335 mm
Package height80 mm
Package weight1.8 kg
Bundled softwareNorton® Internet Security (OEM version)
Screws includedYes
Antenna includedYes
Batteries includedYes
Number of storage drives supported7
RAID supportYes
Number of HDDs supported4
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
Supported storage drive typesHDD & SSD
DisplayPort version1.2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 2.0 ports quantity5
Microphone inYes
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
DisplayPorts quantity1
HDMI ports quantity1
Headphone outputs1
HDMI version2.1
Line-inYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
WiFi-AP antenna jack2
2nd M.2 highest PCI Express generation4.0
1st M.2 largest key size22110
PCI Express x16 (Gen 3.x) slots2
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size22110
3rd M.2 highest PCI Express generation4.0
3rd M.2 largest key size22110
Battery typeCR2032
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Number of battery cells1
Battery weight3 g
Lithium weight per battery0.07 g
Weight1.61 kg
Products per shipping (inner) case1 pc(s)
Country of originChina
