Home Computers and equipment Computer components Motherboard Asrock B550M Phantom Gaming 4 Socket AM4 micro ATX AMD B550

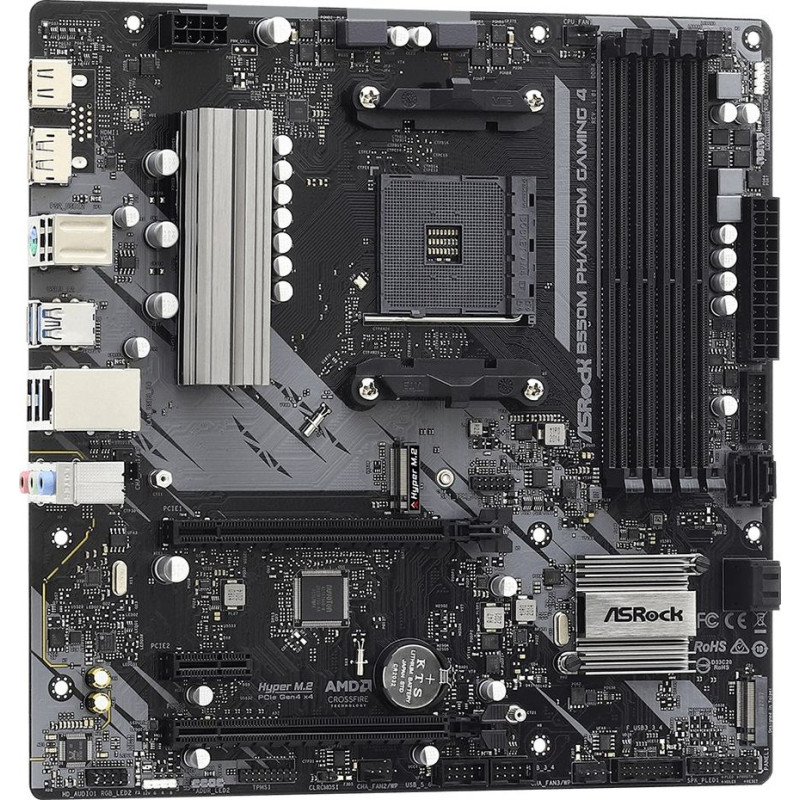

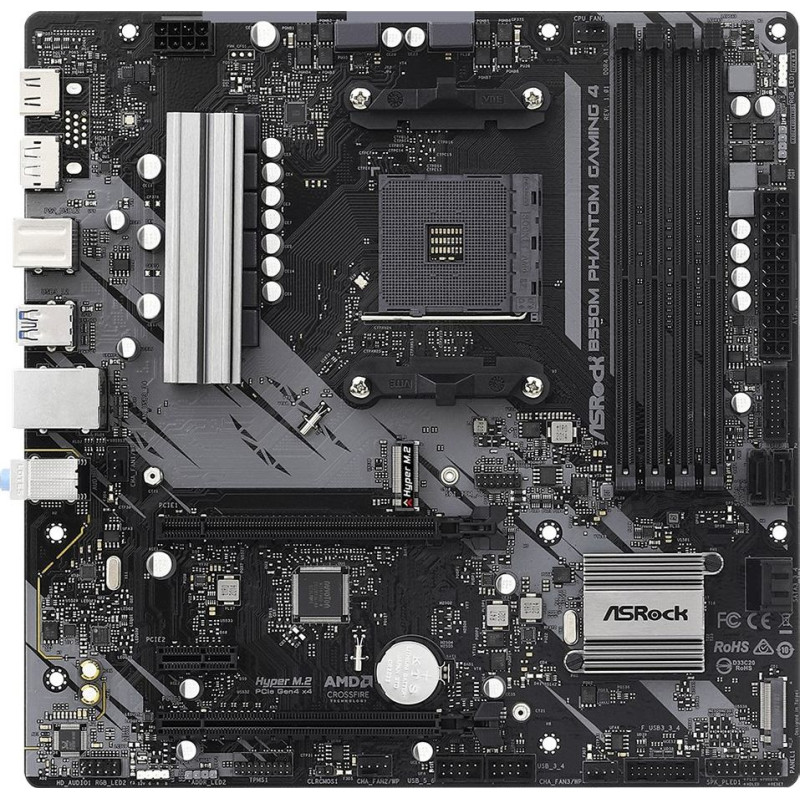

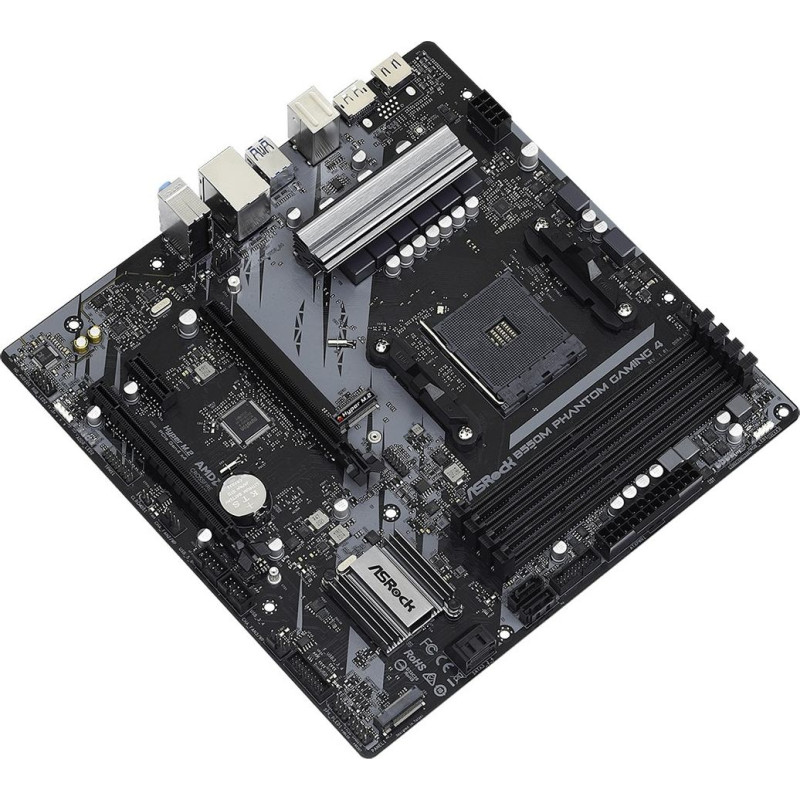

Asrock B550M Phantom Gaming 4 Socket AM4 micro ATX AMD B550

Asrock B550M Phantom Gaming 4 Socket AM4 micro ATX AMD B550

Delivery to the store in 5 to 7 business days.
ID: 167577
Model B550M PHANTOM GAMING 4
Barcode 4710483932755
Brand: ASROCK
83.26€
(Ex Tax: 67.14€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketSocket AM4
Maximum number of SMP processors1
Compatible processor seriesAMD Ryzen™ 7
Processor manufacturerAMD
DirectX version12.0
HDCPYes
Maximum resolution5120 x 2880 pixels
Overclocking featuresFCC, CE ErP/EuP
Motherboard chipsetAMD B550
Motherboard chipset familyAMD
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 x64
Motherboard form factormicro ATX
PC health monitoringFan
Supported memory clock speeds4333
Maximum internal memory128 GB
Unbuffered memoryYes
Memory channelsDual-channel
Memory slots typeDIMM
Supported memory typesDDR4-SDRAM
Number of memory slots4
Depth244 mm
Width244 mm
LAN controllerRealtek RTL8111H
Wake-on-LAN readyYes
Ethernet LANYes
Wi-FiNo
Ethernet interface typeGigabit Ethernet
Front panel audio connectorYes
Number of SATA III connectors4
TPM connectorYes
CPU fan connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
ATX Power connector (24-pin)Yes
RGB LED pin headerYes
12V power connectorYes
Number of chassis fan connectors3
USB 2.0 connectors2
BIOS typeUEFI AMI
Drivers includedYes
Cables includedSATA
Supported storage drive interfacesSerial ATA III
Supported storage drive typesHDD & SSD
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
HDMI version2.1
USB 2.0 ports quantity2
DisplayPort version1.4
DisplayPorts quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
PCI Express x16 (Gen 3.x) slots3
PCI Express x1 (Gen 3.x) slots1
Number of M.2 (M) slots1
WarningsAvoid direct contact with sensitive electronic components.
