Home Computers and equipment Computer components Motherboard Asrock B650D4U-2L2T/BCM motherboard AMD B650 Express Socket AM5 micro ATX

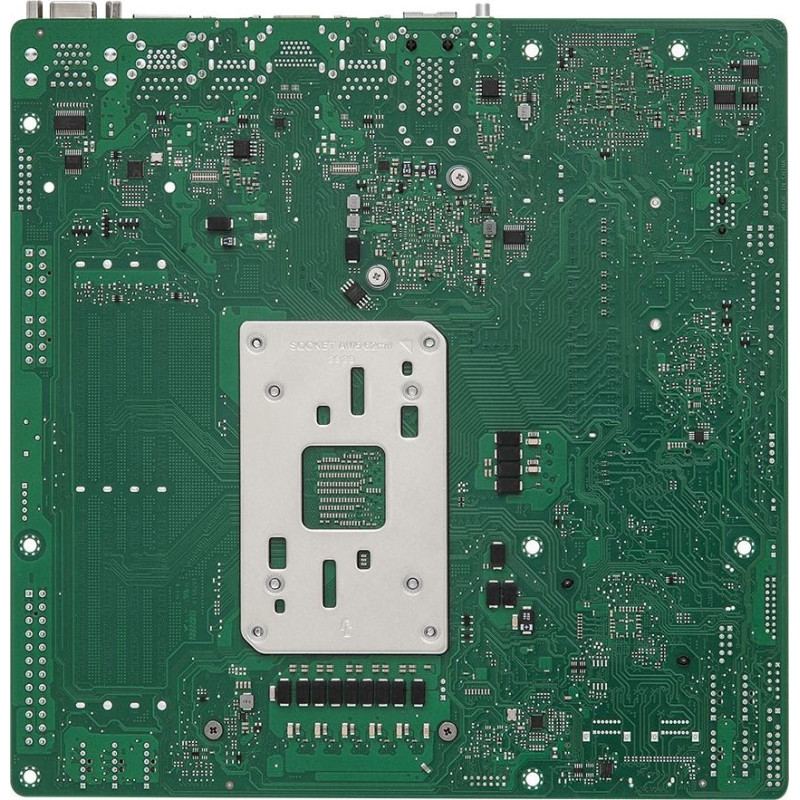

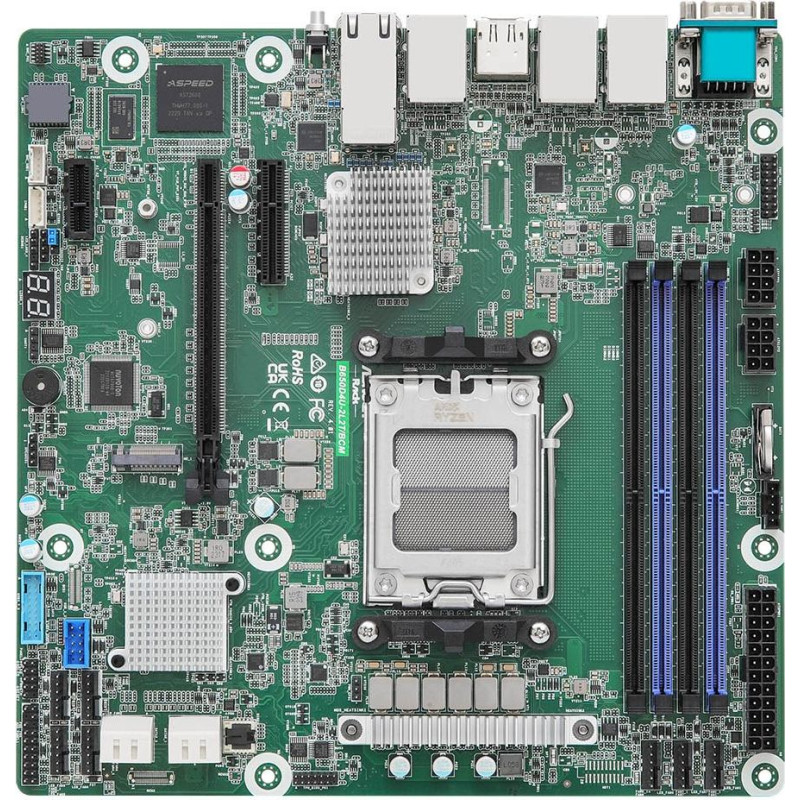

Asrock B650D4U-2L2T/BCM motherboard AMD B650 Express Socket AM5 micro ATX

Asrock B650D4U-2L2T/BCM motherboard AMD B650 Express Socket AM5 micro ATX

Delivery to the store in 5 to 7 business days.
ID: 171974
Model B650D4U-2L2T/BCM
Barcode 4711430520964
Brand: ASROCK
501.89€
(Ex Tax: 404.75€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen™ 3
Maximum number of SMP processors1
Processor socketSocket AM5
On-board graphics card modelAspeed AST2600
Motherboard chipsetAMD B650 Express
PC health monitoringCPU
Motherboard form factormicro ATX
Component forServer
Motherboard chipset familyAMD
Supported memory clock speeds3600
Number of memory slots4
Maximum internal memory32 GB
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Memory voltage1.1 V
ECC сompatibilityECC & Non-ECC
Supported memory clock speed (max)5200 MHz
Operating relative humidity (H-H)20 - 90%
Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-40 - 70 °C
Depth243.8 mm
Width243.8 mm
Ethernet LANYes
Wi-FiNo
EPS power connector (8-pin)Yes
Number of COM connectors1
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
TPM connectorYes
Clear CMOS jumperYes
BIOS typeUEFI AMI
ACPI version6.4
System Management BIOS (SMBIOS) version3.5
BIOS memory size256 Mbit
RAID levels10
Supported storage drive interfacesM.2, SATA III
RAID supportYes
Serial ports quantity1
VGA (D-Sub) ports quantity1
DisplayPorts quantity1
IPMI LAN (RJ-45) portYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
Ethernet LAN (RJ-45) ports4
PCI Express x4 (Gen 4.x) slots1
WarningsUse only in a dry and well-ventilated area.
